AUDAX TOP ErP and Integrated System

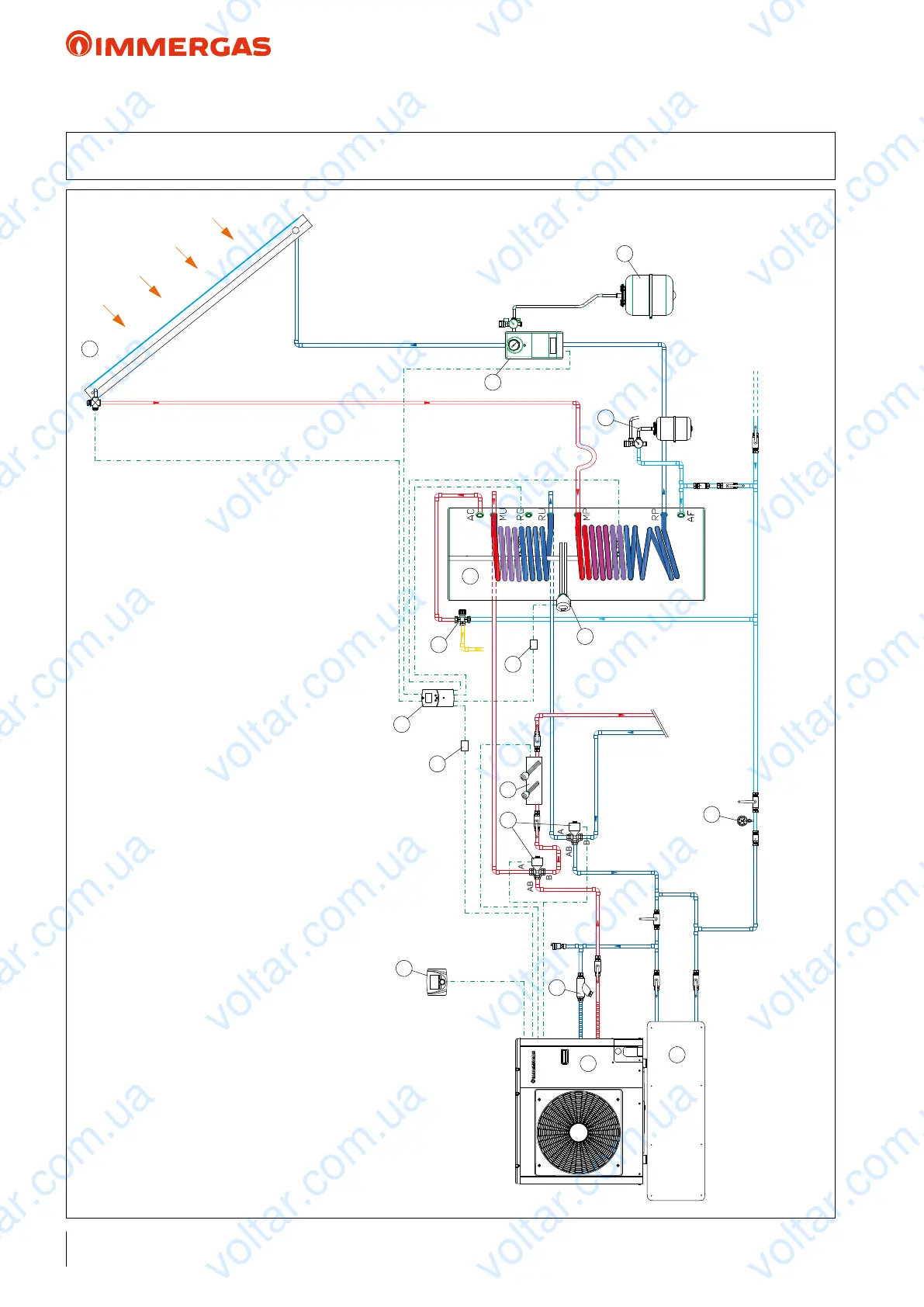

49 HYDRAULIC DIAGRAM: AUDAX TOP ErP + CONTROL PANEL STANDARD

FOR ROOM CONTROL + SOLAR PACK for DHW

KEY:

1 - AUDAX TOP 6/8 ErP

2 - Integrative resistance for heating system kit (selectable powers: 2 - 4 - 6 kW)

3 - M/XL CP4 solar manifold

4 - Double coil storage tank unit

5 - Solar ErP circulation unit with safety valve

6 - Solar expansion vessel

7 - Expansion valve and safety valve for DHW

8 - Integrative resistance for 2 or 5 kW storage tanks

9 - DHW resistance enabling relay

10 - DHW thermostatic mixer

11 - LCD PICTO solar control unit

12 - 3-way diverter kit

13 - Control Panel (standard)

14 - Standard "Y" lter for AUDAX TOP ErP

15 - Inertial storage tank

16 - System pressure gauge (to provide)

17 - DHW request relay active (not included)

NOTE: this diagram is an example. It is also required to convey the heat pump's condensate drain.

In order to guarantee proper Heat Pump operation (also with antifreeze), each system must consider inserting a bypass to guarantee a minimum ow rate of 420 l/h.
