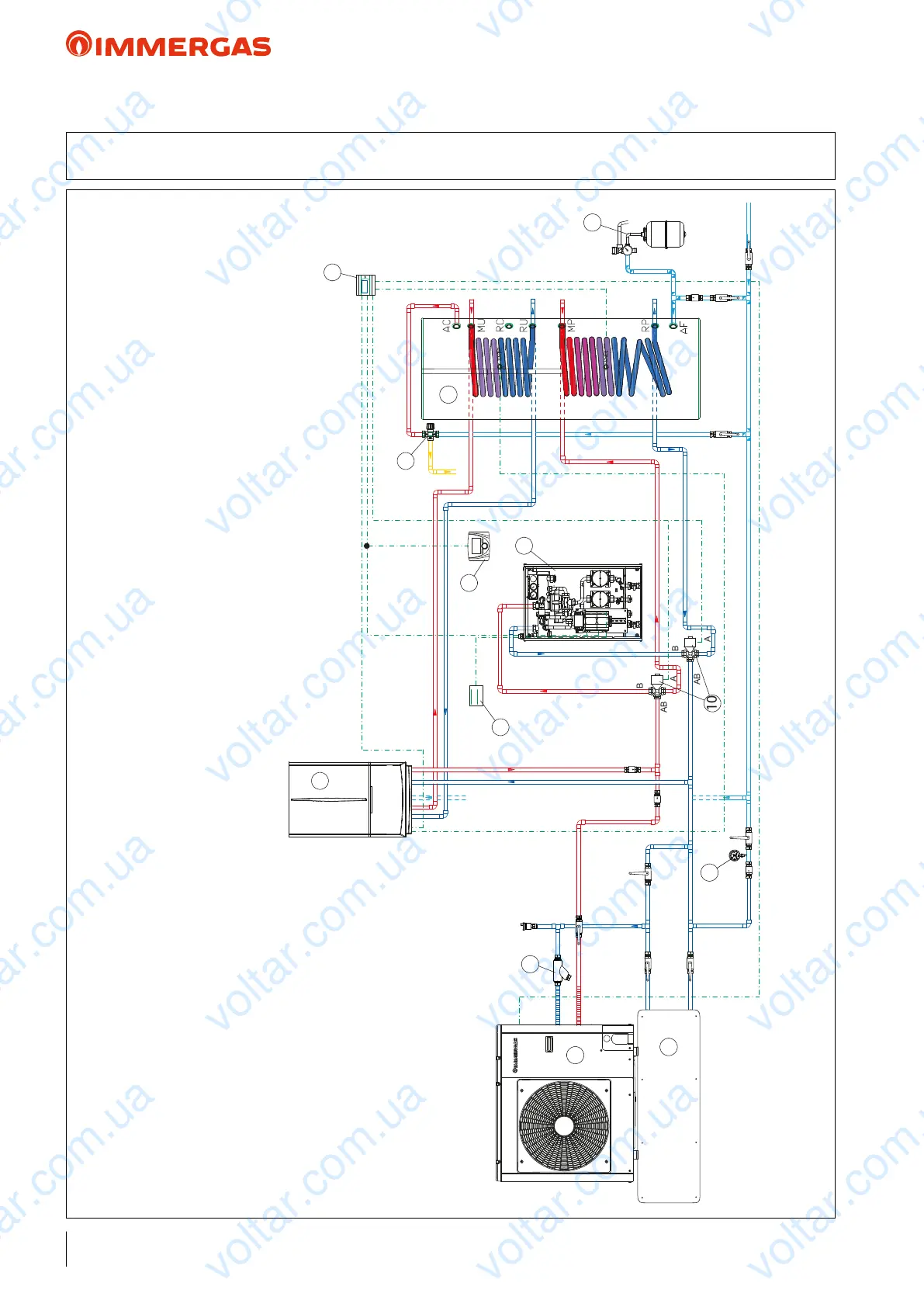

52 HYDRAULIC DIAGRAM: AUDAX TOP ErP + BOILER PLUS and 2 low temperature zones
+ STORAGE TANK UNIT for D.H.W. PRODUCTION + SYSTEM MANAGER
KEY:
1 - AUDAX TOP 6-8 ErP
2 - VICTRIX kW TT PLUS / MAIOR TT PLUS
3 - System Manager
4 - Double coil storage tank unit
5 - Expansion valve and safety valve for DHW
6 - DHW thermostatic mixer
7 - 2 mixed zones kit (including expansion boards for zone management)
8 - Control Panel (standard)
9 - Temperature/humidity sensor
10 - 3-way diverter kit
11 - Inertial storage tank
12 - Standard "Y" lter for AUDAX TOP ErP
13 - System pressure gauge (to provide)
NOTE: this diagram is an example. It is also required to convey the condensate drain of the heat pump and boiler.
In order to guarantee proper Heat Pump operation (also with antifreeze), each system must consider inserting a bypass to guarantee a minimum ow rate of 420 l/h. In this diagram, the bypass is already
installed in the zones kit (7).
