Immergas AUDAX TOP ErP Series User Manual

AUDAX TOP ErP and Integrated System
98
TA on/off
riscaldamento invernale
rarescamento estivo
TA-UM
2
4
5
7
8
AB
9
6
B
A
AB
B
A
1
3
10
11

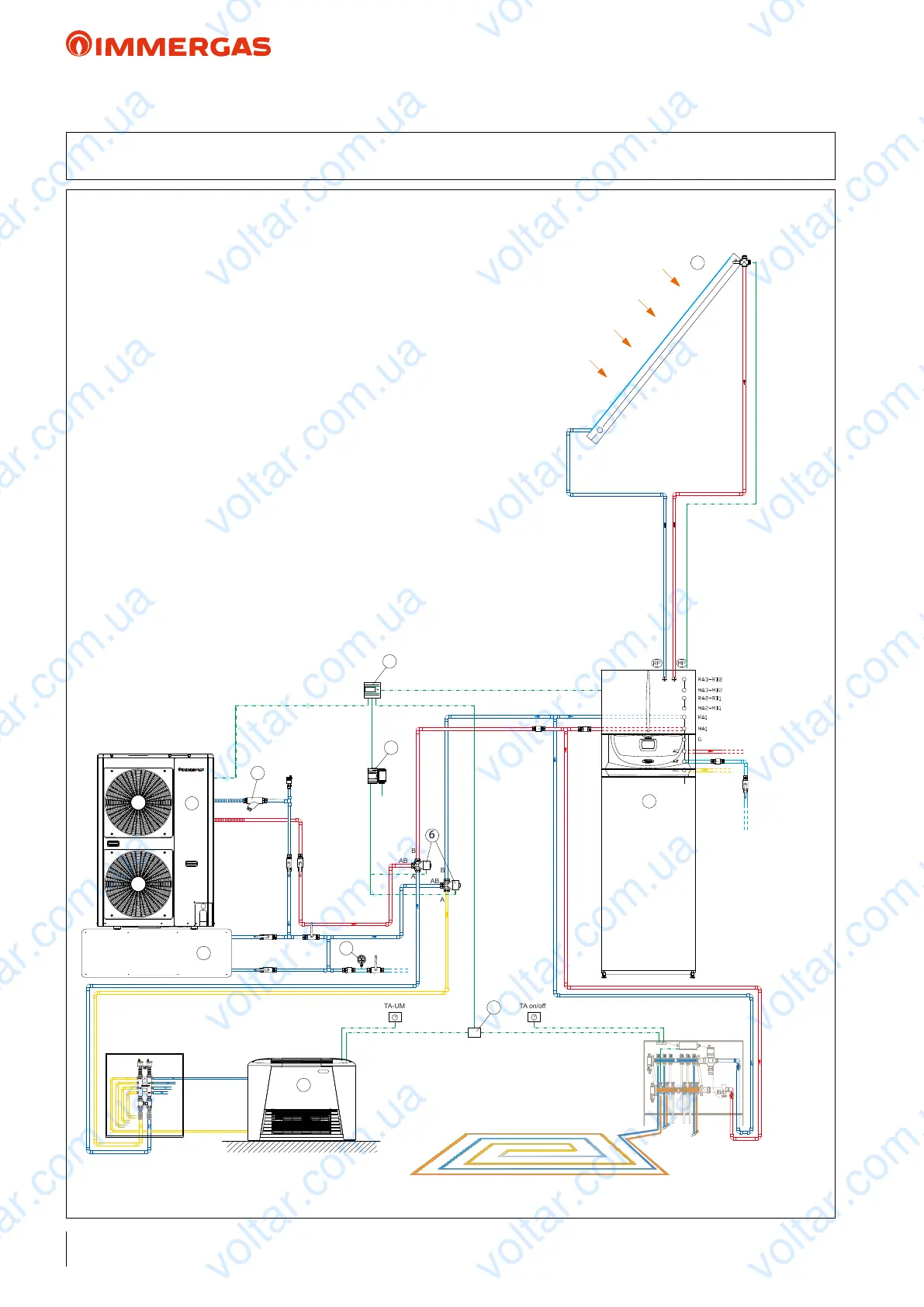

53 HYDRAULIC DIAGRAM: AUDAX TOP ErP air conditioning only + BOILER with Storage Tank
and system separate central heating/cooling + SOLAR HEATING for DHW + SYSTEM MANAGER
NOTE: this diagram is an example. It is also required to convey the condensate drain of the heat pump and boiler. In order to guarantee proper Heat Pump operation (also with antifreeze), each system must consider inserting a bypass to guarantee a minimum ow rate of 420 l/h.
KEY:
1 - AUDAX TOP 12 ErP
2 - HERCULES SOLAR 200 CONDENSING ErP
3 - XL CP4 solar manifold
4 - System Manager
5 - Expansion board with address 5 for winter/summer switch-over
6 - 3-way valve kit for hot/cold system switch-over
7 - Junction box
8 - Fan-coil
9 - Inertial storage tank
10 - Standard "Y" lter for AUDAX TOP ErP
11 - System pressure gauge (to provide)
