AUDAX TOP ErP and Integrated System

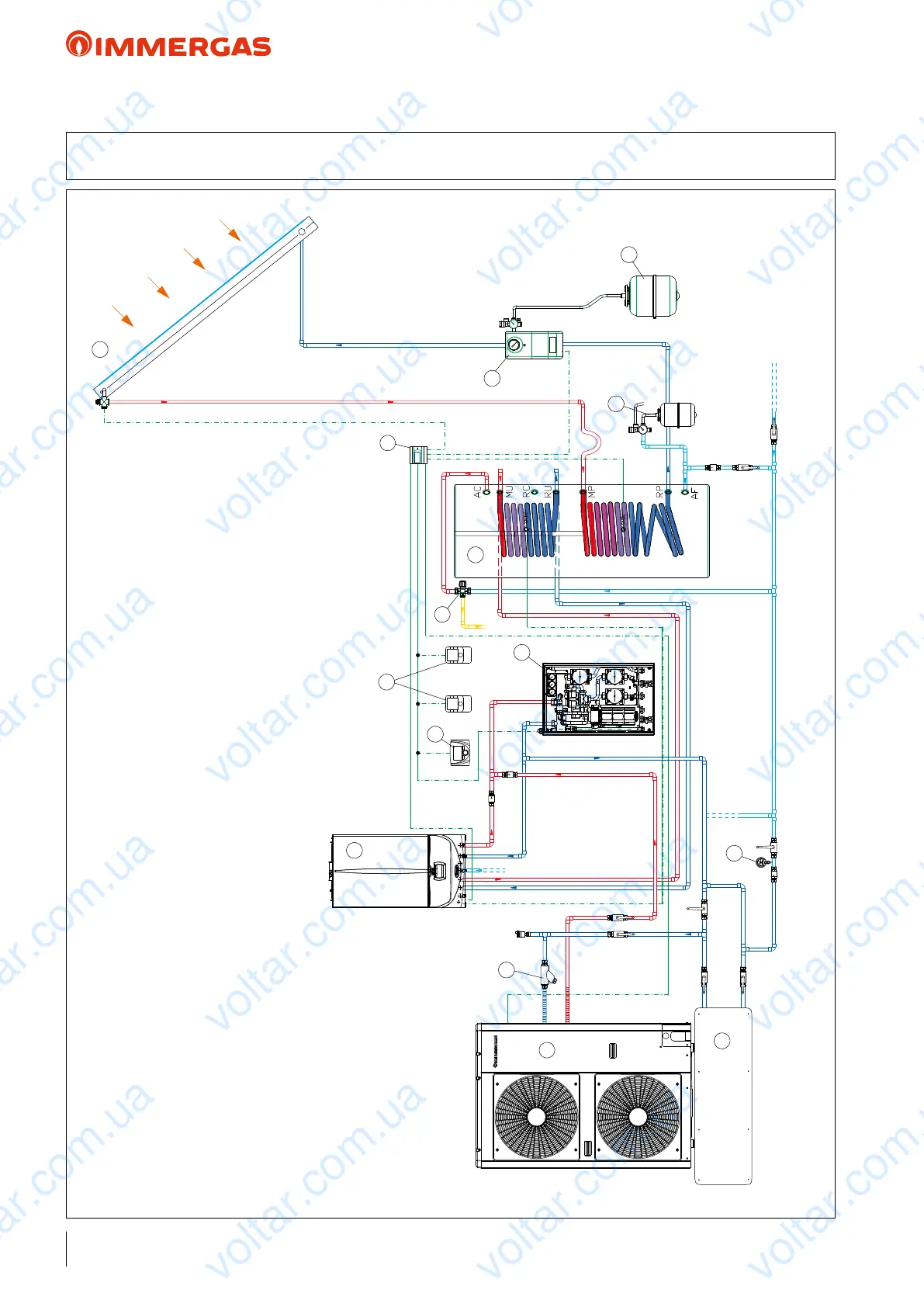

50 HYDRAULIC DIAGRAM: AUDAX TOP ErP air conditioning only) + BOILER PLUS and 2

low temperature zones and 1 direct ZONE + solar heating for DHW + SYSTEM MANAGER

KEY:

1 - AUDAX TOP 12 ErP

2 - VICTRIX SUPERIOR 32 PLUS ErP

3 - XL CP4 solar manifold

4 - Double coil storage tank unit

5 - Solar ErP circulation unit with safety valve

6 - Solar expansion vessel

7 - Expansion valve and safety valve for DHW

8 - 2 mixed zones and 1 direct zone kit (including expansion boards for zone

management)

9 - DHW thermostatic mixer

10 - System Manager

11 - Control Panel (standard)

12 - Standard "Y" lter for AUDAX TOP ErP

13 - Inertial storage tank

14 - Remote zone control

15 - System pressure gauge (to provide)

NOTE: this diagram is an example. It is also required to convey the condensate drain of the heat pump and boiler.

In order to guarantee proper Heat Pump operation (also with antifreeze), each system must consider inserting a bypass to guarantee a minimum ow rate of42 l/h. In this diagram, the bypass is already

installed in the zones kit (8).
