AUDAX TOP ErP

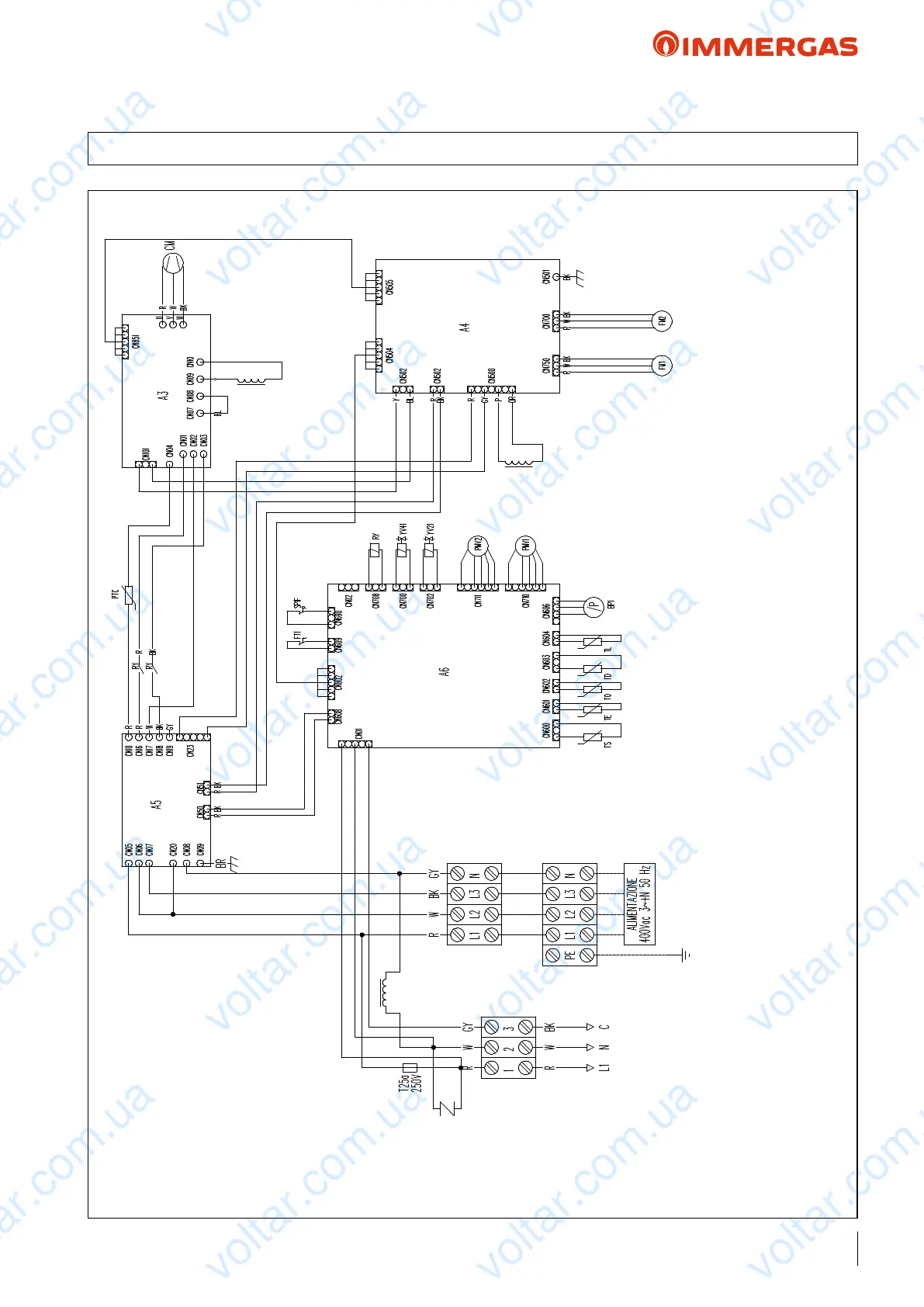

KEY:

A3 - Compressor inverter

A4 - Fans inverter

A5 - Filter

A6 - Interface board

BP1 - Pressure sensor (LP)

CM - Compressor

FM1 - Fan

Wiring colour codes:

BK - Black

BL - Blue

BR - Brown

GY - Grey

Y - Yellow

O - Orange

P - Pink

R - Red

W - White

37 AUDAX TOP 18  21 ErP P.C.B.

FM2 - Fan

FT1 - Compressor safety thermostat

PMV1 - rottle valve control

PMV2 - rottle valve control

(only for 21 kW model)

RY - Relay

SP1F - High pressure switch

TD - Compressor outlet temperature probe

TE - Coil sensor low part

TL - Coil sensor high part

TO - Outdoor temperature sensor

TS - Compressor intake temperature

sensor

YV21 - Central heating solenoid valve

YV41 4-way valve control
