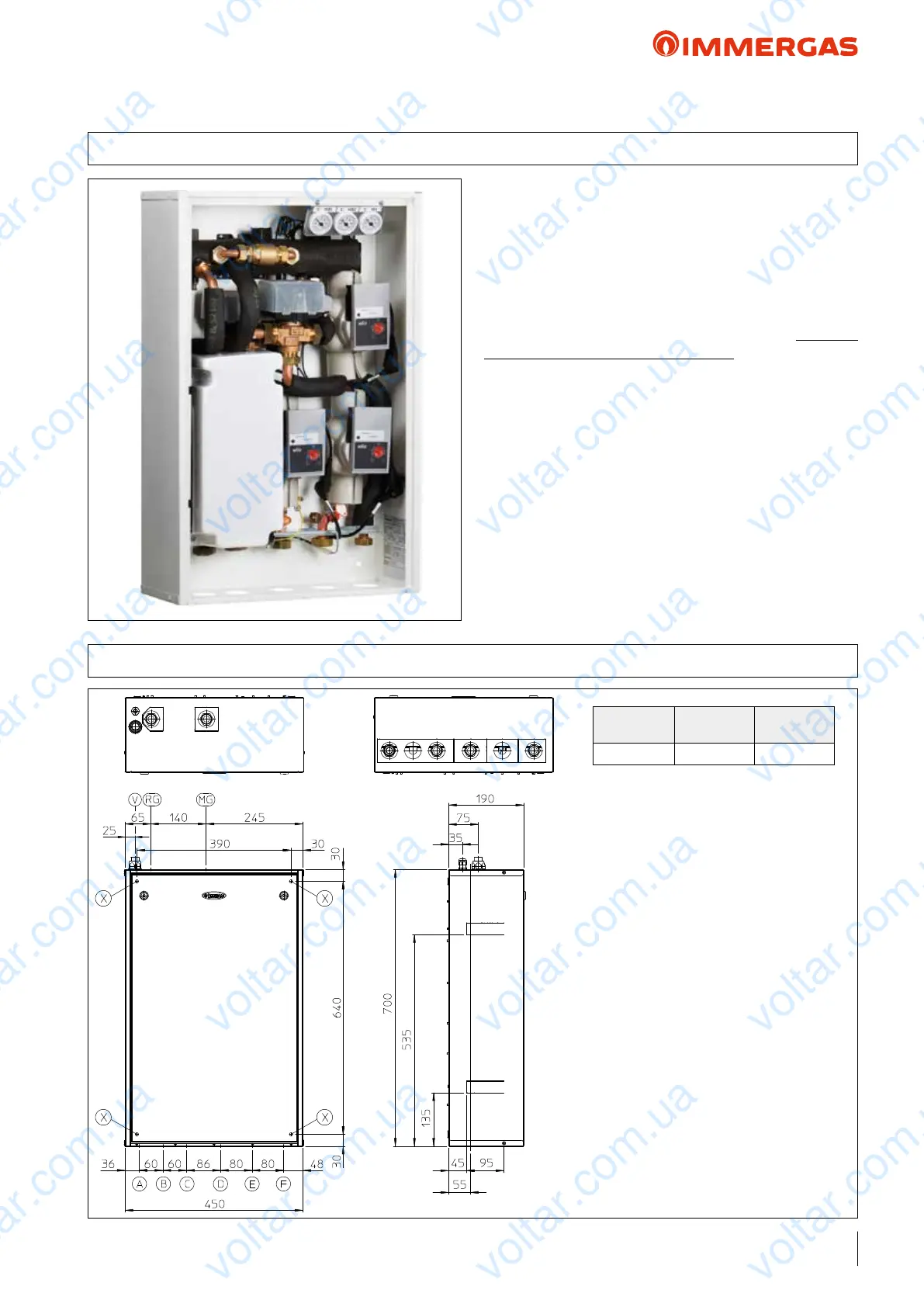

AUDAX TOP ErP and Integrated System

Two pre-packaged systems called: "2 mixed zones kit" and "2

mixed zones and 1 direct zone kit". ey are comprised of

2 separate hydraulic manifolds (ow/return) + by-pass, ther-

mometers to read the temperatures, motorised mixing valves,

low energy consumption electro pumps and expansion boards

for electric management.

e pumps included in the kit are distinguished for being very

elastic, also thanks to the 7 operating curves that can be pre-set.

All parts are already assembled and ready for operation exclusively

in combination with the System Manager. With the aid of the

expansions the 2 kits are governed by the System Manager during

the central heating and cooling phases.

Acquisition of the outdoor temperature from system Manager en-

ables you to select independent ow temperature curves for each

of the 2 or 3 zones of the system (both with C.H. and cooling).

Inserting these kits into the technological system enhance overall

comfort and energy savings.

45.1 DIMENSIONS AND CONNECTIONS

KEY:

RG - Generator return (G 3/4”)

MG - Generator ow (G 3/4”)

V - Electrical connection

X - Holes for wall-mounted installation of the kit

• 2 MIXED ZONES AND 1 DIRECT ZONE KIT

code 3.021527

A - Zone return 3 (G 3/4”)

B - Zone return 1 (G 3/4”)

C - Zone return 2 (G 3/4”)

D - Zone ow 1 (G 3/4”)

E - Zone ow 2 (G 3/4”)

F - Zone ow 3 (G 3/4”)

• MIXED ZONES 2 KIT

code 3.021528

B - Zone return 1 (G 3/4”)

C - Zone return 2 (G 3/4”)

D - Zone ow 1 (G 3/4”)

E - Zone ow 2 (G 3/4”)

45 SYSTEM DISTRIBUTION KIT

Height

(mm)

Width

(mm)

Depth

(mm)

700 450 190
