AUDAX TOP ErP and Integrated System
94
2
8
9
13
10
11
12
15
14
7
18
17
3
5
6
4
AB
B
A
AB
B
A
16
1

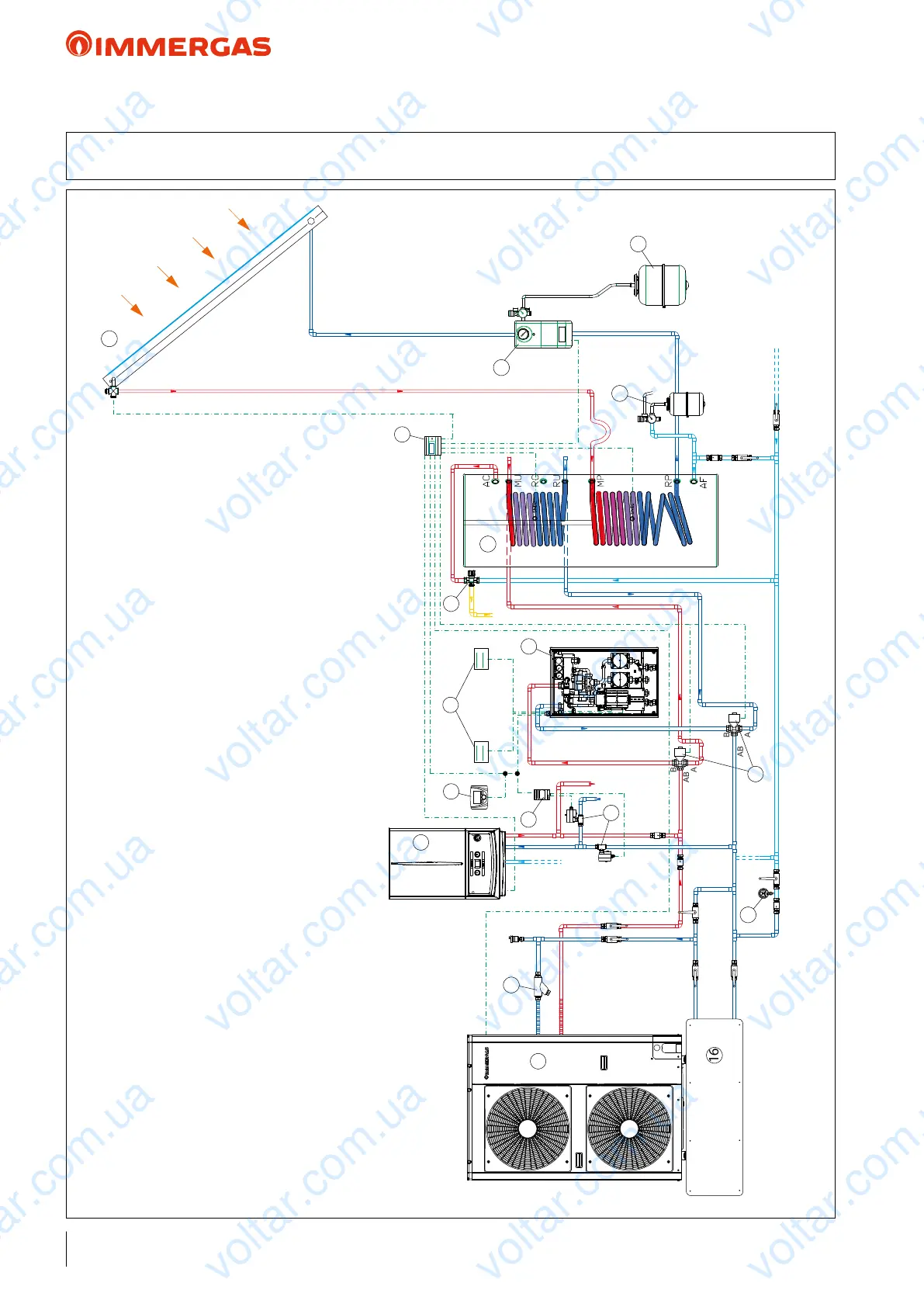

51 HYDRAULIC DIAGRAM: AUDAX TOP ErP + BOILER with 1 high temperature zone + 2
low temperature zones + SOLAR HEATING for D.H.W. PRODUCTION + SYSTEM MANAGER
KEY:
1 - AUDAX TOP 12 ErP
2 - VICTRIX TT / MAIOR TT / kW TT PLUS / MAIOR TT PLUS
3 - M/XL CP4 solar manifold
4 - Double coil storage tank unit
5 - Solar ErP circulation unit with safety valve
6 - Solar expansion vessel
7 - Expansion valve and safety valve for DHW
8 - 2 mixed zones kit (including expansion boards for zone management)
9 - DHW thermostatic mixer
10 - System Manager
11 - Temperature/humidity sensor
12 - Control Panel (standard)
13 - Expansion panel with address 4 to manage the high temperature zone
14 - Zone solenoid valve
15 - 3-way diverter kit
16 - Inertial storage tank
17 - Standard "Y" lter for AUDAX TOP ErP
18 - System pressure gauge (to provide)
NOTE: this diagram is an example. It is also required to convey the condensate drain of the heat pump and boiler.
In order to guarantee proper Heat Pump operation (also with antifreeze), each system must consider inserting a bypass to guarantee a minimum ow rate of42 l/h. In this diagram, the bypass is already
installed in the zones kit (8).
