AUDAX TOP ErP and Integrated System

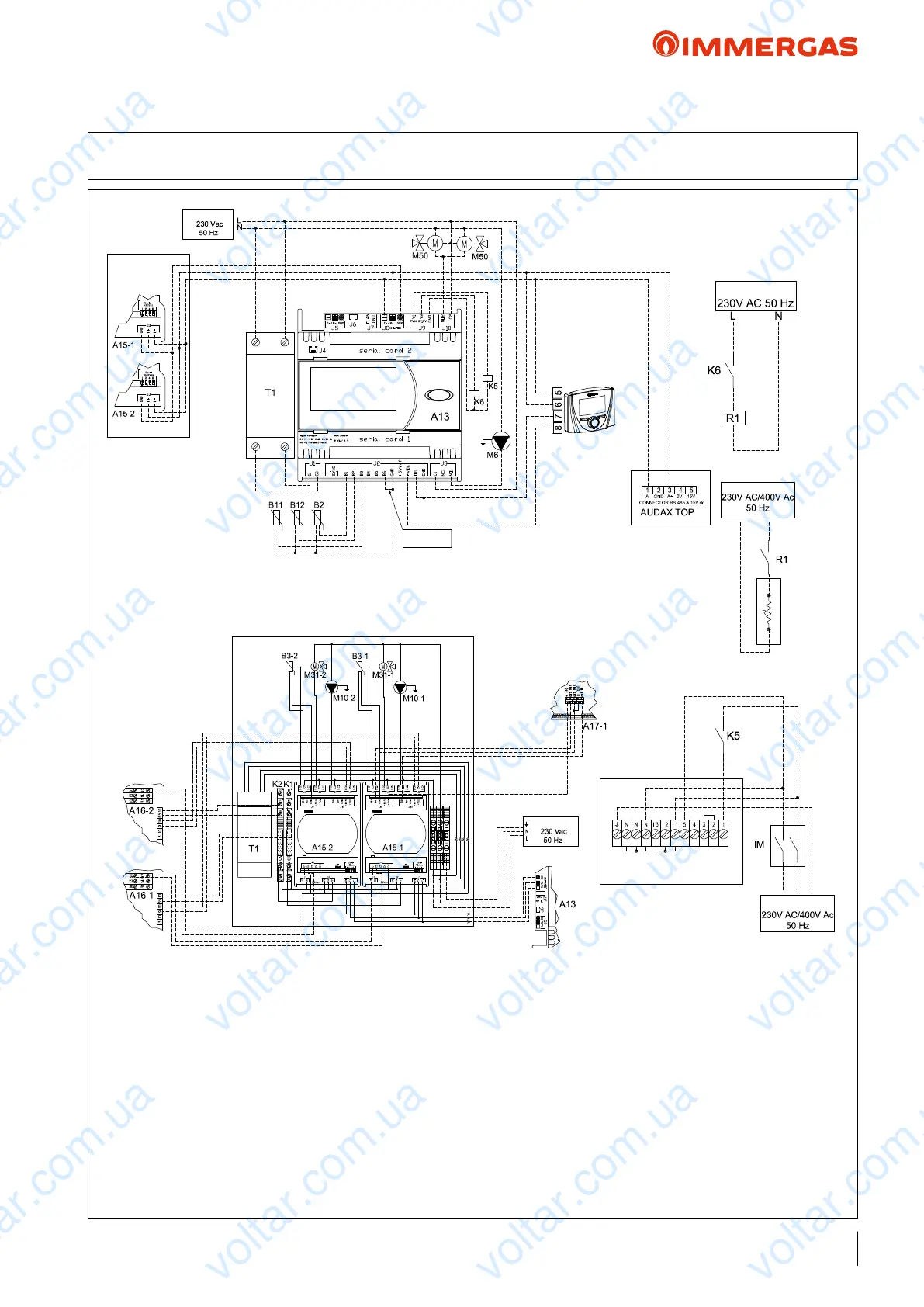

48.1 WIRING DIAGRAM: AUDAX TOP ErP and 2 low temperature zones

+ SOLAR HEATING for DHW + SYSTEM MANAGER

KEY:

A13 - System Manager

A15-1 - L.T. zone expansion 1

A15-2 - L.T. zone expansion 2

B2 - Storage tank upper part temp. probe (NTC)

B11 - Solar manifold probe (PT1000)

B12 - Storage tank lower part temp. probe (NTC)

K5 - System integrative resistance enabling relay

(abbreviation SSR 6 Vdc code: 3.023946)

K6 - DHW integrative resistance enabling relay

(abbreviation EMR 12 Vdc code: 3.023945)

M6 - Solar ErP circulation group

M50 - DHW priority 3-way valve

T1 - 24 Vac transformer (not supplied with the

system Manager - standard with the distribution kit)

A16-1 - Zone 1 dehumidier (possible)

A16-1 - Zone 2 dehumidier (possible)

A17-1 - Zone 1 temperature/humidity sensor

B3-1 - Zone 1 ow temperature probe

B3-2 - Zone 2 ow temperature probe

K2 - Zone 1 cooling enabling

K2 - Zone 2 cooling enabling

R1 - DHW resistance enabling relay

M10-1 - Zone 1 pump

M10-2 - Zone 2 pump

M31-1 - Mixing zone 1

M31-2 - Zone 2 mixer

NOTE: with this setting, the Control Panel (standard supply with

AUDAX TOP ErP) is used as a Room Probe in the mixed zone 2.

Power supply

ZONE KIT

Power supply

Control Panel

Boiler alarm

input

Power supply

D.H.W. integrative

electric resistance kit

C.H. integrative electric

resistance kit

TEMP./HUMIDITY

SENSOR KIT

DEHUMIDIFIER KIT

Purple

Green

Orange

Grey

Orange

Grey

Brown

Black

Grey

Black

OrangeOrange

Black

Red

Blue

Black

Red

White

Light Blue

DEHUMIDIFIER KIT

MIXED ZONES 2 KIT

ZONE 2 ZONE 1
