AUDAX TOP ErP and Integrated System

103

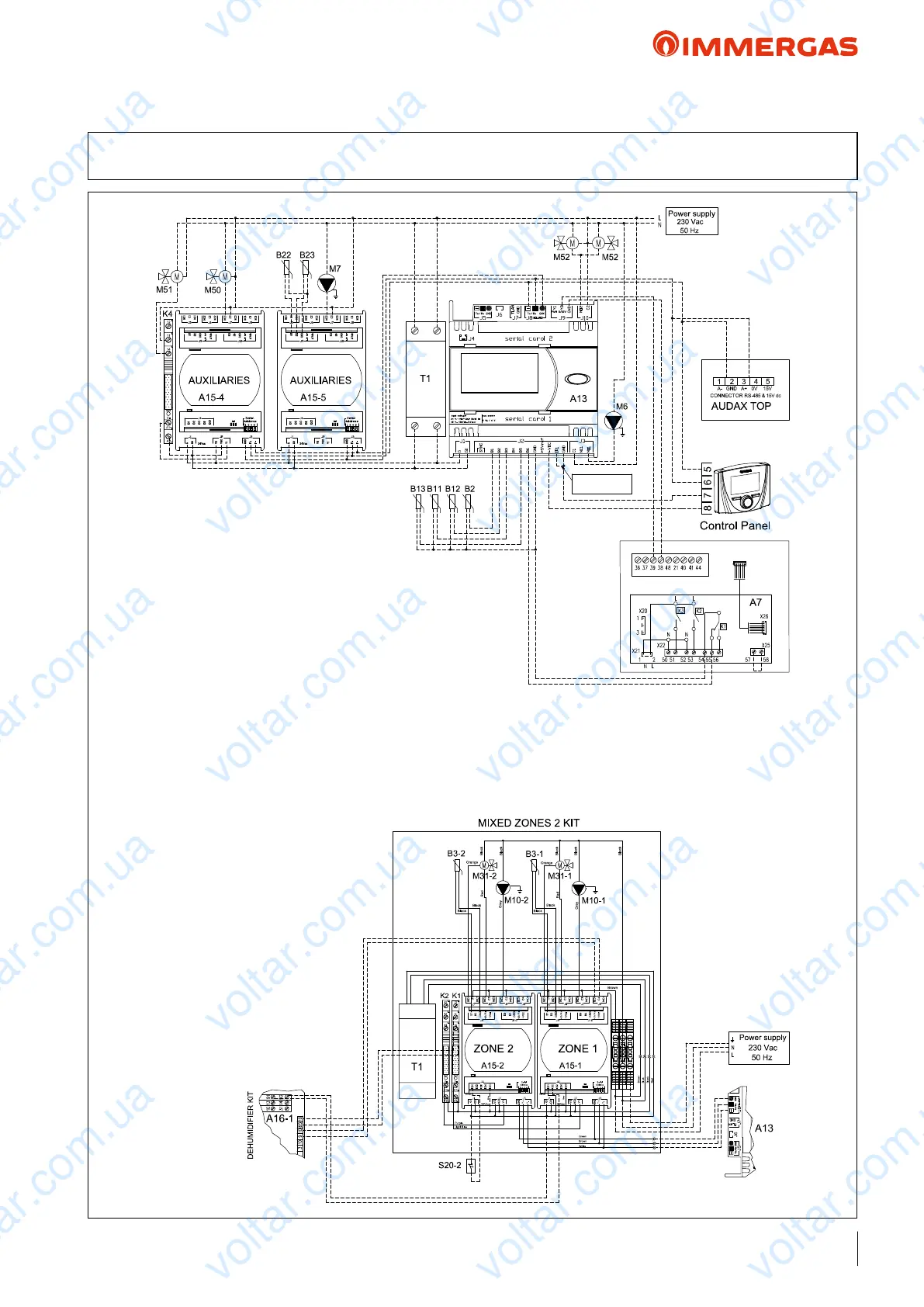

55.1 WIRING DIAGRAM: AUDAX TOP

ErP

+ BOILER and 2 low temperature zones

+ SOLAR HEATING for DHW and C.H. + SYSTEM MANAGER

KEY:

A7 - Congurable relay interface kit (optional)

code 3.015350

A13 - System Manager

A15-4 - Auxiliary expansions

A15-5 - ermal discharge expansion pump

K4 - 3-way valves enabling relay

B2 - Storage tank upper part temp. probe (NTC)

B11 - Solar manifold probe (PT1000)

B12 - Storage tank lower part temp. probe (NTC)

B13 - Storage tank central temp. probe (NTC)

B22 - Hot source temp. probe

B23 - Cold source temp. probe

M6 - Solar ErP circulation group

M7 - Heating system circulation pump

M50 - DHW integration 3-way valve

M51 - Boiler integration 3-way valve

M52 - 3-way summer/winter switch-over valves

T1 - 24 Vac transformer (not supplied with the

system Manager - standard with the distribution kit)

A15-1 - L.T. zone expansion 1

A15-2 - L.T. zone expansion 2

A16-1 - Zone 1 dehumidier

B3-1 - Zone 1 ow temp. probe

B3-2 - Zone 2 ow temp. probe

K1 - Zone 1 cooling enabling

K2 - Zone 2 cooling enabling

M10-1 - Zone 1 pump

M10-2 - Zone 2 pump

M31-1 - Mixing zone 1

M31-2 - Zone 2 mixer

S20-2 - Zone 2 room On/O thermostat

NOTE: with this setting, the Control Panel (standard

supply with AUDAX TOP ErP) is used to manage

mixed zone 1.

Set relay K3 to 3-2. e relay issues a signal that

the boiler is blocked and automatically activates the

heat pump.

On/Off general

request input

BOILER
