Immergas AUDAX TOP ErP Series User Manual

AUDAX TOP ErP and Integrated System
75
DHW recirculation pump management
ermoue contact management
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
PV: On/Off contact from photovoltaic system.
Notes:
Configure the expansion address as indicated.
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
M11: Circulation downstream of the plate heat
exchanger on heat pumps.
K4: relay type EMR 12V DC code 3.023945

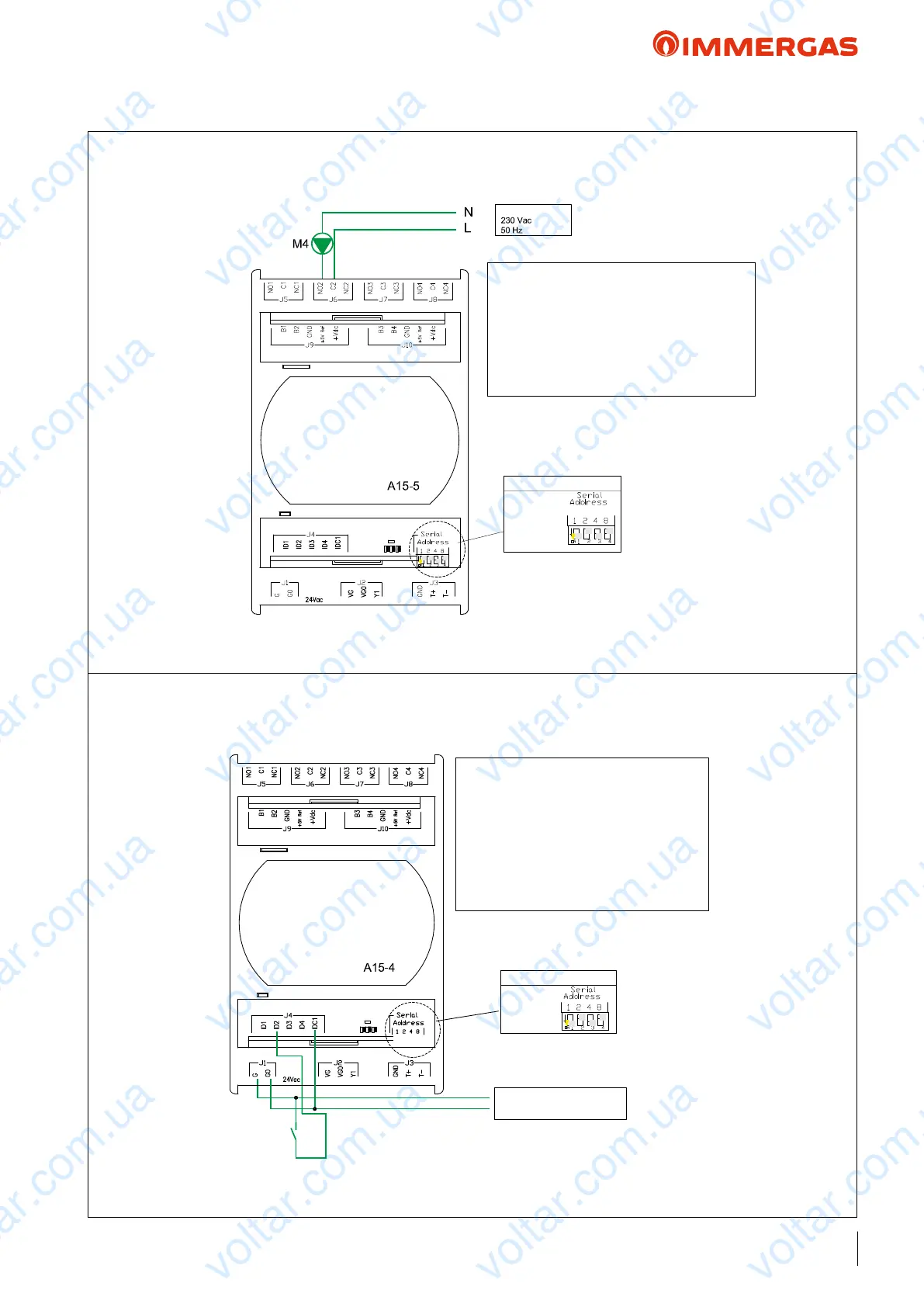

Key:
A15-5: Zone expansion kit with address 5 (code
3.021547)
M4: circulation of D.H.W. recirculation
Notes:
Configure the expansion address as indicated.
Key:
A15-4: Zone expansion kit with address 4
(code 3.021547)
THERMOFLUE: On/Off contact from thermoflue.
Notes:
Configure the expansion address as indicated.
Input contact to disable the generators when a
thermal chimney is operating: if the contact
closes Audax, the boiler/resistance remain on
standby.
THERMOFLUE
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
DS: Domotic system.
Notes:
Configure the expansion address as indicated.
Contact “domotic” management is executed
using the following configurations:
Stand-by
Winter
Summer
Cooling
Party
Expansion Addresses
Address 5
Expansion Addresses
Address 5
Supply voltage 24Vac;
50Hz
SUPPLY VOLTAGE
Supply voltage 24Vac;
50Hz
Supply voltage 24Vac;
50Hz
Supply voltage
24Vac; 50Hz
Expansion Addresses
Address 4
Expansion Addresses
Address 5
Expansion Addresses
Address 5
Expansion Addresses
Address 5
SUPPLY VOLTAGE SUPPLY VOLTAGE
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
M7: thermal discharge circulation.
B22: hot source probe (code 3.019375).
B23: cold source probe (code 3.019375).
Notes:
Configure the expansion address as indicated.
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
PV: On/Off contact from photovoltaic system.
Notes:
Configure the expansion address as indicated.
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
M11: Circulation downstream of the plate heat
exchanger on heat pumps.
K4: relay type EMR 12V DC code 3.023945
Key:
A15-5: Zone expansion kit with address 5 (code
3.021547)
M4: circulation of D.H.W. recirculation
Notes:
Configure the expansion address as indicated.
Key:
A15-4: Zone expansion kit with address 4
(code 3.021547)
THERMOFLUE: On/Off contact from thermoflue.
Notes:
Configure the expansion address as indicated.
Input contact to disable the generators when a
thermal chimney is operating: if the contact
closes Audax, the boiler/resistance remain on
standby.
THERMOFLUE
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
DS: Domotic system.
Notes:
Configure the expansion address as indicated.
Contact “domotic” management is executed
using the following configurations:
Stand-by
Winter
Summer
Cooling
Party
Expansion Addresses
Address 5
Expansion Addresses
Address 5
Supply voltage 24Vac;
50Hz
SUPPLY VOLTAGE
Supply voltage 24Vac;
50Hz
Supply voltage 24Vac;
50Hz
Supply voltage
24Vac; 50Hz
Expansion Addresses
Address 4
Expansion Addresses
Address 5
Expansion Addresses
Address 5
Expansion Addresses
Address 5
SUPPLY VOLTAGE
SUPPLY VOLTAGE
Key:
A15-5: Zone expansion kit with address 5
(code 3.021547)
M7: thermal discharge circulation.
B22: hot source probe (code 3.019375).
B23: cold source probe (code 3.019375).
Notes:
Configure the expansion address as indicated.
