AUDAX TOP ErP and Integrated System

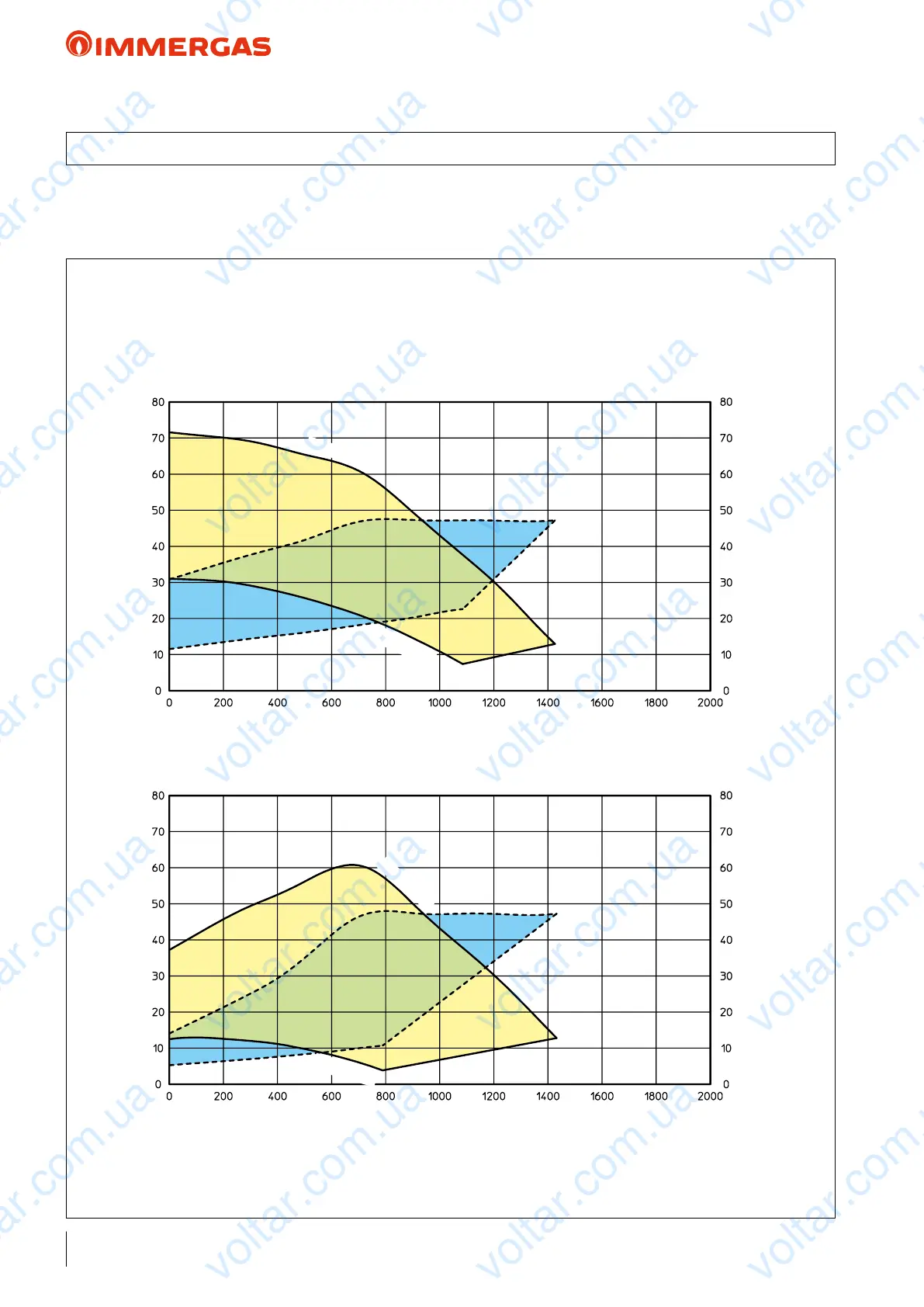

45.5 GRAPHS OF CIRCULATION PUMP FLOW RATEABSORPTIONHEAD

KEY:

A = Head available at speed 2 ÷ 7

B = Power absorbed by the system circulator pump (dotted area)

Circulator pump absorbed power (W)Circulator pump absorbed power (W)

Flow rate (l/h)

Head (kPa)Head (kPa)

Constant head (∆P C).

Proportional head (∆P V).

e kit contains an electronic low consumption circulation

pump, whose ow rate/head features are shown in the graph

below.

WILO YONOS PARA RS 15-7 RKA CM 130

All pumps in the kit are suitable for operation with heat and

cold carrying uid.

ZONE MIXED WITH AN OPEN MIXING VALVE AND DIRECT ZONE

EEI ≤ 0.20

Flow rate (l/h)

Speed 2

Speed 7
