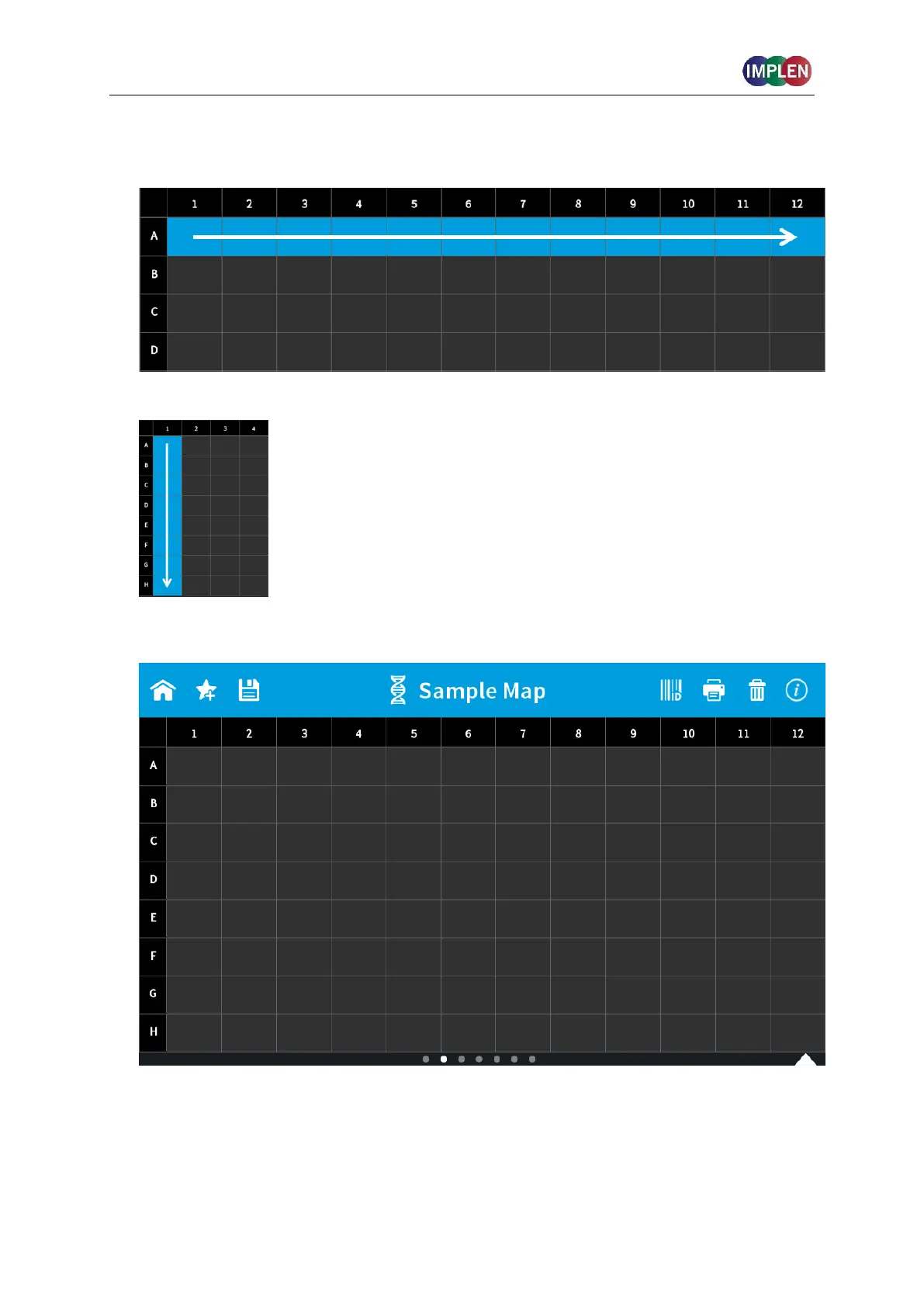

There are two options:
Horizontally: Measure up to 12 samples (A01 – A12 shown in sample map as row)
Vertically: Measure up to 8 samples (A01 – H01 shown in sample map as column)
9. To confirm the parameter setting, swipe the screen to the left and the sample map screen
is shown.
The sample map offers the possibility to select cells and define sample IDs for
measurements. It is not necessary to make any selection. If cells are left empty without
defined sample IDs for horizontal or vertical sample loading, all 12 positions for horizontal
loading or all 8 positions for vertical loading are measured.
