Implen NanoPhotometer NP80 - Page 90

NanoPhotometer
®
N120/NP80/N60/N50/C40 User Manual Version 4.3.1
90

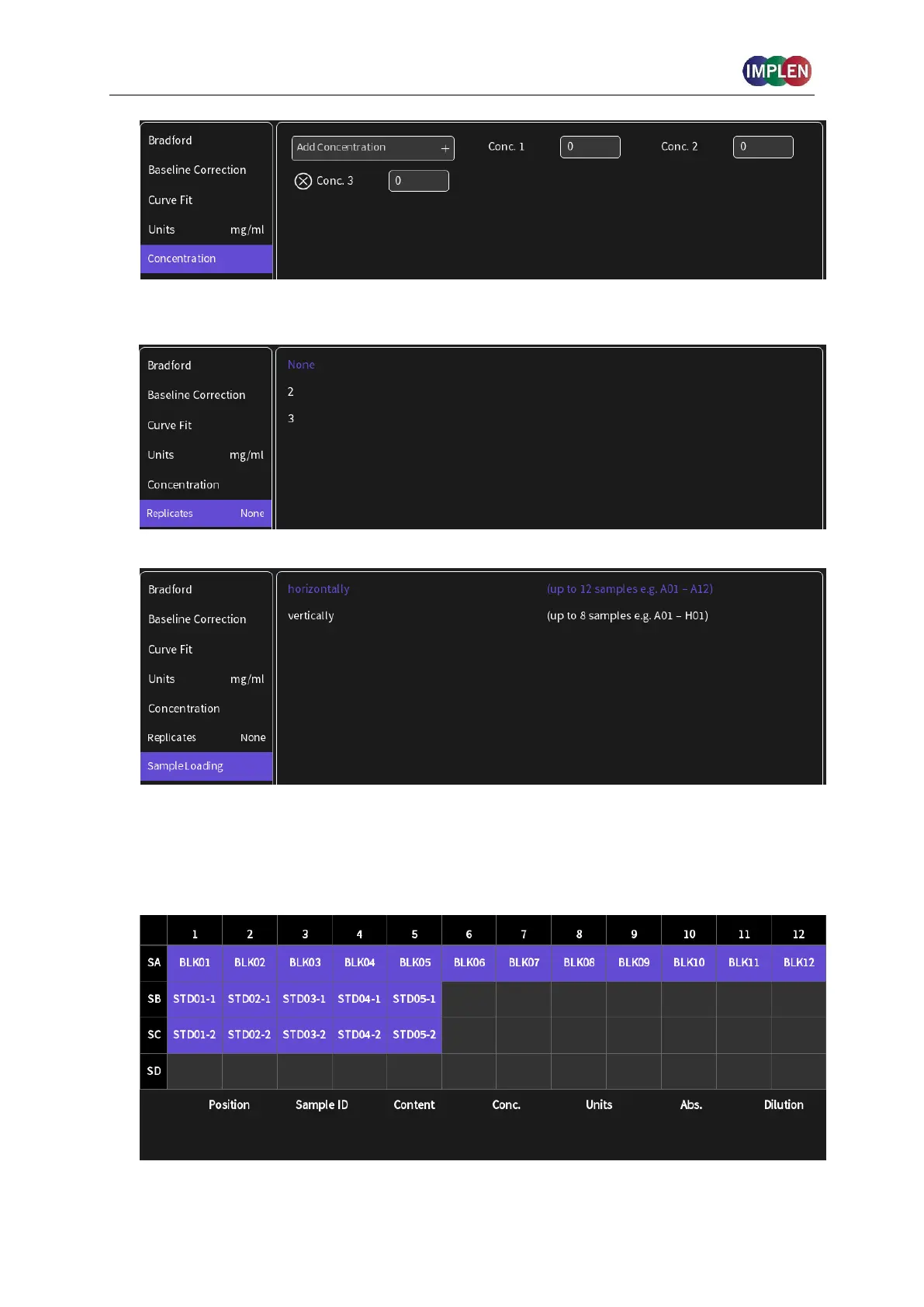

8. Select Replicates none, 2 or 3
9. Select sample loading orientation.
10. To confirm the parameter setting, swipe the screen to the left and the standard map screen
is shown. The standard map is created automatically depending on the parameter settings
(sample orientation, concentration and replicates). It is not possible to change the Sample
IDs for standards.
e.g. horizontally 5 standards and 2 replicates defined:
