98 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215
Miscellaneous

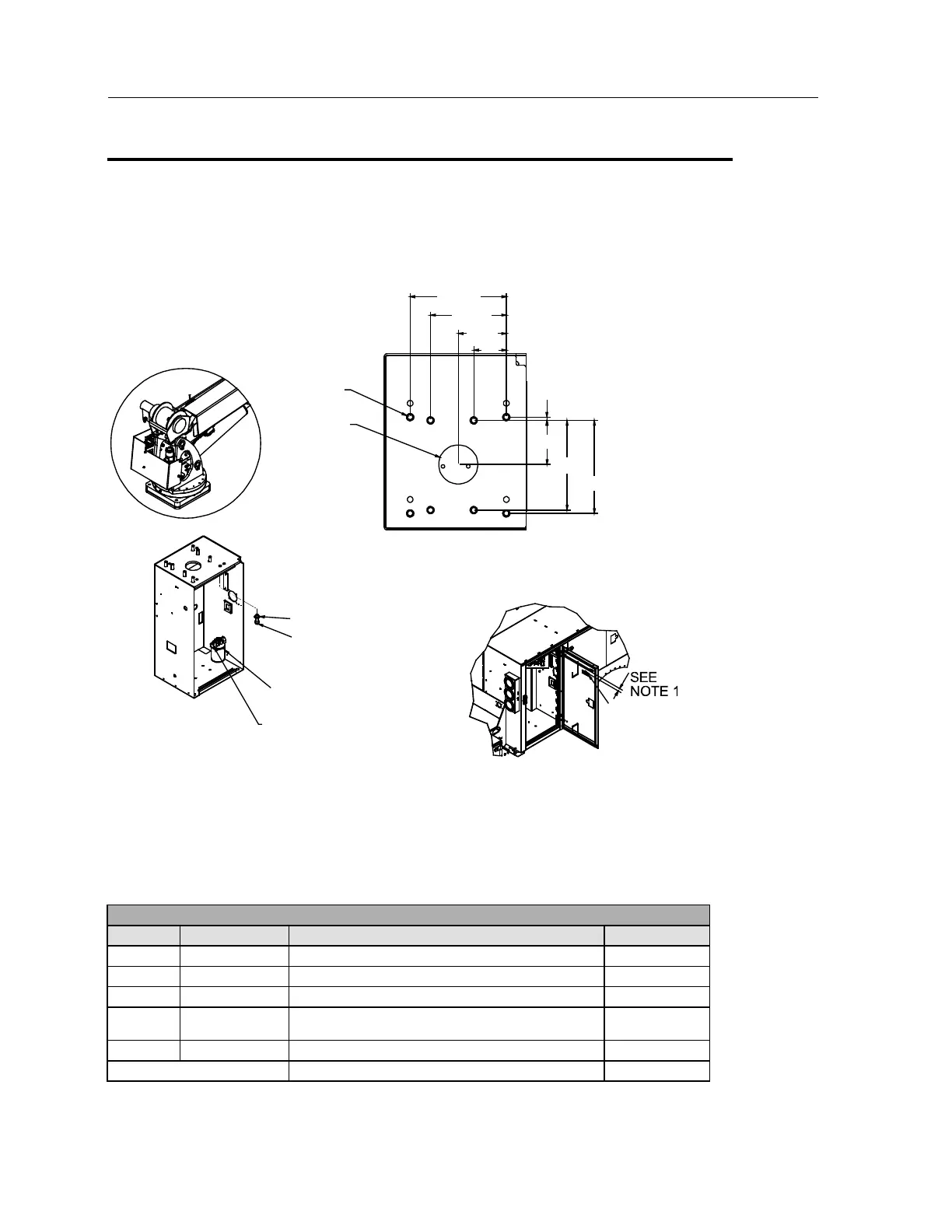

Installation Kit (93719174)
CRANE
14.75"
11.63"
7.38"
5"
1/2"
6.75"
13.75"
14.25"
8 HOLES
ø1.13" DIA.
ø6" DIA.
LEVEL
PLUMB HYDRAULIC FILTER
INTO RETURN LINE.
FILTER
FILTER ELEMENT
1-8 x 3" CAPSCREW
1" WASHER
CRANE MOUNTING
BOX (REFERENCE)
MOUNTING HOLES AS VIEWED
FROM TOP OF CRANE, BACK
OF TRUCK
LEVEL INSTALLATION
TORQUE TO 680 FT-LB
(8 PLACES)
NOTES:
1 Item #5, boom level indicator, is designed to tell the crane operator if the crane base is level. Install boom level
indicator parallel to the door reinforcements.
2 The supplied 3" capscrews (item #2) are for use on bodies with a crane box top plate thickness of 7/8" to 1" only.
Determine the crane box top plate thickness prior to mounting. If different length bolts are required, they must be
1-8, zinc coated, of proper length to insure minimum 1-1/2" thread engagement.
93719174 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
72063066
WASHER 1.00 FLAT HI STR
8
2.
72601748
CAP SCR 1.00- 8X 3.00 SH GR8
8
3.
73052091
FILTER-HYD RET 10MIC 1.25 NPTF
1
4.
73052092
ELEMENT-HYD FILTER 10MIC(SPIN) (PART OF
ITEM #5)
1
5.
72042097
LEVEL INDICATOR LEVEL
1
REV. D 20080515
