38 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

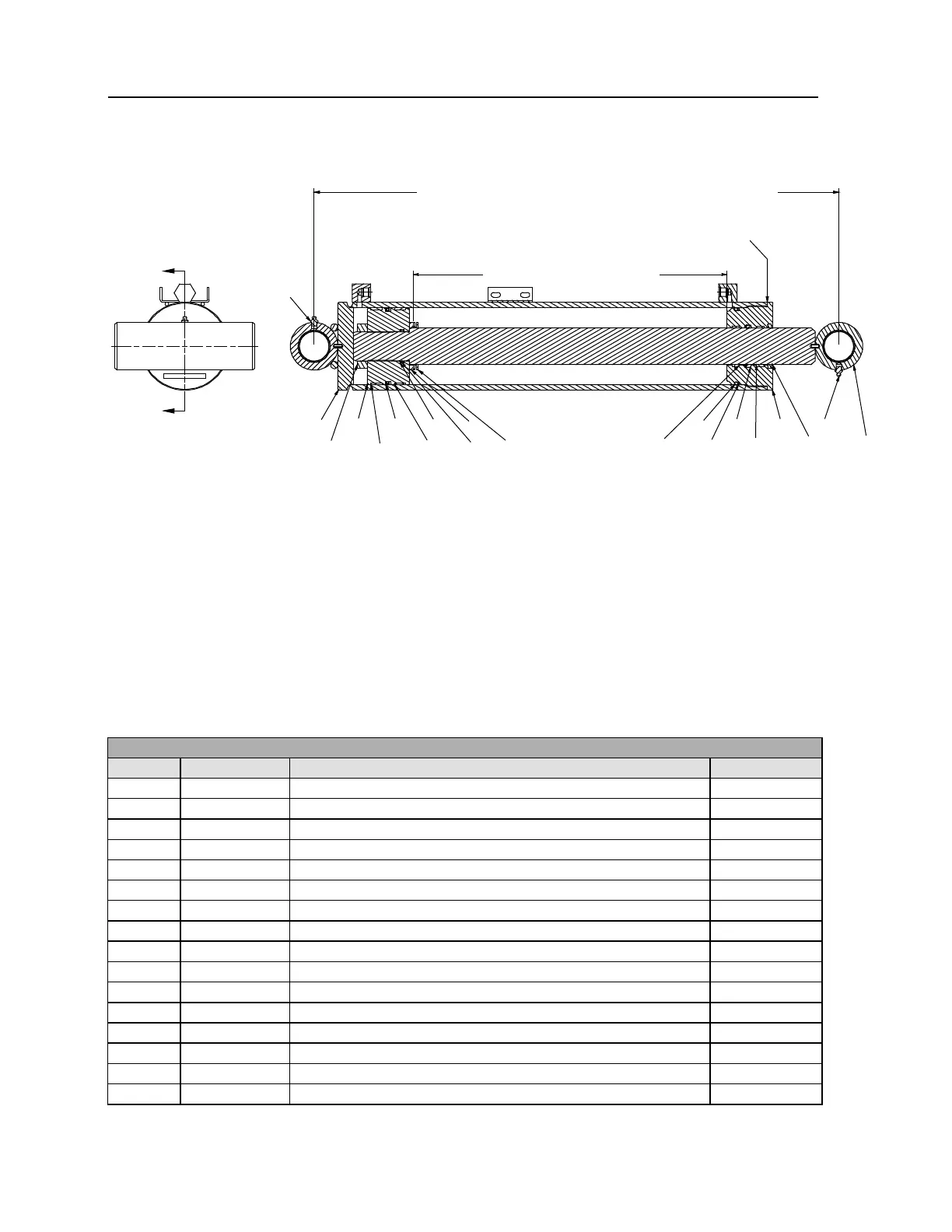

Cylinder Components (51719074A)
A
A
6
12
2
18
14
19
13
17
9
15
10
3
7
11
16
5
8
9
11
19
SECTION A-A
35.75" CLOSED - 56.87" OPEN - 21.12" STROKE
21.38" TO STOP TUBE
DRILL #15 HOLE 3/16" DEEP.
PRESS IN PIN # 60125699.
NOTES:
1 REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS DISASSEMBLED. THIS
WILL REDUCE FUTURE DOWNTIME.
2 APPLY REGULAR GRADE ANTI-SEIZE AND LUBRICATING COMPOUND TO THREADS ON CYLINDER
HEAD ONLY. KEEP AWAY FROM ALL SEALS.
3 APPLY "LUBRIPLATE" NO. 630-2 MEDIUM HEAVY, MULTI-PURPOSE LUBRICANT, TO ALL PISTON, HEAD
GLAND, AND HOLDING VALVE SEALS, NYLON LOCK RING, CAST IRON PISTON RINGS, AND ROD
STINGER THREADS.
4 ITEM #8, STOP TUBE, REPLACES 6A025025 WAFER LOCK. USE STOP TUBE INSTEAD OF WAFER LOCK
WHEN RESEALING CYLINDER.
5 PRESS LOCKING PIN (ITEM #4) INTO #15 HOLE DRILLED 0.188” DEEP.
6 TORQUE PISTON TO 710-740 FT-LB, HEAD TO 525 FT-LB, CARTRIDGE TO 40 FT-LB, LOCKNUT TO 12 FT-
LB, AND CAP SCREW TO 16 FT-LB
51719074A PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
51744141
SEAL KIT-IMT 5.25B 2.50R 2.00 STGR (INCL:4, 8, 1-19)
1
2.
52719017
ROD ASM-2.50 OD X 33.06LG 2.00 STGR
1
3.
52719076
CASE ASM- 5.25 BORE X 30.87 LG
1
4.
60125699
PIN - LOCK TUBE 0.19 OD X 0.065 WALL
1
5.
60127501
STOP TUBE- 3.25OD X2.56ID X 0.25 LG
1
6.
60127603
HEAD- 5.25 BORE X 2.50 ROD
1
7.
60127604
PISTON- 5.25 BORE X 2.00 STGR
1
8.
60138276
STOP TUBE (WAS 6A025025)
1
9.
72053508
ZERK-NPT .12
2
10.
72062304
COLLAR-LOCK 2-12 X 3 X .688
1
11.
76396601
WEAR RING- PISTON 5.25 OD X 0.75W
2
12.
76396602
ORING-4.85ID X5.27OD X0.21 70
1
13.
76396603
BACKUP RING- 4.87ID X 5.25 OD
1
14.
76396605
SEAL- ROD 2.50 ROD DZ
1
15.
76396608
BACKUP RING- 2.02 ID X 2.26 OD
2
16.
76396609
PISTON SEAL-DYNAMIC 5.25 OD CP
1
