Chapter 4
Parts
73

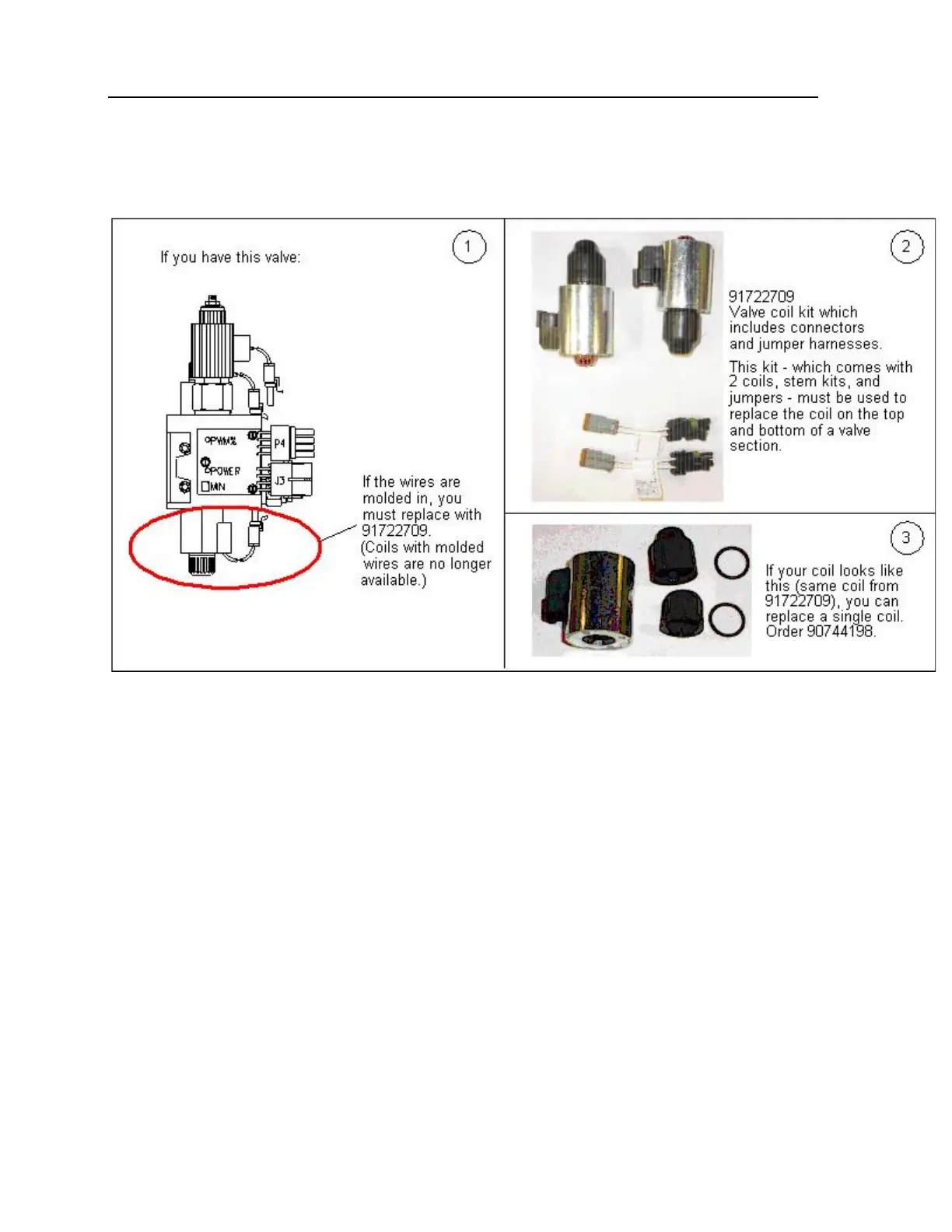

Replacement V
alve C
oils
Disassemble the valve
as follows:
1
Remove retainer by rotating counterclockwi
se with pliers.
2
Slide o
-
ring and coil over tube to remove.
3
Remove tube using an 11/16”
open
-
end wrench. Turn counterclockwise. NOTE: Do not
remove valve spool (A3), or misplace w
asher (A2) or spring (A1). Do no
t contaminate valve!
74
76
Table of Contents
Default Chapter
3
Table of Contents
3
Revisions
5
Introduction
7
Specifications
9
General Specifications
9
System Specifications
10
Geometric Configuration, 5525-6025-6625
12
Capacity Chart, 5525
13
Capacity Chart, 6025
14
Capacity Chart, 6625
15
Reduced Capacity Lift Charts
16
Stability Confirmation Process
17
Crane Reference
19
5525-6025-6625 Assemblies & Grease Zerk Locations
20
Recommended Spare Parts List
21
Crane Installation
22
Hydraulic Installation
24
Telescopic Crane Orientation
25
Crane Control
25
Parts
27
Parts Information
28
Base & Mast Assemblies
30
Base & Mast Assembly (99903945)
30
Gear Rotator (71056577)
32
Valve, Counterbalance (73540094)
34
Cylinder, Lower, 5525 (51719075) (Eff. 4-10-07)
35
Cylinder Components (51719075A)
36
Cylinder, Lower, 6025 (51719015) (Eff. 4-13-07)
37
Cylinder, Lower, 6625 (51719074) (Eff. 4-07)
39
Cylinder Components (51719074A)
40
Boom Assemblies & Cylinders
42
Boom Assembly (99904235)
42
Flip Sheave Assembly (99904248)
45
Cylinder Assembly, Extension (51721028)
47
Cylinder (51718994)
48
Cylinder (51721029)
49
Cylinder Assembly, Extension (71410928) (Thru 4-07)
50
Cylinder (71410930)
52
Cylinder (71410931)
54
Cord Reel Assembly (51720302)
55
Crane & Winch Assemblies
56
Crane & Winch Assembly (99904035)
56
Winch Specifications (71570825)
60
Winch Parts (71570825)
61
Winch Oil Specifications
63
Winch Parts (70570771) (Reference Only)
64
Hydraulic and Electrical System
66
Hydraulic Installation (99904036)
66
Valve Bank, Plan. Winch (73734472) (Eff. 1-10)
69
Valve Bank, Plan. Winch (73734193) (Eff 5-07 to 12-09)
71
Telescopic Valve Bank Replacement (99904783)
73
Replacement Valve Coils
75
Harness, Valvebank (77441204) (Eff. 8-1-06)
78
Electrical Harness, Tethered Remote (77441164)
80
Electrical Schematic, Tethered (77441164)
81
Handle Assembly, Tethered Remote W/Engine Start (51719470)
83
Tethered Remote Calibration Mode
85
Tethered Proportional Remote Potentiometer Adjustment
86
Controls
87
Controls Installation, Tethered (Kit 90719399/Dwg. 99903697)
87
Controls Installation / Radio Remote (Kit 90719400/Dwg. 99903697)
88
Auxiliary Stabilizer Assemblies and Valvebanks
89
Stabilizer, Power Out/Power Down, 7X5 (31712739)
89
Stabilizer, Manual Out/Power Down, 7X5 (31712740)
92
Stabilizer, Manual Out/Crank Down, 7X5 (31712741)
95
Stabilizer, Manual Out/Manual Down, 7X5 (31712902)
96
Cylinder, Power down (3B205010)
97
Valve Bank, 2-Section (51714813)
98
Valve Bank, 3-Section (51714812)
99
Miscellaneous
100
Installation Kit (93719174)
100
Boom Support, Adjustable, 3820-5020-5525-6025 (51718848)
101
Chassis Wiring Harness (99903340)
102
Decal Kits & Installation (99904246)
103
General Reference
107
Inspection Checklist
107
Deficiency / Recommendation / Corrective Action Report
112
Wire Rope Inspection & Replacement
114
Hook Inspection
115
Holding Valve Inspection
116
Anti-Two-Block Device Inspection
116
Thread Torques
117
Turntable Bearing Thread Tightening Sequence
120
Turntable Bearing Inspection
121
Turntable Bearing Tilt Test
121
