IMT 5525 Parts & Specifications

Parts 93

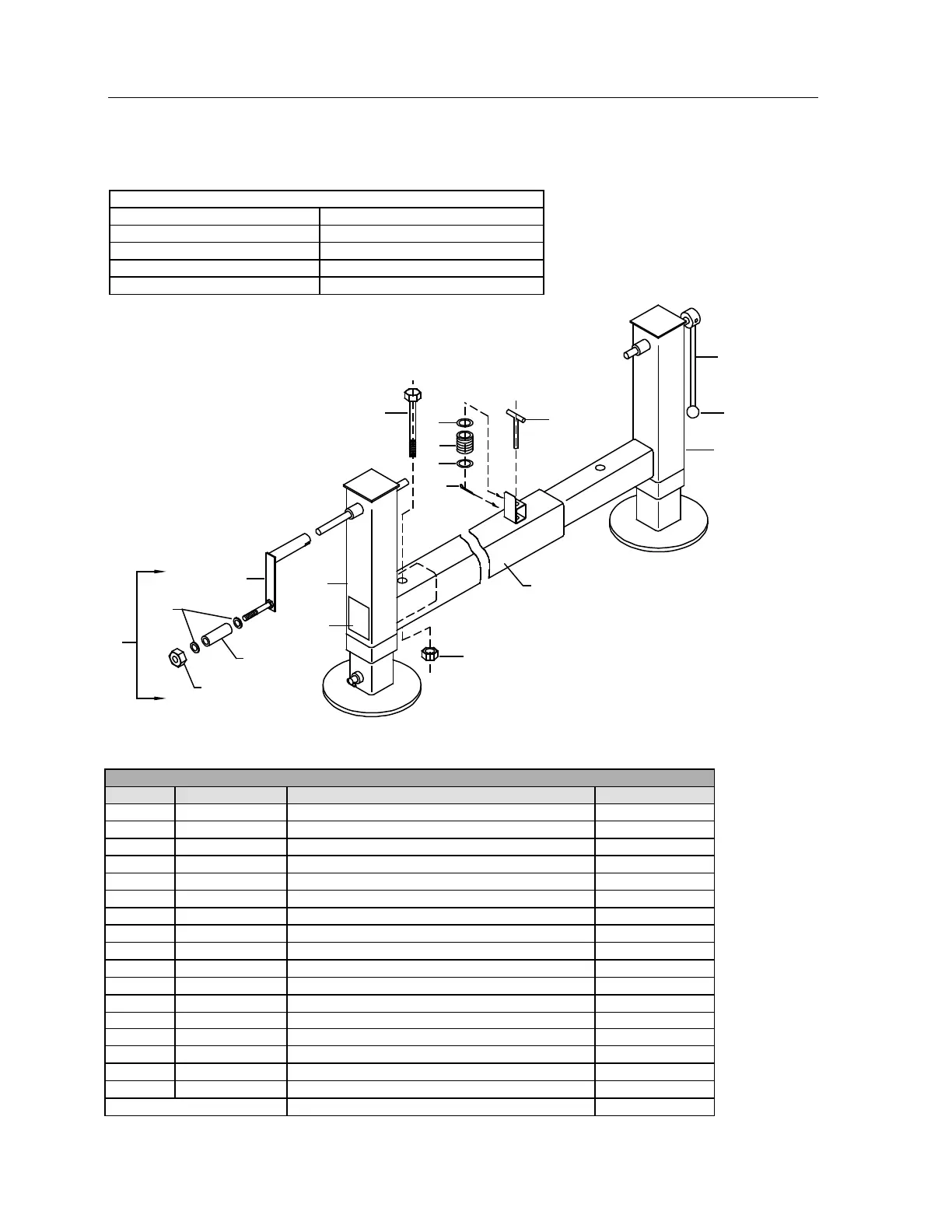

Stabilizer, Manual Out/Crank Down, 7x5 (31712741)
STABILIZER SPECIFICATIONS
Typical Application
Telescopic cranes
Recommended Crane Rating
Up to 60,000 ft-lb
Span
136.75"
Housing Dimensions
5" x 7" x 3/8"
Horizontal Tube Dimensions
4" x 6" x 3/8"
2
9
6
9
7
17
5
11
13
1
10
16
4
15
3
812
14
NOTE:
1 TIE STABILIZER HOUSING TUBE INTO STRUCTURAL SUPPORT OF CRANE.
31712741 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
51705040
CRANK ASM (INCL. 11-14)
1
2.
52070138
PIN WELDMENT - "T"
1
3.
52712734
STAB HOUSING 7X5
1
4.
52712737
ARM-STAB ADJ. MAN OUT/CRANK DOWN
1
5.
52712738
ARM-STAT MAN OUT/CRANK DOWN
1
6.
60010351
SPRING-"T" PIN
1
7.
72060107
CAP SCR 1/2-13X8 HHGR5
1
8.
72062080
NUT 1/2-13 HEX NYLOC
1
9.
72063007
WASHER 5/8 FLAT
2
10.
72066185
COTTER PIN
1
11.
52705039
CRANK WELDMENT (PART OF #1)
1REF
12.
60030099
ROLLER (PART OF #1)
1REF
13.
72063003
WASHER 3/8 WRT (PART OF #1)
2REF
14.
72062103
NUT 3/8-16 HEX SELF-LOCK (PART OF #1)
1REF
15.
52703319
CRANK HANDLE
1
16.
71039096
CONTROL KNOB
1
17.
70392864
DECAL-DANGER STAB STAND CLEAR
2
REV A 20031117
