IMT 5525 Parts & Specifications

Chapter 4 Parts 43
99904235 PARTS LIST
ITEM
PART #
DESCRIPTION
KIT #
QUANTITY
46.
77441096
CONNECTOR- .50 STR RLF .25-.38
1
47.
70029119
PLACARD-SERIAL NUMBER
1
48.
72661638
TACK-METAL
2
49.
60122982
WEAR PAD- .50 X 5.00 X 7.88
1
REV. D 20080422

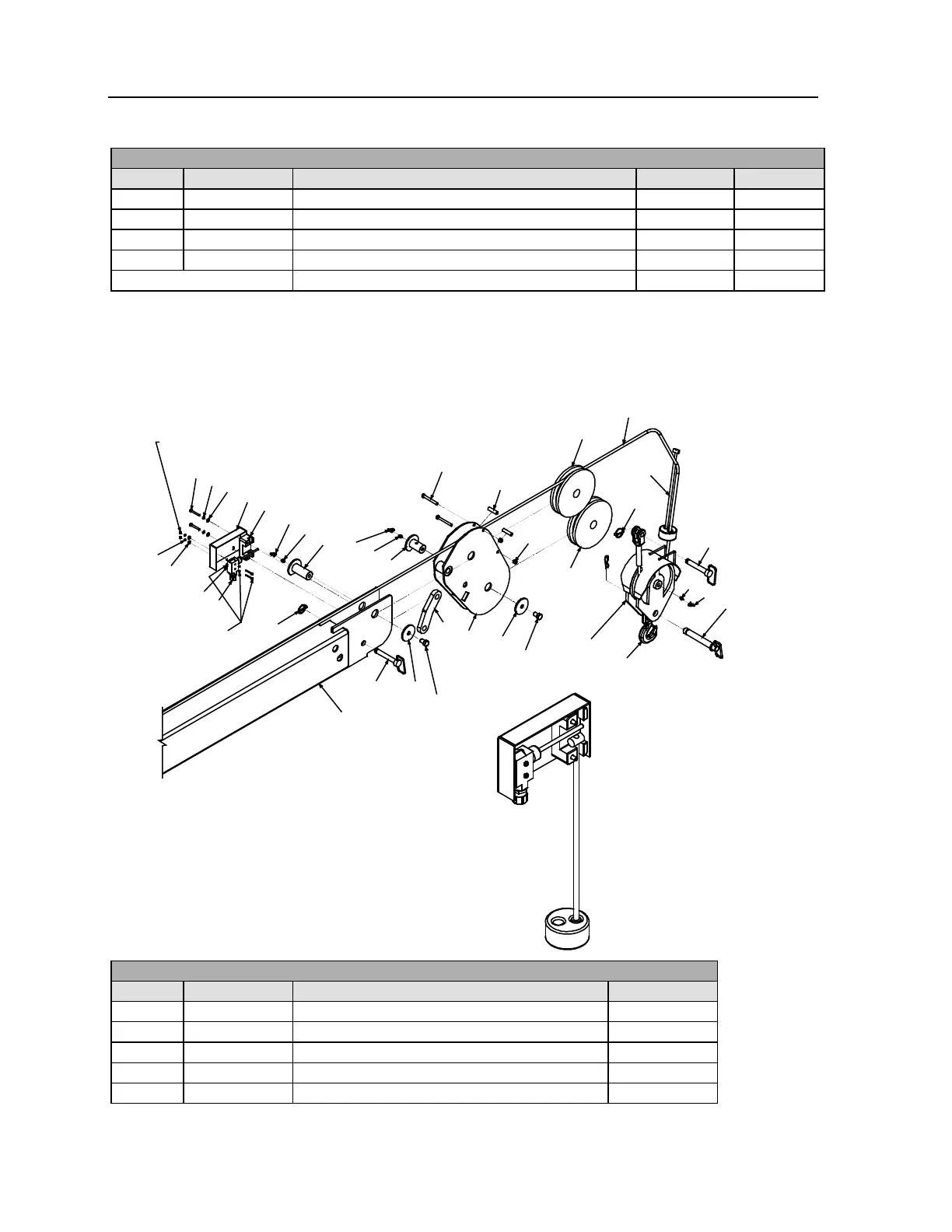

Flip Sheave Assembly (99904248)
1
16
23
22
21
17
15
20
27
12
4
11
10
6
5
3
12
27
7
9
13
6
5
2
8
8
18
11
14
10
12
27
26
25
19
24
29
28
DOUBLE LINE
CONFIGURATION SHOWN
SUPPLIED WITH
ITEM #15, SWITCH
SUPPLIED
WITH ITEM #15,
SWITCH
SWITCH
DETAIL
99904248 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
52720362
BOOM-2nd STAGE EXT WLDMT
1
2.
52709455
SHEAVE-WLDMT (FLIP)
1
3.
52707730
PIN-TYPE M 1.50X 2.50
1
4.
52709438
PIN-TYPE M 1.50X 3.50
1
5.
72060147
CAP SCR .62-11X 1.00 HH GR5 Z
2

IMT 5525 Specifications

General

Brand	IMT
Model	5525
Category	Construction Equipment
Language	English
