IMT 5525 Parts & Specifications

Parts 99

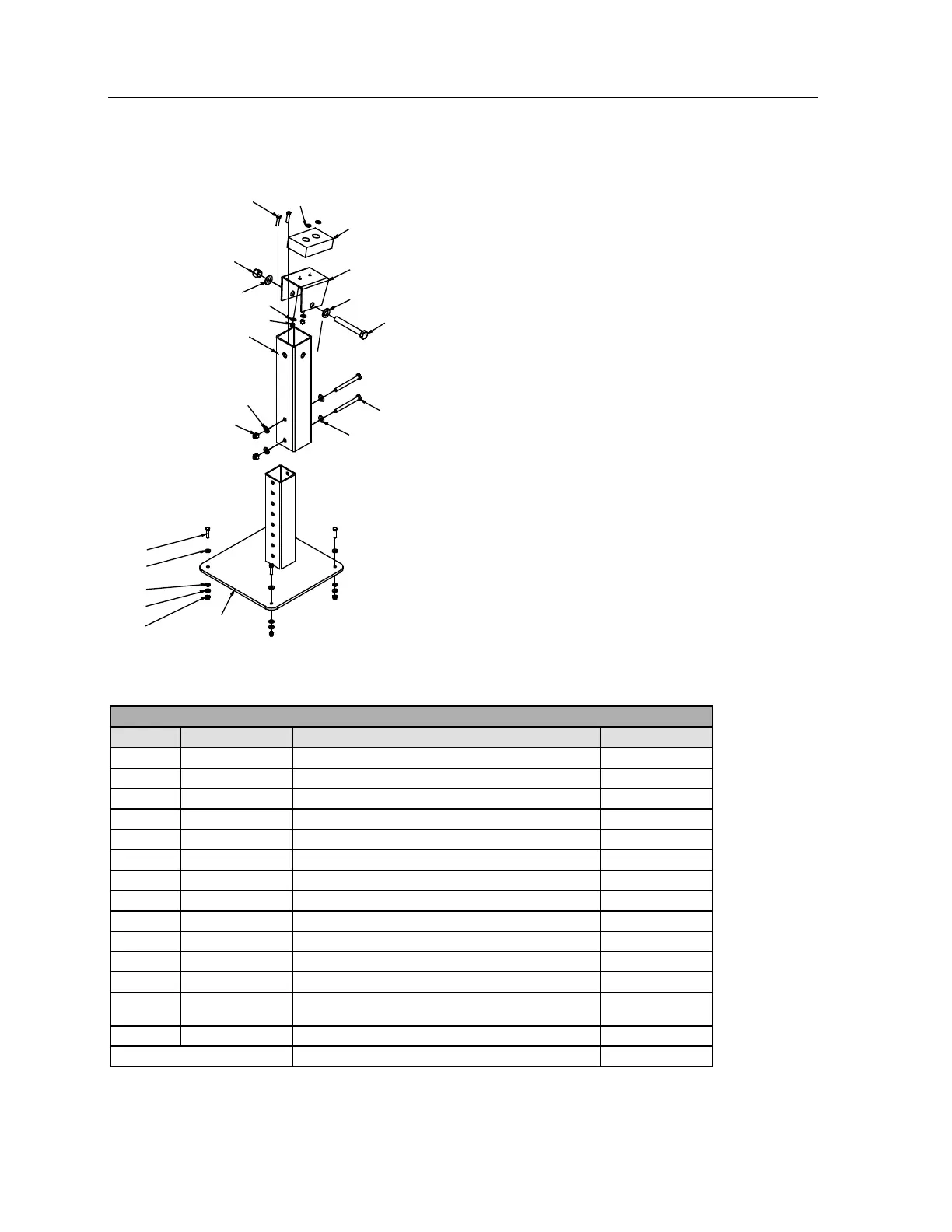

Boom Support, Adjustable, 3820-5020-5525-6025 (51718848)
1
7
4
2
3
8
9
11
6
11(4)
9(4)
11(4)
15(4)
6(4)
14
12
12
11
13
10
13
NOTE:
1 Hardware included in kit # 51718794.
2 Rotate and arrange pedestal #1 and saddle #10 based on chassis exhaust.
51718848 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
52718849
PEDESTAL-WLDMT ADJ
1
2.
60030464
WEAR PAD (WAS 60030306)
1
3.
60126561
TUBE-PEDESTAL
1
4.
60126563
SADDLE-BOOM SUPPORT DOM 3820 & UP
1
6.
72060048
CAP SCR .38-16X 1.50 HH GR5 Z
6
7.
72060101
CAP SCR .50-13X 5.00 HH GR5 Z
2
8.
72062080
NUT .50-13 HEX NYLOCK
2
9.
72062103
NUT .38-16 HEX NYLOCK
6
10.
72062114
NUT .75-10 HEX NYLOCK
1
11.
72063003
WASHER .38 FLAT (WAS 8)
12
12.
72063005
WASHER .50 FLAT
4
13.
72063008
WASHER .75 FLAT
2
14.
72601845
CAP SCR .75-10X 6.00 HH GR5 Z (WAS
72601845)
1
15.
76392821
WASHER-BONDED PLTD .38
4
REV D 20120120
