28 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215
Base & Mast Assemblies

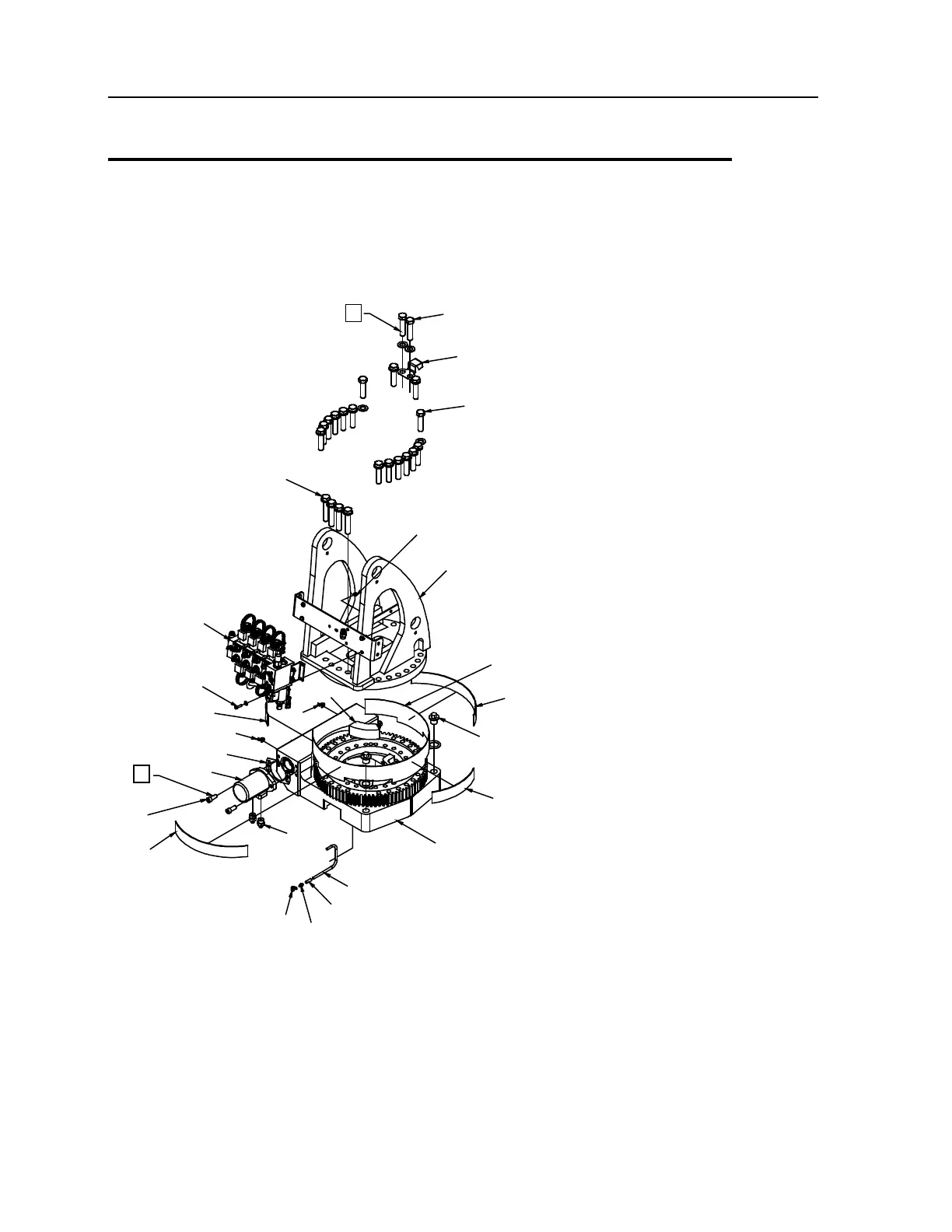

Base & Mast Assembly (99903945)
7
13
16
16
14
11
4
8
5
12
28
17
18
16
27
9
32
26
6
7
20(2)
29(2)
14(2)
19(4),
22(4)
21(4),22(4)
23(4),24(4)
23(18),
25(18)
33(2)
NOTES (SEE REFERENCE NUMBER IN BOX):
1 HYDRAULIC FITTINGS ARE PART OF 91720110 HOSE KIT.
2 USE 70034060 AS NEEDED TO SECURE WIRE HARNESS.
3 ITEMS 11 THROUGH 14 ARE PART OF DECAL KITS 95719358 AND 95719403, AND NOT USED ON 6625.
4 USE RUST PREVENTATIVE ON SLIDE STOP, BEARING RACE, AND BOTTOM OF MAST.
