50 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

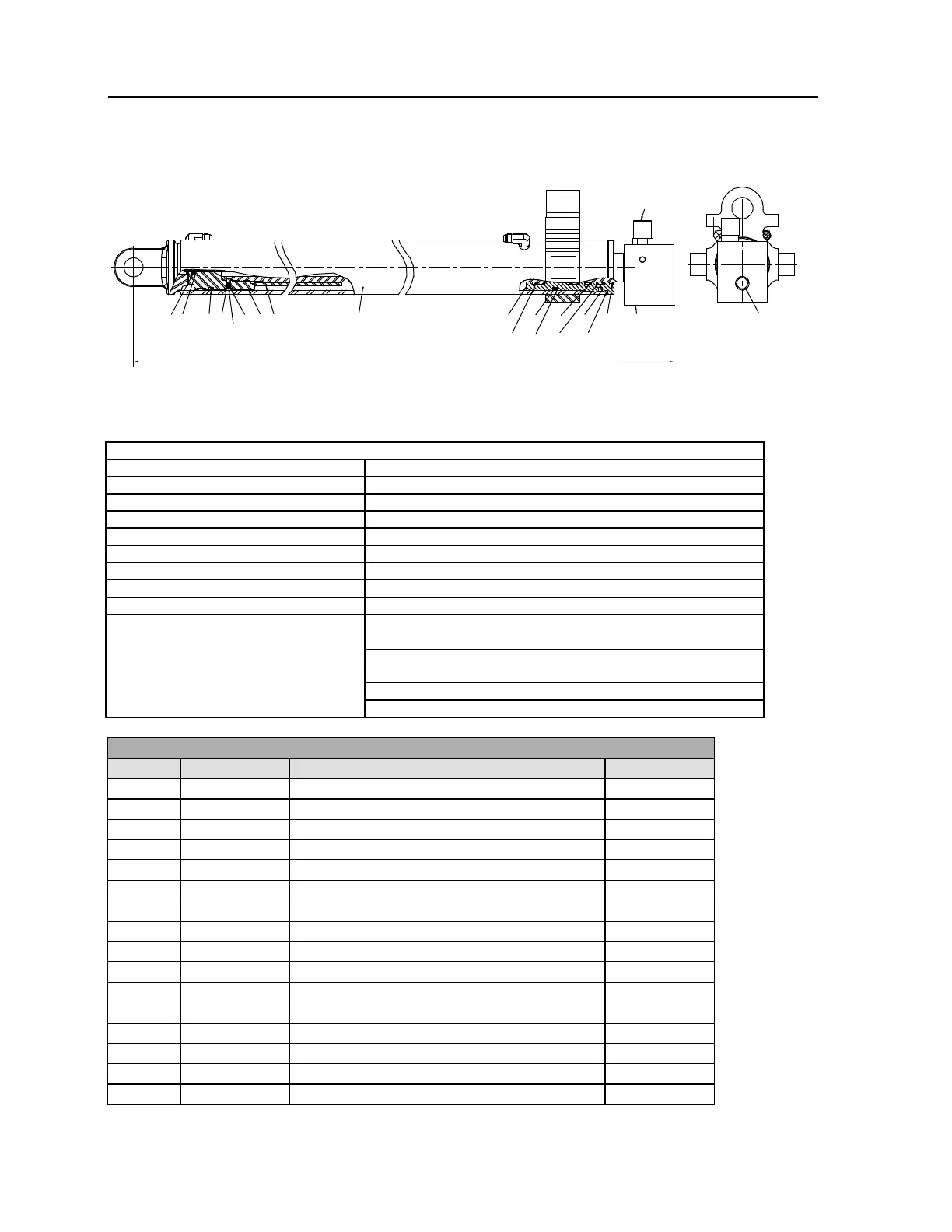

Cylinder (71410930)
3/4-10 UNC 2B
0.75" FULL THREAD
8
5
118.88" RETRACTED - 196.88" EXTENDED - 78" STROKE
1
3 10 15 20 16
17 13 19 11
9 1214 7
6
18 2 4
NOTES:
1 TO REDUCE DOWNTIME, REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS
DISASSEMBLED.
CYLINDER DATA
EXTENDED
4.90 IN², 1.65 GAL
RETRACTED
2.40 IN², 0.84 GAL
CASE
2.5" BORE X ø3.25"
ROD
ø 1.75" O.D.
DRY WEIGHT
166.4 LB
TEST PRESSURE
3500 PSI
OPERATING PRESSURE
3300 PSI
PORTS
SAE #6 O-RING BOSS (9/16-18 UNF-2B)
CYLINDER TUBE BURST PRESSURE
13,935 PSI
TORQUES
TORQUE ITEM #2, PISTON, WITH LOCTITE GRADE 271 OR
EQUIVALENT TO 150-200 FT-LB.
USING LOCTITE GRADE 243 OR EQUIVALENT, TORQUE
ITEMS #6 & #7, SET SCREW TO 60-70 FT-LB.
TORQUE ITEM #3, HEAD GLAND, TO 200 - 250 FT-LB.
TORQUE ITEM #8, C'BAL VALVE, TO 30-35 FT-LB.
71410930 PART LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
71412025
TUBE WELDMENT - Ist STAGE EXT
1
2.
050FE0016
PISTON - EXT CYL
1
3.
060FR0007
HEAD GLAND - EXT CYL
1
4.
065RY0004
ROD SPACER - EXT CYL
1
5.
71411802
ROD WELDMENT
1
6.
108FB0006
SET SCR .25-20X .25
1
7.
108FB0030
SET SCR .25-20X .31
1
8.
114BB0029
VALVE-CBAL CCC (4000 PSI)
1
9.
120BZ0021
O-RING (PART OF 21)
1REF
10.
120FZ0009
O-RING (PART OF 21)
1REF
11.
120GZ0003
O-RING (PART OF 21)
1REF
12.
123BZ0013
BACKUP RING DYNAMIC (PART OF 21)
2REF
13.
123FZ0006
BACKUP RING (PART OF 21)
1REF
14.
128FZ0004
DISO-PAC (PART OF 21)
1REF
15.
134EZ0009
DEEP Z-SEAL (PART OF 21)
1REF
16.
156DZ0001
HD ROD WIPER, SEALED OD (PART OF 21)
1REF
