Chapter 3 Crane Reference 23
Telescopic Crane Orientation
When an IMT telescopic crane is not factory-installed on a body, the crane is packed with the
boom oriented as it is built on a test stand to facilitate handling. Install the crane on the body
with boom pointing backward. Once the crane is bolted down, it can be rotated 180° (3.14
radians) to the boom rest.

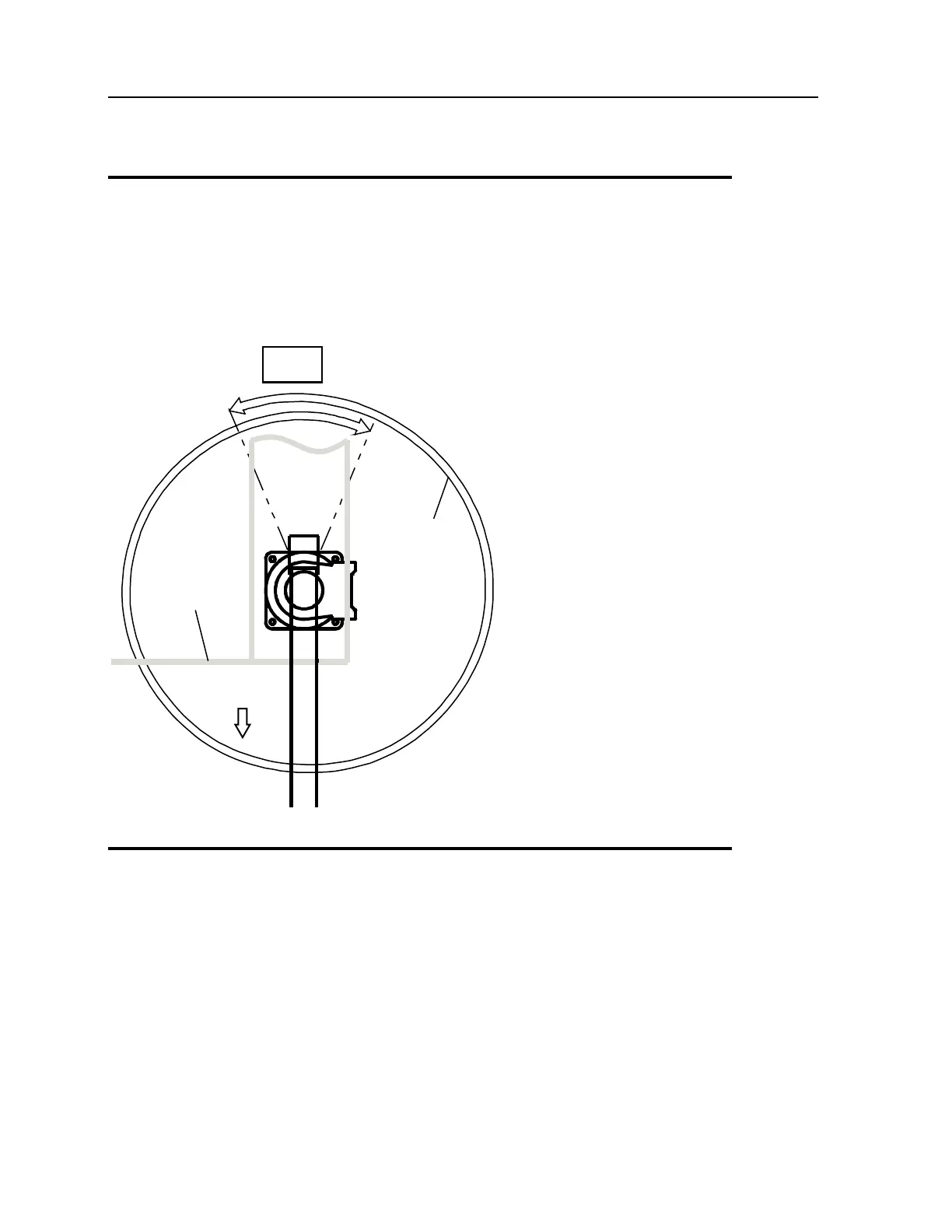

400°
ROTATION
OUTLINE OF
TRUCK BODY
REAR OF
TRUCK
BOOM
REST
Crane Control
IMT's telescopic cranes are controlled by radio or tethered remote controls. This telescopic
crane includes a tethered remote control with a radio remote control option. For complete
details on operating your telescopic crane, refer to the IMT Telescopic Crane Operation & Safety
Manual (part number 99903514).
