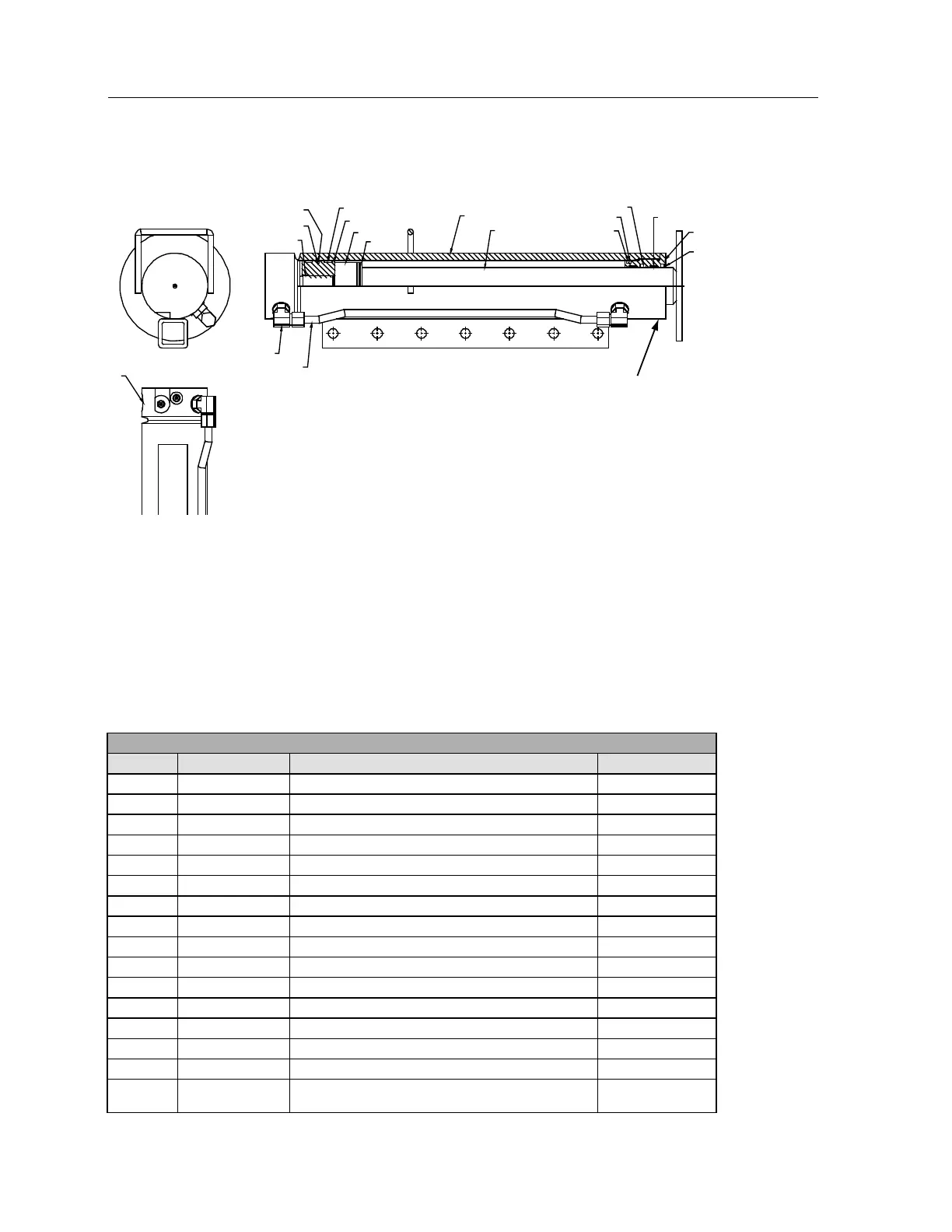

Cylinder, Power Down (3B205010)
4
3(2)
5
15
17
14
11
9
8
13(2)
7
19
16
1
2
10(2)
6
12
DRILL #15 HOLE 3/16" DEEP
PRESS IN #20 60125699.
NOTES:
1 TO REDUCE DOWNTIME, REPLACE ALL COMPONENTS OF THE SEAL KIT WHENEVER THE CYLINDER IS
DISASSEMBLED.
2 APPLY “LUBRIPLATE #630-2” MEDIUM HEAVY,MULTI-PURPOSE LUBRICANT OR EQUIVALENT TO ALL
PISTON AND HEAD GLANDS, LOCK RING AND ROD THREADS BEFORE ASSEMBLY.
3 USE ANTI-SEIZE LUBRICATING COMPOUND OR EQUIVALENT BETWEEN THE HEAD AND THE CASE
WHEN ASSEMBLING THE CYLINDER.
4 ITEM #16, STOP TUBE, REPLACES 6A025025 WAFER LOCK. USE STOP TUBE INSTEAD OF WAFER LOCK
WHEN RESEALING CYLINDER.
5 TORQUE PISTON TO 500-530 FT-LB, HEAD TO 350 FT-LB, AND CARTRIDGE TO 30-35 FT-LB.
STOP TUBE
(WAS 6A025025 WAFER LOCK) (SEE NOTE)
