IMT 5525 Parts & Specifications

Chapter 4 Parts 69

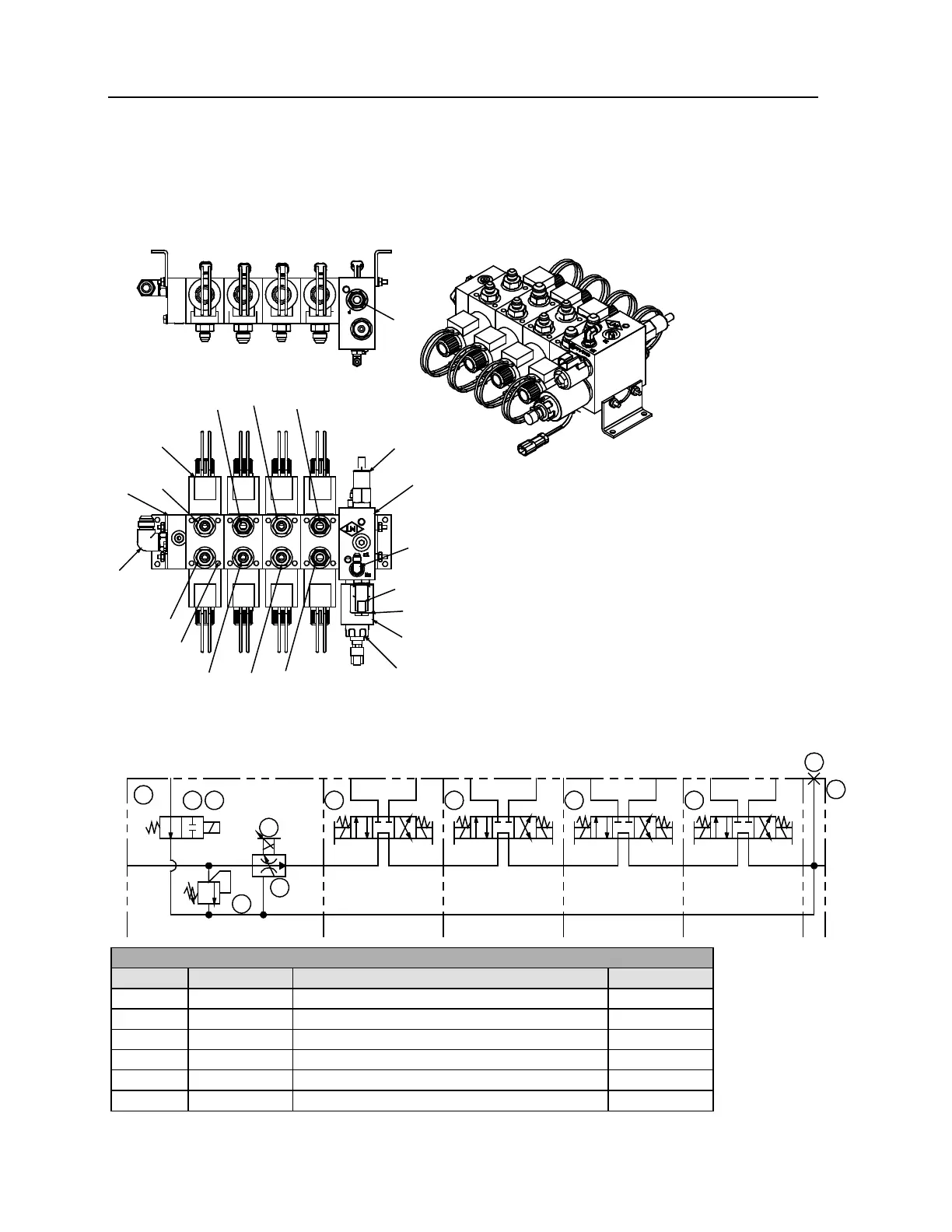

Valve Bank, Plan. Winch (73734193) (Eff 5-07 to 12-09)
(VALVEBANK 73734193 FROM USED ON 6025 CRANES FROM 6025S2071211 TO 6025S2091069) (WAS
51720111 THRU 5-4-07)
1
10
6
8
9
5
2
3
2
3
2
2
2
3
4
12
3
13
7
11
73734193 SCHEMATIC
BR
WU WD EI EO LD LU RL RR
9
8
2
4
3
2
2
2
T
P
1
6 7
5
SIDE
NOSE
73734193 PART LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
73540251
VALVE-BODY
1
2.
72532356
ADPTR-M STR/M JIC 8 6
5
3.
72532358
ADPTR-M STR/M JIC 8 8
4
4.
72533507
ELBOW-M STR/90/M JIC 8 10
1
5.
72053758
ELBOW-M STR/90/M JIC 4 4
1
6.
73540252
VALVE-CARTRIDGE - P.FLOW CONTROL
1
