IMT 5525 Parts & Specifications

Parts 85
Controls

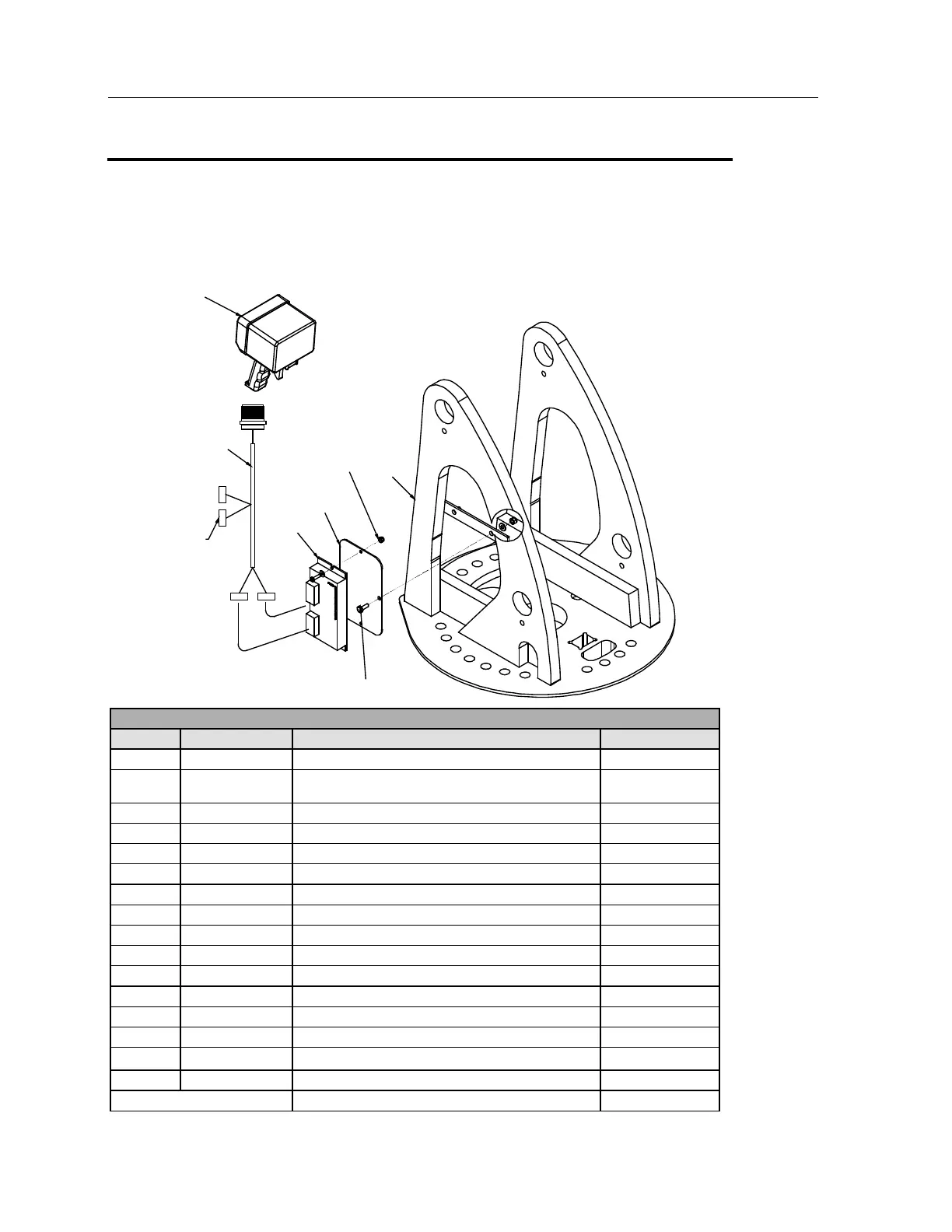

Controls Installation, Tethered (Kit 90719399/Dwg. 99903697)
1
14
15
16
12
ROUTE HARNESS
THROUGH CRANE
BASE. MOUNT
WITH PARTS
4,12-15.
CONNECT TO
HARNESS
(FROM
VALVEBANK)
6,7,8(2 PLCS)
3,4,5 (2 PLCS)
90719399 TETHERED CONTROLS PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
N/A
MAST WLDMNT
1
2.
51719412
HARDWARE KIT - TELE CRANE, TETH
CONTROLS (INCL 3-11)
REF
3.
72601827
CAP SCR-SS .25-20X .75 HH GR5
2
4.
72063166
WASHER-SS .25 R WRT18-8 .62OD
2
5.
72062194
NUT-SS .25-20 NYLOC
2
6.
72060636
SCR-MACH#10-24X .75 RDH PH Z
2
7.
72062106
NUT 10-24 HEX NYLOCK
2
8.
72063000
WASHER .19 W FLAT ANSI B27.2Z
2
9.
77044645
NUT-DEUTSCH 24 SHELL112263-90
1
10.
77044646
WASHER-LOCK DEUTSCH 112264
1
11.
72601330
CAP SCR-SS .25-20X 1.00 HH
2
12.
51719470
HANDLE ASSEMBLY
1
13.
60119299
BRACKET-MTG
1
14.
60128881
BRACKET-CONTROLLER
1
15.
71411554
TETHER LOGIC MODULE
1
16.
77441164
HARNESS-TETHER
1
REV. B 20050513
