IMT 5525 Parts & Specifications

84 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

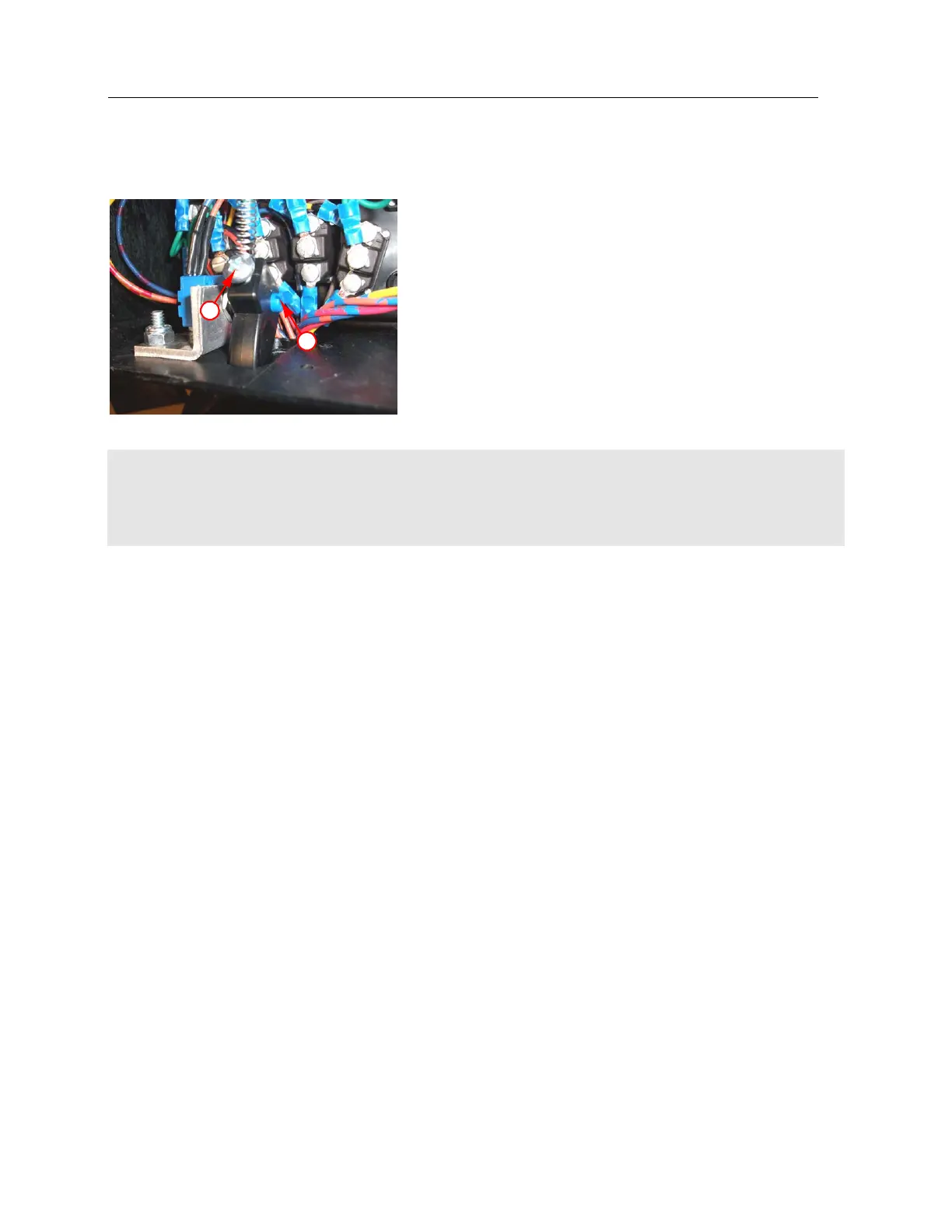

Tethered Proportional Remote Potentiometer Adjustment
B
A
NOTE:
ONLY use this procedure to set the low-end output on the remote handle assembly if crane
functions operate without pulling the proportional trigger.
You may need a second operator to help with steps 4 and 5.
1 Following proper crane and stabilizer set-up, with the PTO engaged and the truck running, move the crane from
the stowed position to a position off to the side of the truck. Unstow the winch cable hook and lower the winch
approx (6) six feet.
2 Remove the back cover of the remote control handle.
3 Loosen screw “A” slightly. (Note: Screw style may vary).
4 While holding “WINCH DOWN” function, very slowly, rotate screw “B” clockwise until all movement has stopped.
5 Release “WINCH DOWN” function.
6 Tighten screw “A”
7 Test by operating “WINCH DOWN”, “WINCH UP”, “ROTATE CCW”, and “ROTATE CW” without pulling the
trigger. If any of these functions move, repeat steps 2 through 6.
8 Replace control back cover and properly stow the crane and stabilizers.
