IMT 5525 Parts & Specifications

Chapter 4 Parts 45

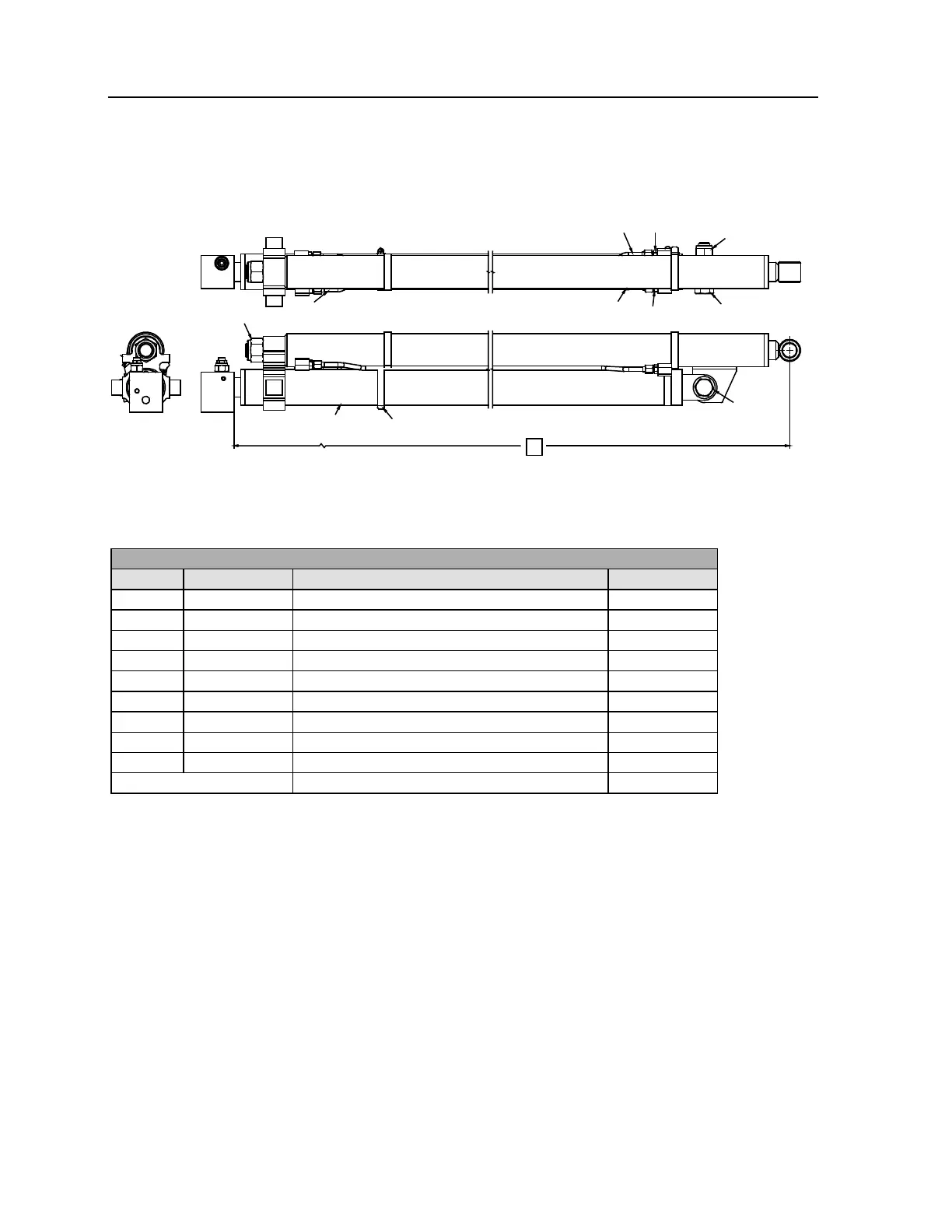

Cylinder Assembly, Extension (51721028)
6
9
1
3
3
3
8
8
7
4
5
1
NOTES (IF TIED TO DRAWING, SEE REFERENCE NUMBER IN
) :
1 CYLINDER CLOSED LENGTH 126.13"; OPEN LENGTH 276.12"; STROKE 150".
51721028 PARTS LIST
ITEM
PART #
DESCRIPTION
QUANTITY
1.
51718994
CYL- 2.75B X 1.75R X 78.0S 121.38 CC C
1
2.
51721029
CYL-2.5/1.7 72.00S 125.06CCC
1
3.
71411171
TUBE ASM- 105.3LG F-JIC/F-JIC 4 BEND
2
4.
72062245
NUT 1.25-12 HEX NYLOC
1
5.
72063010
WASHER 1.00 FLAT
2
6.
72532355
ADPTR-M STR/M JIC 6 6
4
7.
72661570
CLAMP-HOSE 4.5"
6
8.
60126151
PIN
1
9.
72066145
HAIR PIN .19 ZINC
2
REV. A 20070508

IMT 5525 Specifications

General

Brand	IMT
Model	5525
Category	Construction Equipment
Language	English
