IMT 5525

Chapter 4 Parts 75

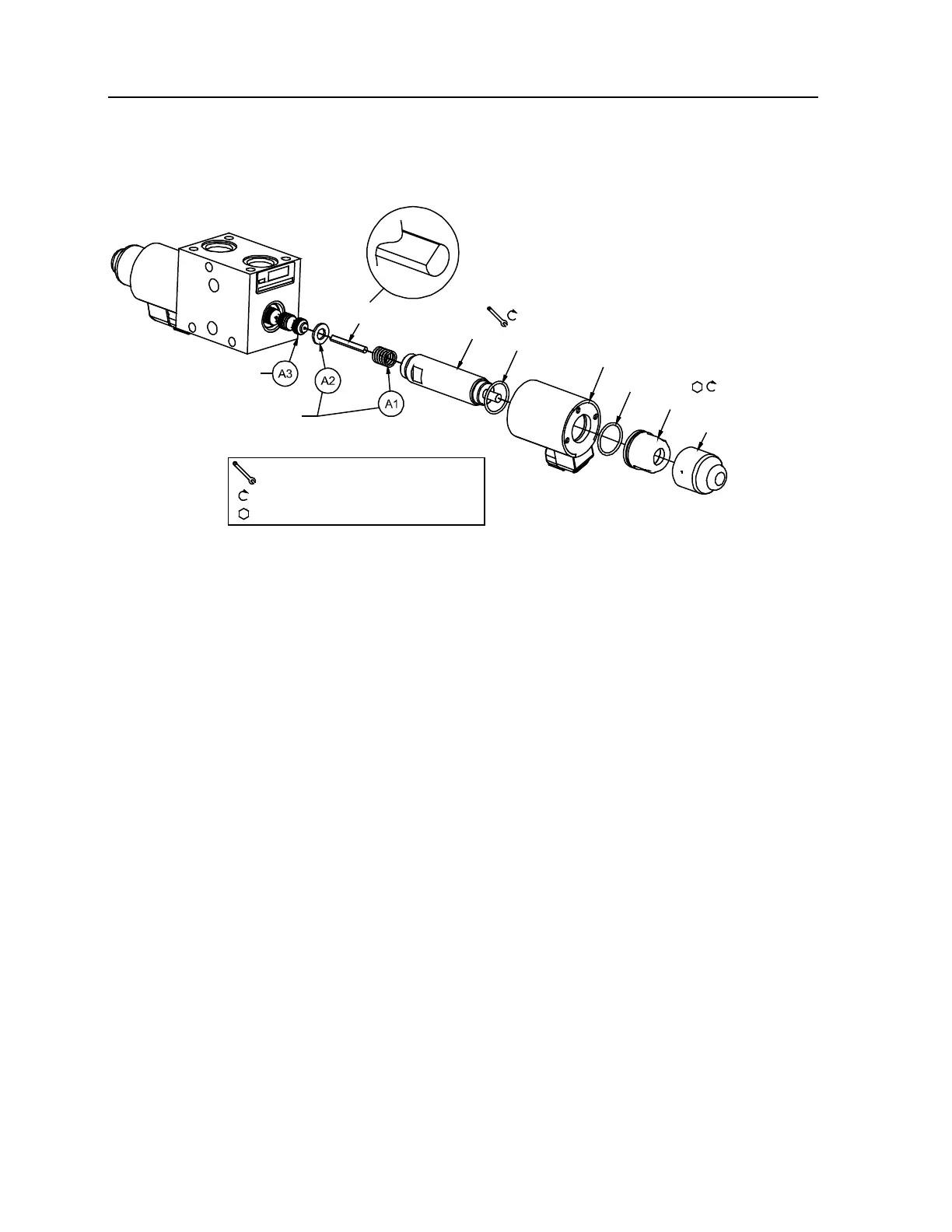

8 Kit 91722709 has components to repair both sides of the valve section. Repair each side
individually, but be sure to repair both sides before re-installing the valve on the crane.
DO NOT REMOVE
FROM BODY
DO NOT MISPLACE.
ITEMS TO BE RE-USED.
NOTE: REPLACEMENT
PUSHROD IS CYLINDRICAL WITH
FLAT SIDE, AND 1.382" LONG.
27 IN-LB
180 IN-LB
WRENCH
TIGHTENING TORQUE ± 10%
HEX HEAD
Valve Assembly
TUBE
COIL
O-RING
BOOT
RETAINER
PUSHROD
O-RING
