4. Connect Sensor cable to Pol Stow cable.

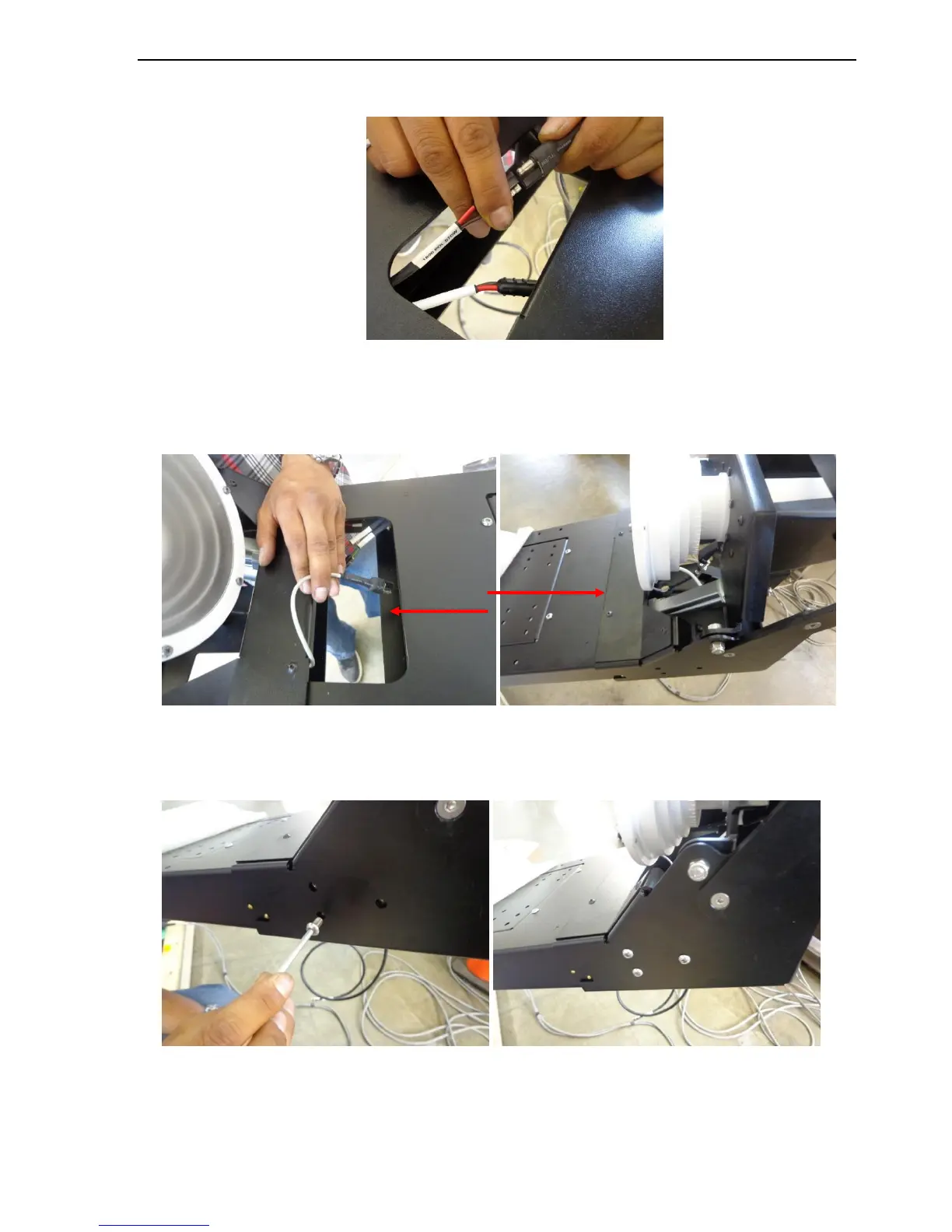

Fig. 49: Polarization Stow (Sensor) connection
5. Slide Pol Cage all the way down on the Feed Boom aligning the mounting screw holes.
Gap between the two sections will disappear.
Fig. 50: Gap between Pol Cage and Feed Arm
6. Fasten Pol Cage using specified screws and threadlocker.
Fig. 51: Fastening Pol Cage onto Feed Arm
