4.7 Installing BUC Using Universal Mounting Clamp Kit
This procedure describes the steps involved for installing a Block Up Converter (BUC) to the
iNetVu
®
Platforms using a Universal Mounting Clamp Kit. The installation procedure
described below shows images for a 2W BUC, but may be utilized for any sized BUC
installation.
Required Materials:
• iNetVu
®
Mobile Platform with mounting plate
• Universal Transmitter Mounting Clamp Kit
• BUC (Block Up Converter)
• #2 Phillips Screwdriver
• Allen Key Set
• Metal Cutting Shears
Procedure:
1. Place the foam protector onto the flat surface of the BUC (or the surface that is going
to be into contact with the feedarm) and cut the required length. The length of the
foam piece should be approximately the length of the BUC as depicted in fig. below.

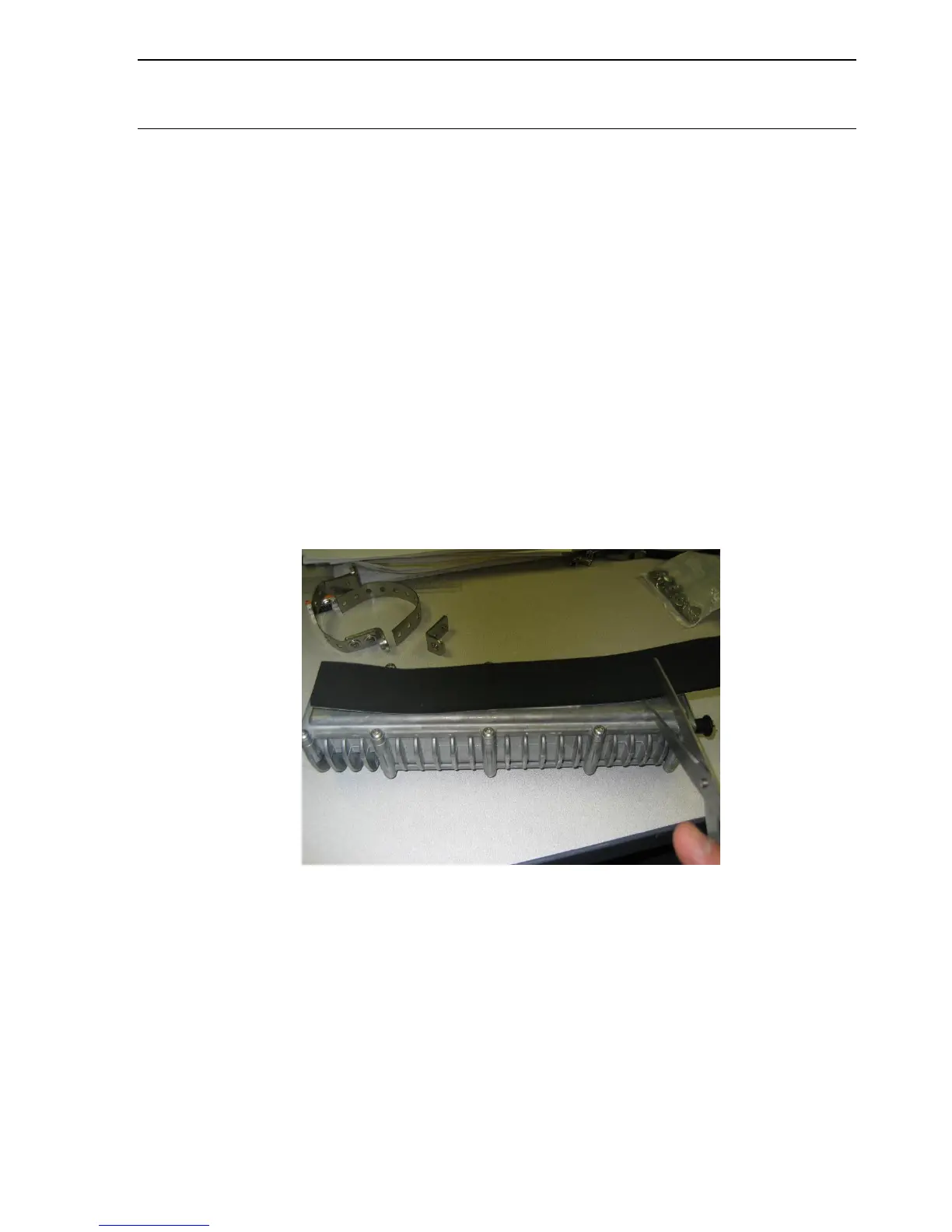

Fig. 56: Cutting length for adhesive foam sample
