iNetVu
®
Mobile Installation Manual Page 66 of 93
2. Expose the adhesive end of the foam piece, and apply to the side of the BUC that will
be making contact with the feed arm as shown in the pictures below.

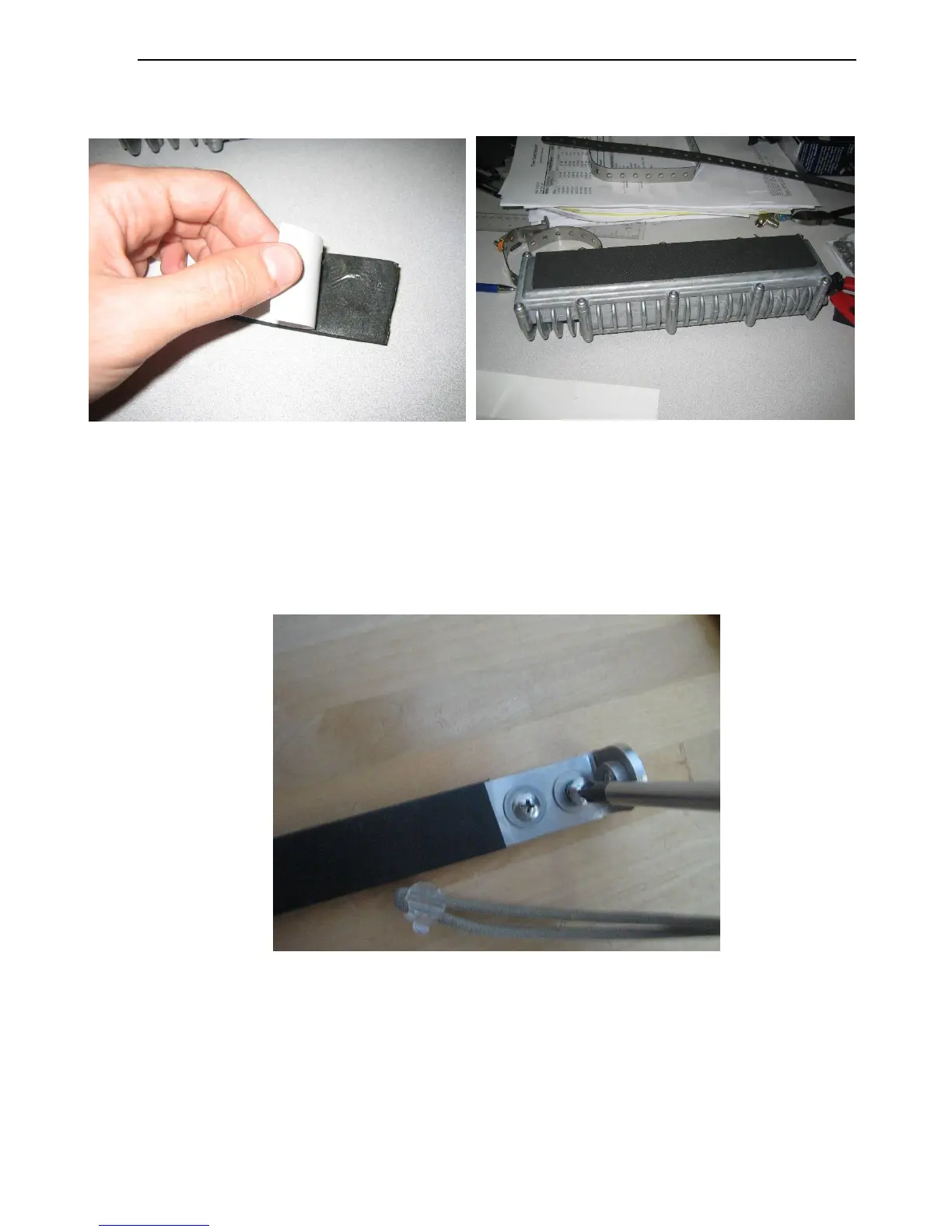

Fig. 57: Exposing adhesive and attaching to BUC
3. Place the flat end of the BUC (or the end that will lay flat against the feed arm)
downwards on your work surface.
4. Install one end fitting onto one side of the clamp strap using the provided truss
machine screws and washers as depicted in the pictures below.
Fig. 58: One Side End Fitting Installation
