iNetVu
®
Mobile Installation Manual Page 67 of 93
5. Place the side of the strap with the installed end fitting flat on the work surface and
wrap the strap firmly around the BUC (less the side in contact with the work surface).
Cut the strap such that the side without the end fitting installed on it is 0.25 to 0.5
inches away from the work surface as depicted in the pictures below. Ensure to make
the cut between two holes on the strap. The holes should be visible through the shrink
tubing.

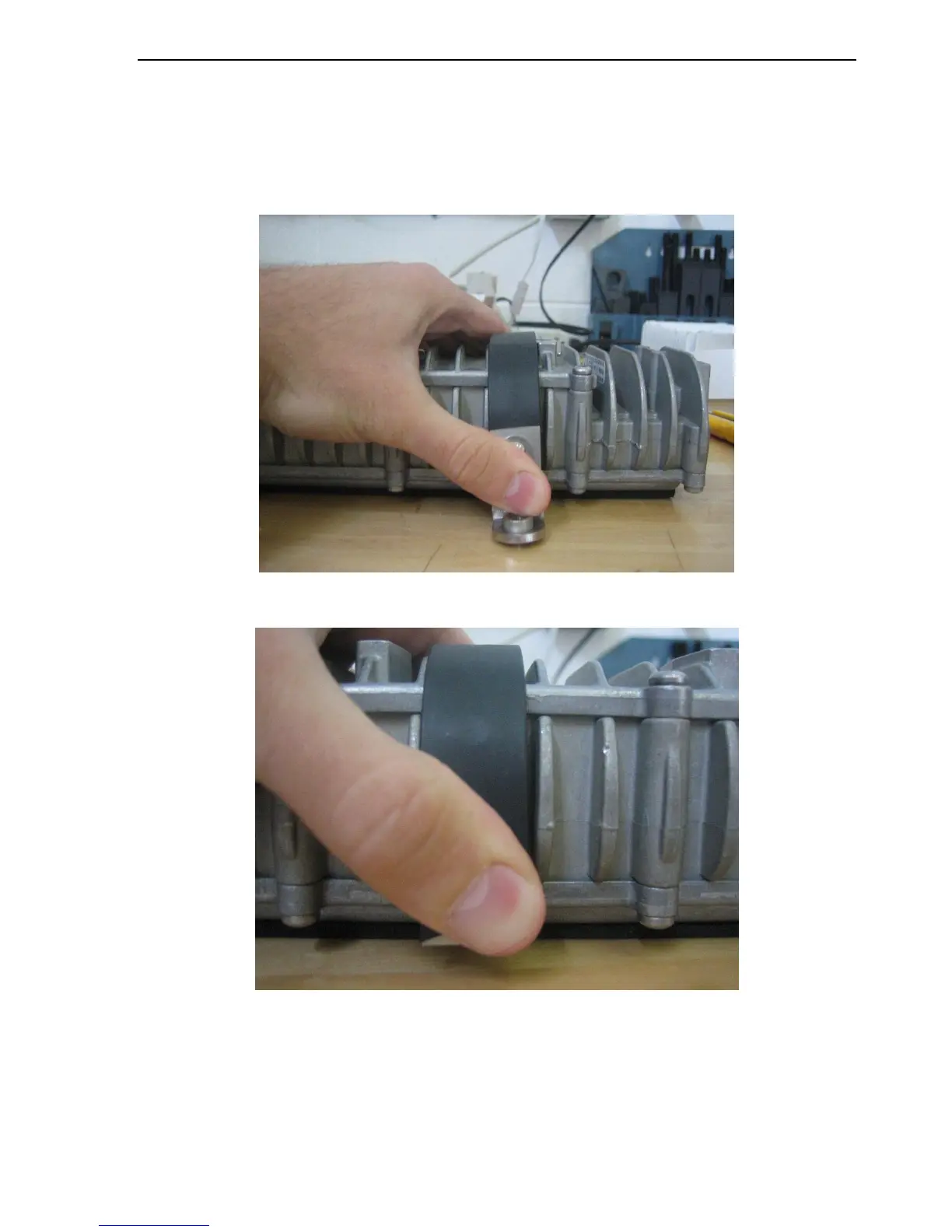

Fig. 59: Measuring length requirements for clamp strap
Fig. 60: Cutting the clamp strap - midpoint between two holes
