iNetVu
®
Mobile Installation Manual Page 68 of 93
6. Expose two holes from the end of the strap without the end fitting with a razor or sharp
edge and install the second end fitting as depicted in the pictures below. Both end
fitting installations are similar in orientation.

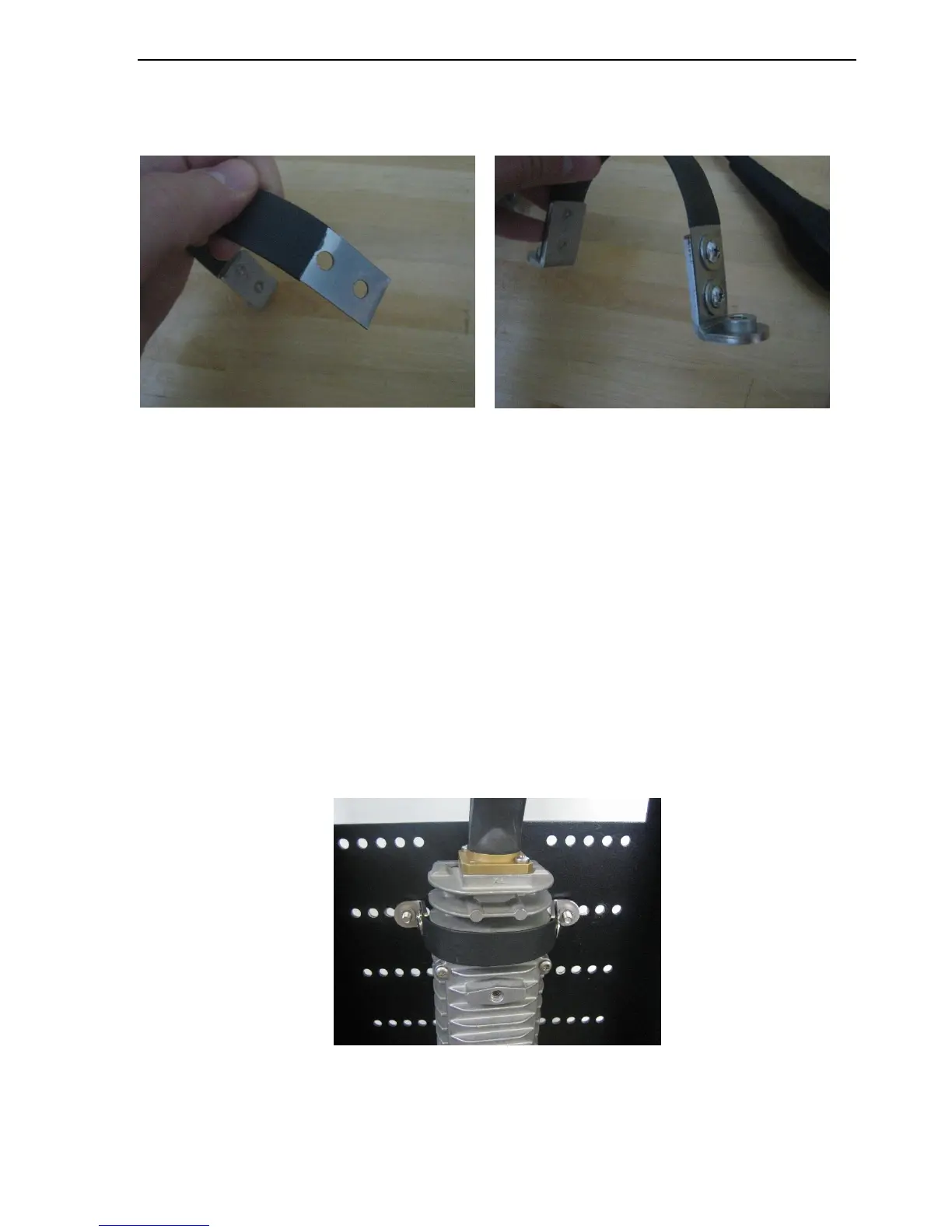

Fig. 61: End fittings installation
7. Place and secure the BUC on the underside of the Feed Arm.
When securing the BUC, adjust the placement of the screws and clamp strap to ensure
the following:
a. Leave enough space between the BUC and the Feed Arm Bar to ensure you
have enough space to attach the Flexible Waveguide to the BUC. Note: It may
be easier to Install the waveguide (if applicable) onto the BUC before
securing to the feed arm. See step 10 for details.
b. The long button cap screws of the Clamp Mounting Bracket Kit are fed through
the mounting plate on the feed arm and into the end fittings on each side of the
BUC as depicted in the pictures below. Ensure the provided lock and flat
washers are installed on the button cap screws. See note below for installing
strap on an angle if holes do not align.
Fig. 62: 2Watt BUC mounting
