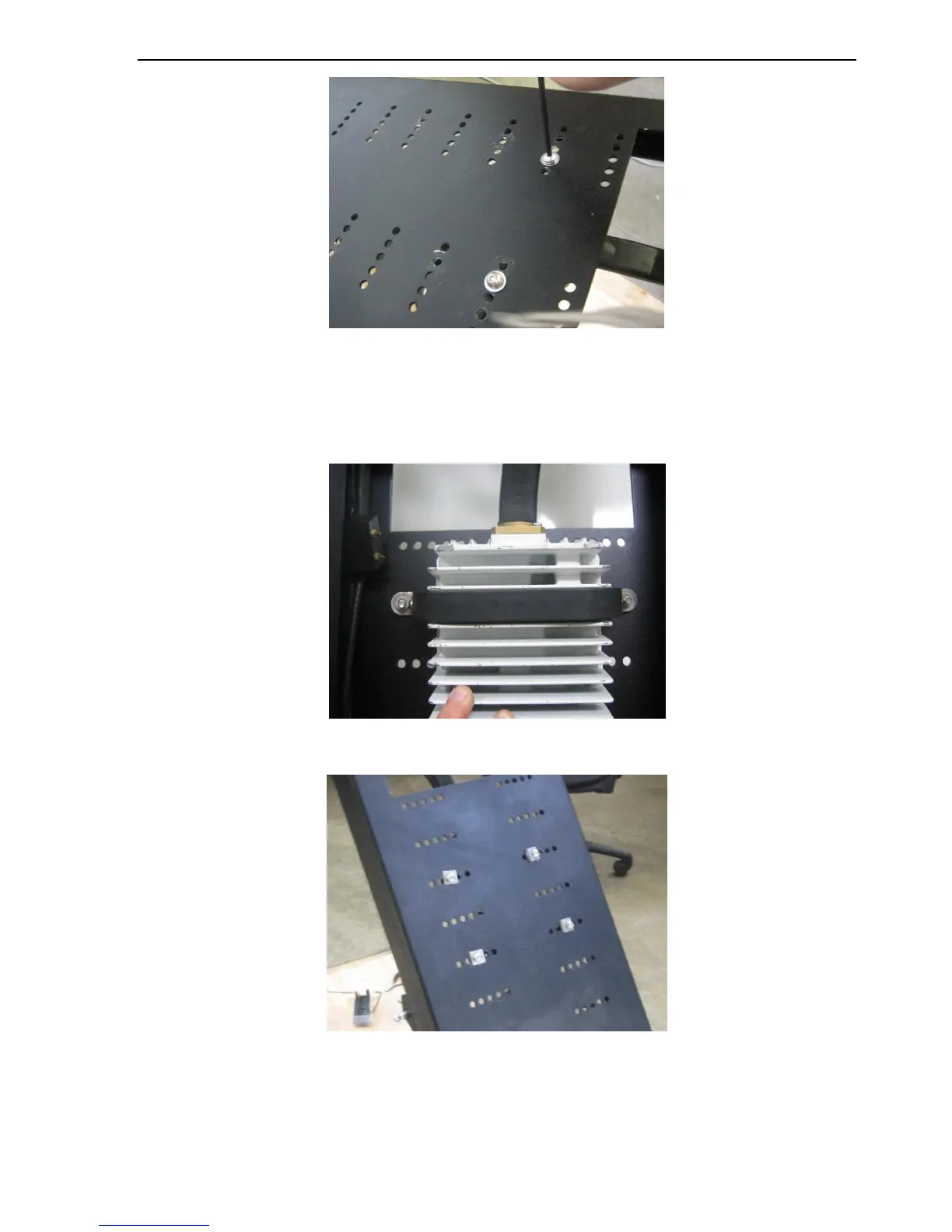

Fig. 63: 2 Watt BUC Mounting Top View – standard washers
Note: The Aluminum Square Beveled Washers provided could be utilized on the button cap
screws with the provided lock washers for installing the strap on an angle for BUC sizes that
don’t allow for direct mounting hole to end fitting alignment.
Fig. 64: Larger BUC mounting with beveled washers
Fig. 65: Beveled washers installed with lock washer on cap screw
