iNetVu
®
Mobile Installation Manual Page 77 of 93
4.11 Installing Flexible Waveguide onto A980 Mobile Platform
This procedure describes the steps involved for installing the flexible waveguide from the feed
horn to the BUC on an A980 Mobile Platform.
Caution:
Incorrect installation causes abrasion of the rubber waveguide while stowed, and forces the
waveguide to too tight of a bend.

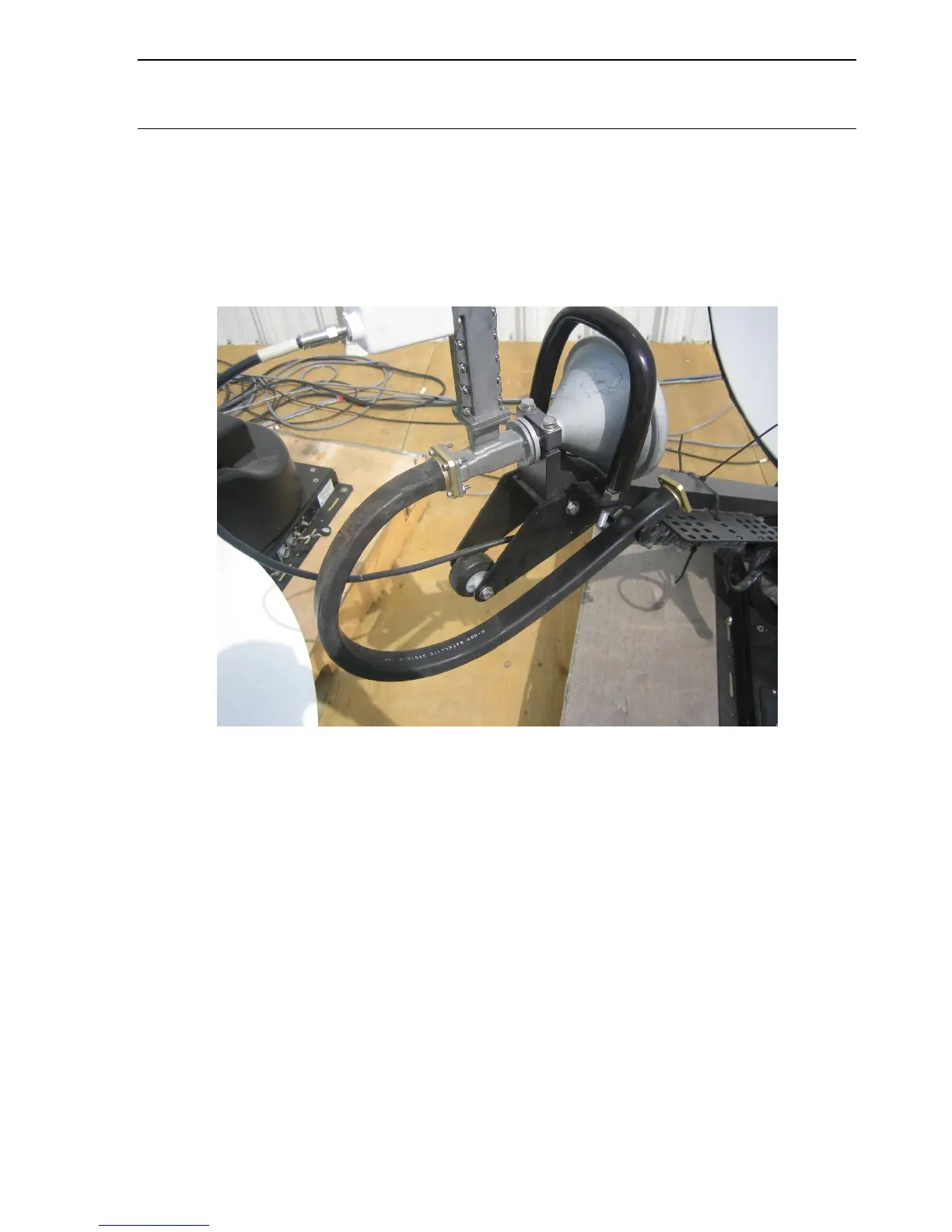

Incorrect Installation
