Procedure:
1. Connect the flexible waveguide to the OMT-TRF using the appropriate Allen Key.
Ensure the groove of the waveguide aligns with the groove of the OMT.
2. The waveguide should extend outwards from the OMT and loop UPWARDS then back
within the side waveguide support (J-clip under the Feedarm Roll Bar). The waveguide
should travel straight towards the connector flange on the BUC. Ensure the flex bend
diameter is a minimum of 6 inches.

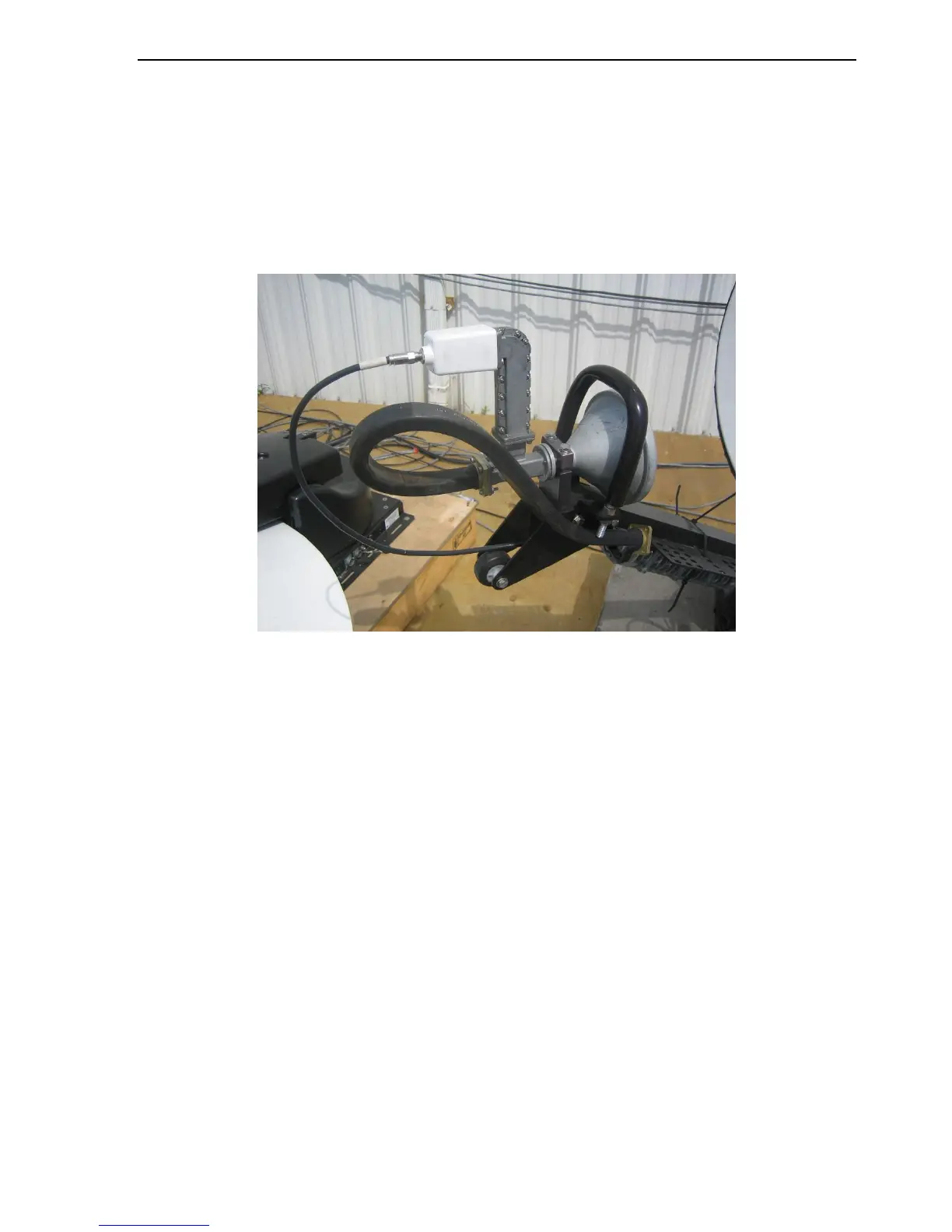

Correct Installation
3. Connect the waveguide to the BUC using the appropriate machine screws. Ensure the
groove of the waveguide aligns with the groove of the BUC.
4. Congratulations! The flexible waveguide has been successfully attached.
