4.4 Installing POL Feed Horn Assemblies to iNetVu® 1800 Mobile
Platform
The following outlines the steps required for installing the POL FEED HORN ASSEMBLY onto
the 1800 iNetVu™ Antenna System. There will be three (3) different Polarization Cages, Ku, C
Linear and C Circular. The installation will differ depending on the type of POL Feed Horn that
is required.
This procedure should be performed after the POL Assembly has been completed and before
performing the ATP tests; if any problems are observed, please contact C-Com Satellite
Systems Inc.
Required Materials:
• iNetVu
®
1800 Mobile Platform
• Phillips Screwdriver
• Allen Key(s)
• Loctite Threadlocker
Note: Loctite Threadlocker should be used on all fasteners were applicable without further
notice throughout the different types of Pol Feed Horn (Polarization Cages)
4.4.1 Ku POL Feed Polarization
1. Install Feed Horn Assembly on to the Pol Cage.

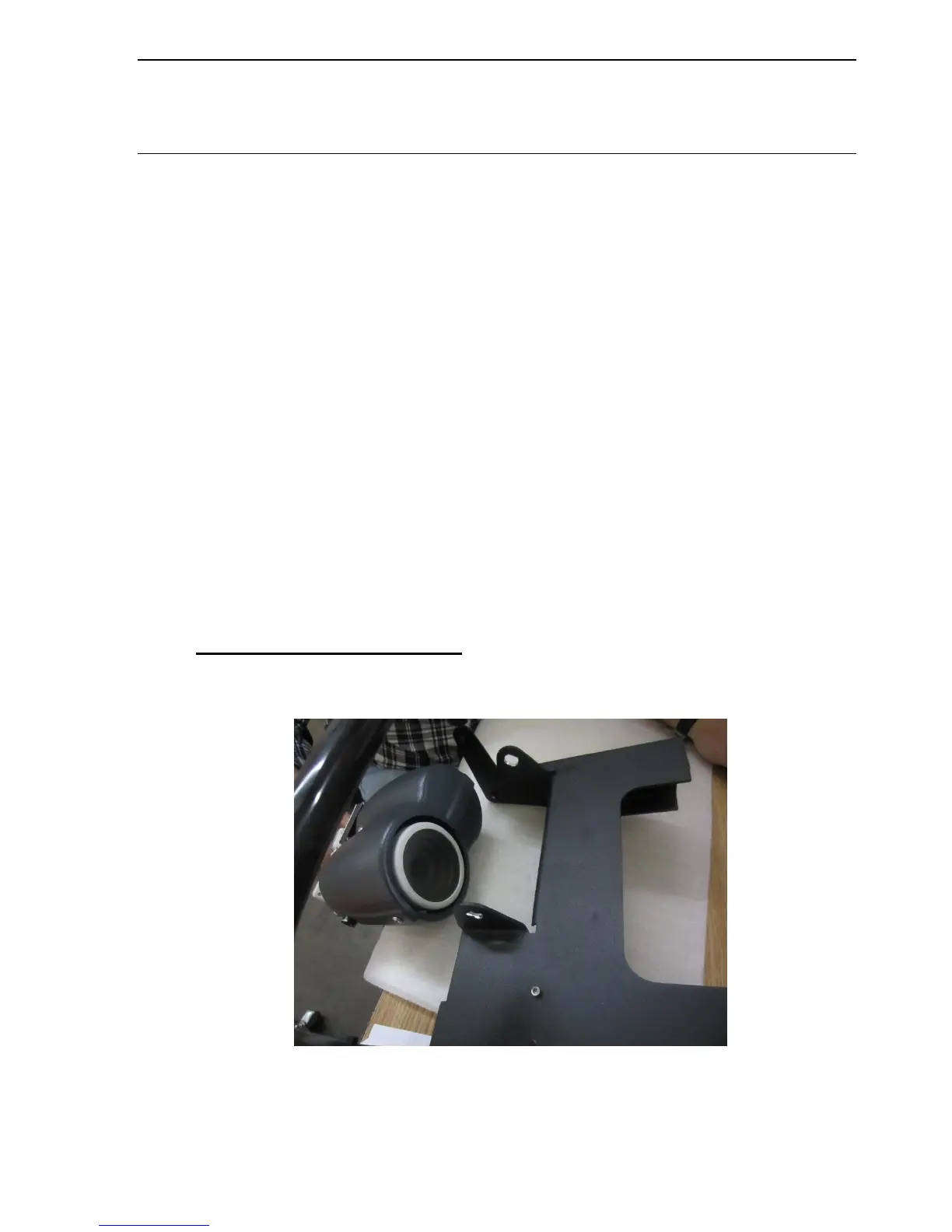

Fig. 42: Installing Feed Horn Assembly
