4.10 Attaching Feed Arm to iNetVu® 950 / 980 Reflector
This procedure describes the steps involved for installing the Feed Arm to the 0.95m / 0.98m
Reflector on an iNetVu™ 950 / 980 Mobile Platform.
Required Materials:
• 7/16” Wrench
Procedure:
1. Locate feed arm bracket on the reflector.
2. Thread the screw through the feed arm bracket and feed arm as shown in the figure
below. Ensure to have the rubber washer on both ends of the feedarm.

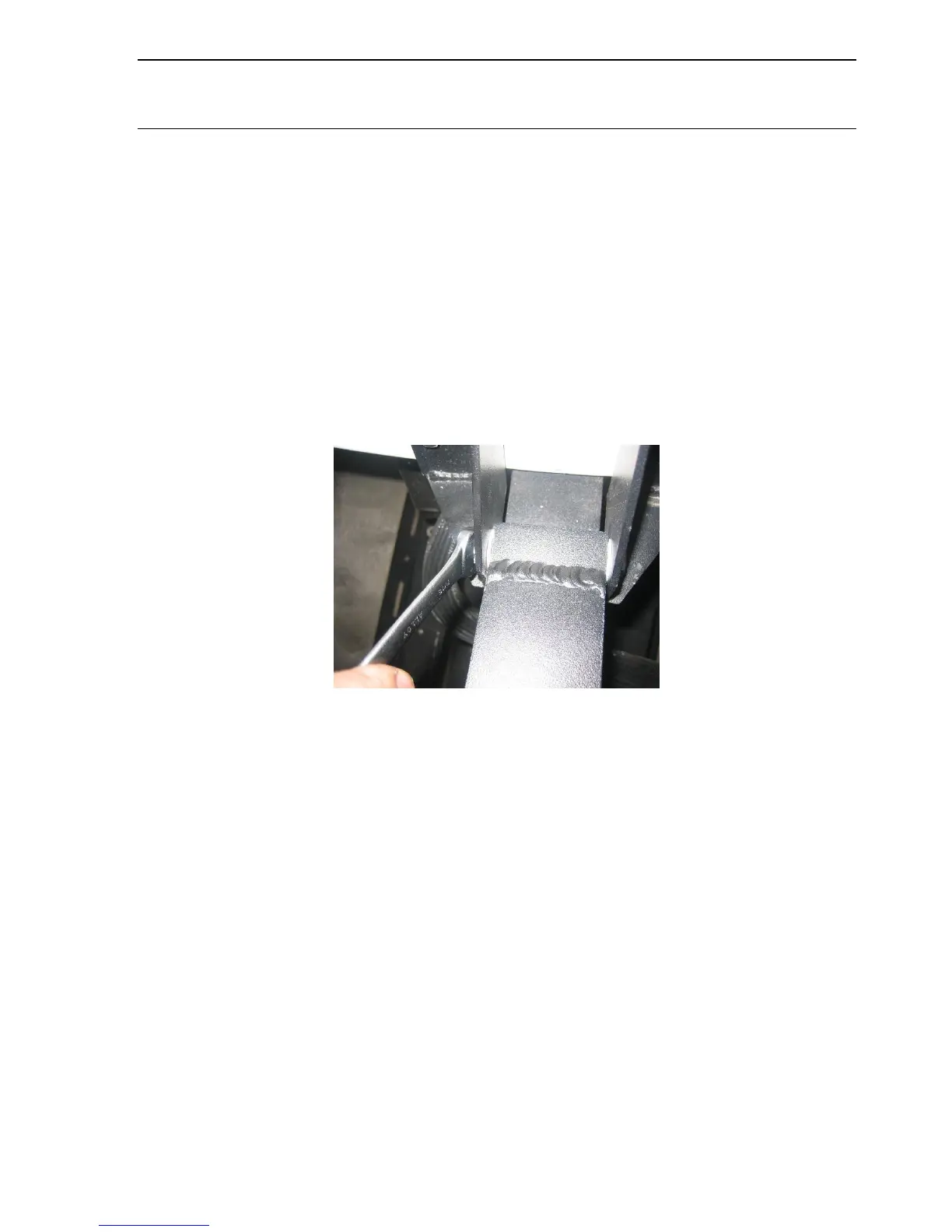

Fig. 70: Feed arm attached to feed arm bracket
3. Secure the feed arm by tightening the nut.
4. Congratulations! The feed arm has been successfully attached.
