8. Repeat the strap installation process with an extra clamp strap on the opposite end of
the BUC as depicted in the picture below. Remember that the beveled washers allow
for angular installation of the clamp strap if required.

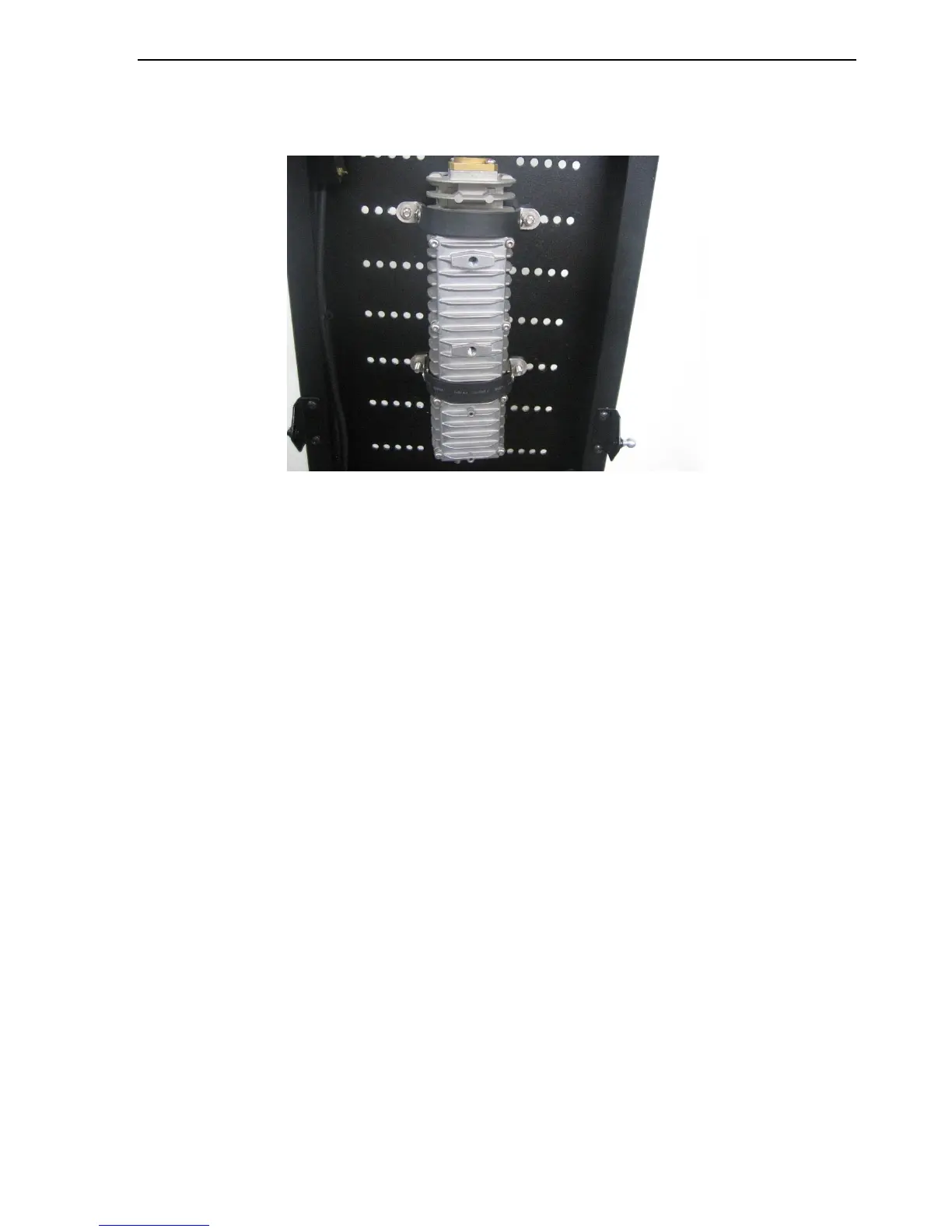

Fig. 66: Second mounting strap installed
9. Connect ‘Tx’ Coaxial cable to the BUC.
10. IF not already installed, connect the Flexible Waveguide to the BUC. Ensure that the
Flexible Waveguide flange is aligned with the BUC output. Also ensure the “O” ring is
in place on the BUC (if applicable). For the 1.2 meter systems, ensure the flexible
waveguide is tie wrapped down properly to the polarization cage such that the OMT is
capable of coming into contact with posts at both polarization mechanical extremes (-
90.0 and +90.0).
11. Congratulations! The BUC has been successfully installed.
