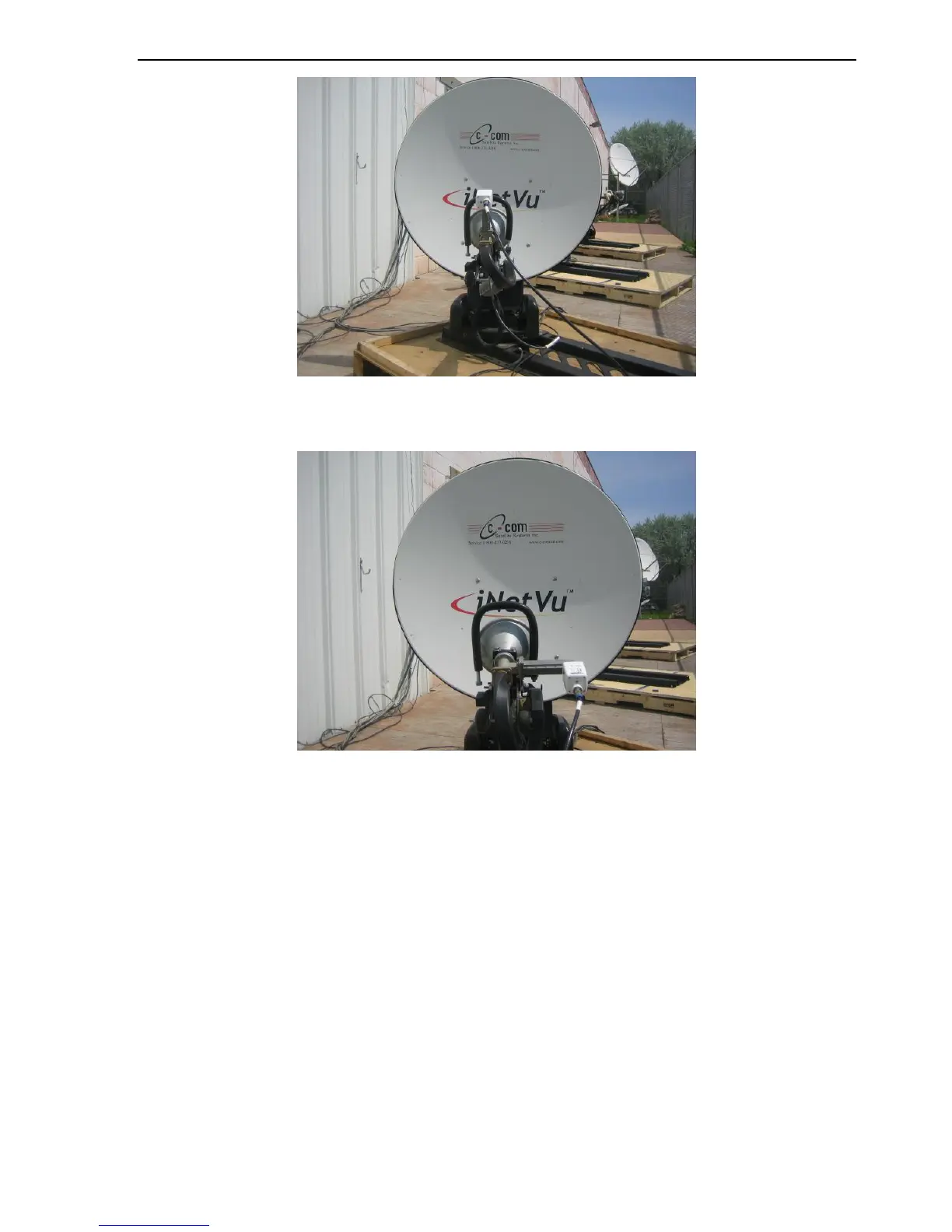

Fig. 68: Transmitter bracket orientation for Vertical Transmit/ Horizontal Receive
Fig. 69: Transmitter bracket orientation for Horizontal Transmit / Vertical Receive
4. Ensure the transmitter bracket is level.
5. Tighten transmitter bracket.
6. Congratulations! The transmit polarization has been successfully adjusted.
