g Rating plate
The rating plate contains the supply voltage specification and other information with
which the device can be clearly identified.

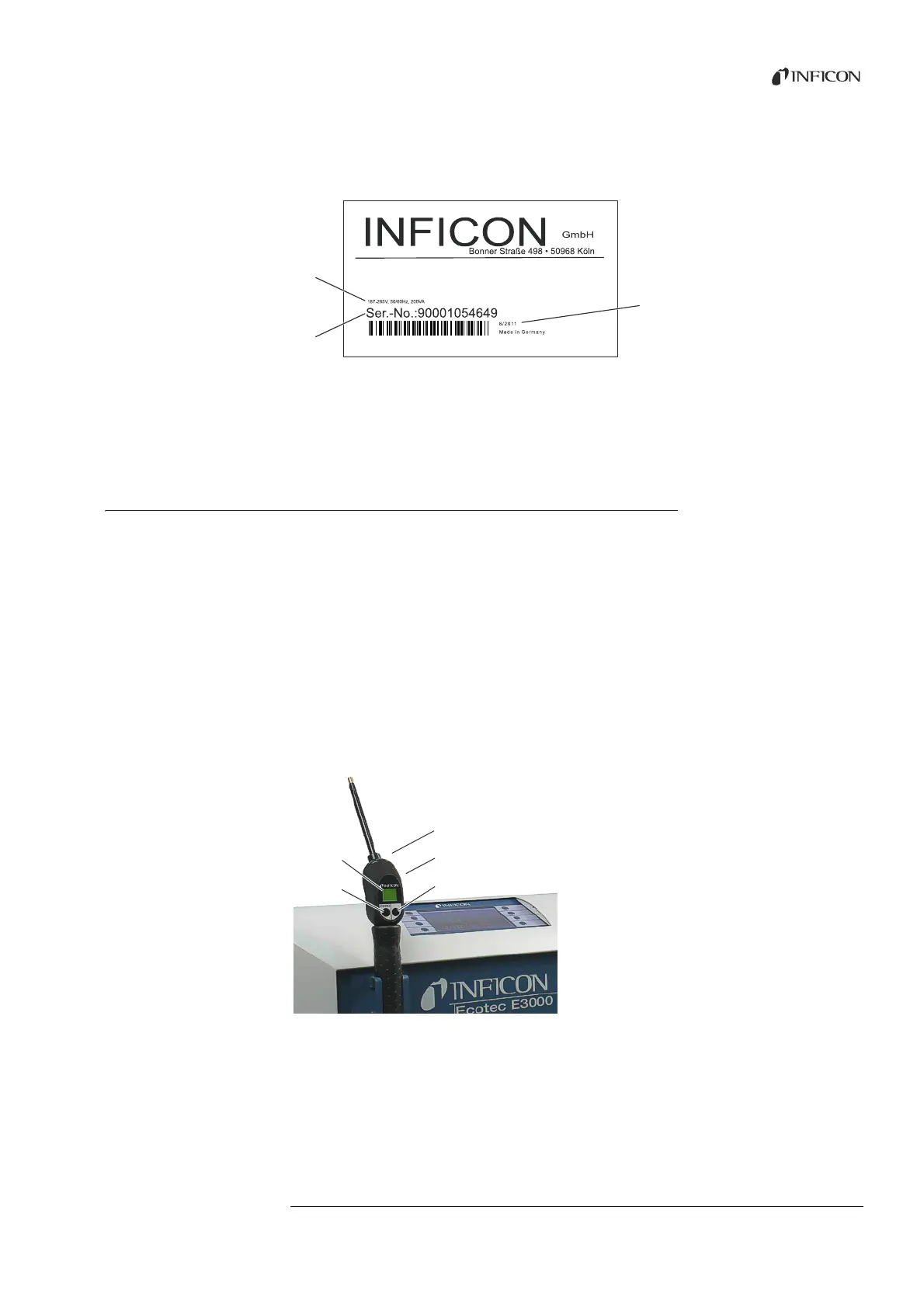

Fig. 3: Rating plate
a Supply voltage
b Serial number
c Production date
4.3 Sniffer line
You need a sniffer line to operate the device. Sniffer lines are available in four lengths: 3 m,
5 m, 10 m and 15 m.
The sniffer line is made of a flexible tube (multi-function cable), a handle with controls
(sniffer handle) and a sniffer probe.
There is a special sniffer line for robotic applications (see “10.1 Accessories”, page 77).
Sniffer probe There are rigid and flexible sniffer probes with different lengths.
Sniffer handle display
and functions
The display on the sniffer handle shows current information on the measuring process.
You can operate functions frequently used during measurement with both buttons.
LEDs inserted in the handle illuminate the test area.
Fig. 4: Handle: display and functions
90001054694
530-001 Ecotec E3000
a
b
c
a Display
b ZERO adjustment
c LEDs
d Speaker (on the rear)
e I•Guide operation
a
c
b
e
d
