5.2.2 Attaching the sniffer lines holder
A holder is available for the sniffer probe. The holder can be installed on the right or the
left of the device.

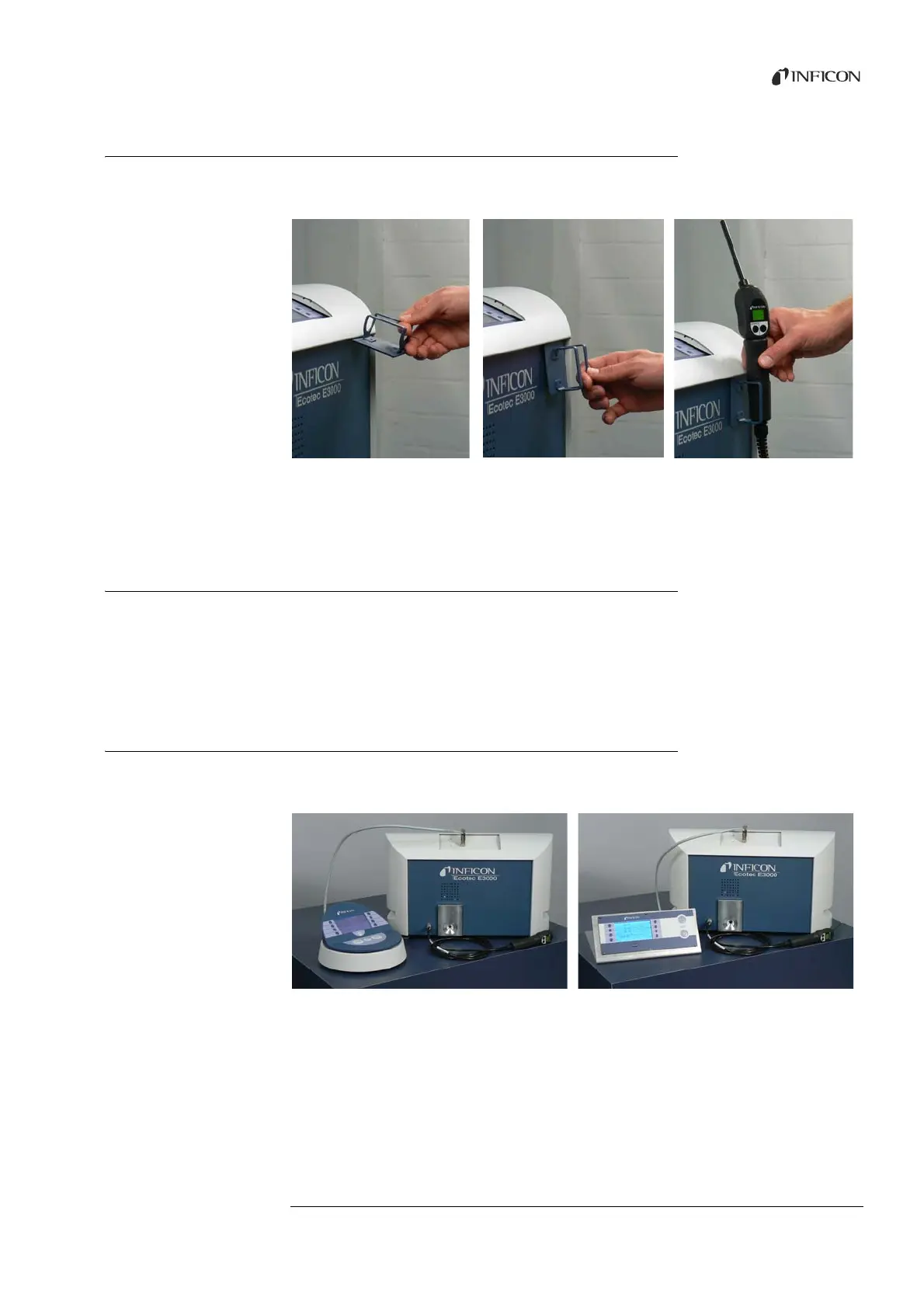

Fig. 9: Sniffer line holder mounting
The holder has two hooks that are inserted into two slits on the front panel of the device.
The holder is pulled to the front panel of the device with a magnet on its rear.
5.3 Connecting the ECO-Check calibrated leak
A built-in calibrated leak (ECO-Check) and different external calibrated leaks are available
as accessories available for the Ecotec E3000, see “10.1 Accessories”, page 77.
Please refer to the ECO-Check installation manual on how to connect the ECO-Check.
5.4 Connecting the external display unit to the Ecotec
E3000RC
Connect the external display unit and the Ecotec E3000RC with the appropriate
connecting cable. Secure the plug on the socket by tightening the screws.
Fig. 10: The Ecotec E3000RC with external display unit as a table device (left), for rack mounting (right)
