18 5Installation
Translation of the original operating instructions Ecotec E3000, kina22en1-19, 1507
The transport restraint is on the bottom of the Ecotec E3000 and consists of a yellow star
screw.

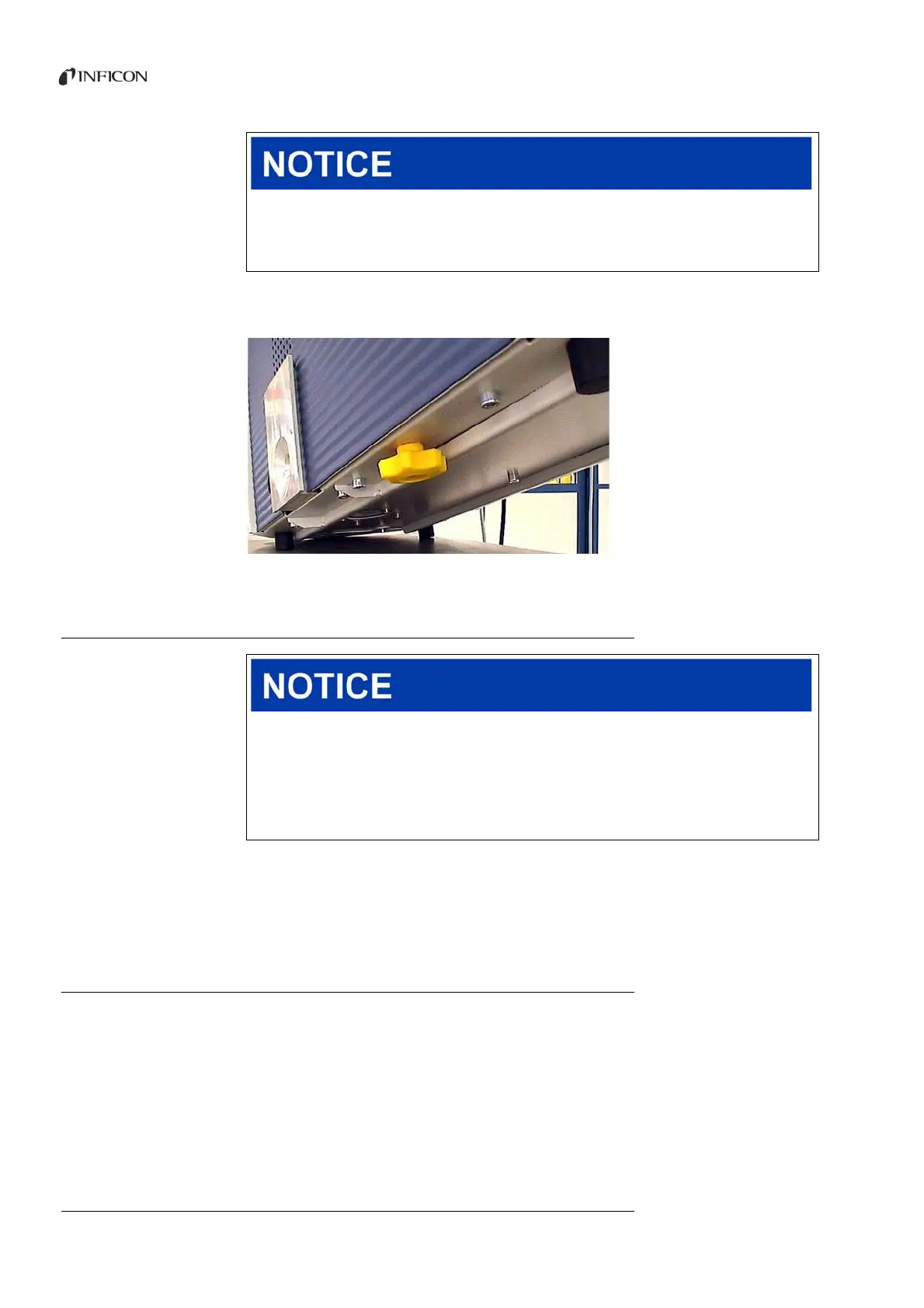

Fig. 5: Unscrew the yellow transport restraint before the start-up
5.2 Connecting the sniffer line
Align the red marking on the sniffer line plug with the red marking on the socket. Push the
sniffer line plug into the socket on the device until it locks into place.
Pull the grooved ring on the plug to release it. The ring opens the lock and you can pull out
the plug.
5.2.1 Replacing the capillary filter of the sniffer probe
The metal capillary filter is the standard filter. With the plastic capillary filter there is less
danger of scratching the surfaces to be sniffed. The water conservation tip is used if there
is a danger of suctioning in liquids.
Material damage due to transport restraint that has not been removed
The transport restraint blocks the mechanical system in the device.
► Remove the transport restraint before the start-up.
Material damage due to a missing sniffer line
The device must not be operated without a connected sniffer line in order to avoid
overpressure in pump and measurement system.
► Connect the sniffer line before you start up the device.
► Do not replace the sniffer line while the device is in operation.
