6Operation 23
Translation of the original operating instructions Ecotec E3000, kina22en1-19, 1507
6Operation
6.1 Start-up
Connect a sniffer line and switch on the device with the mains plug.
The Ecotec E3000 starts a self-test lasting several minutes. The display shows the headline
“Running up” and the individual steps of the self-test.

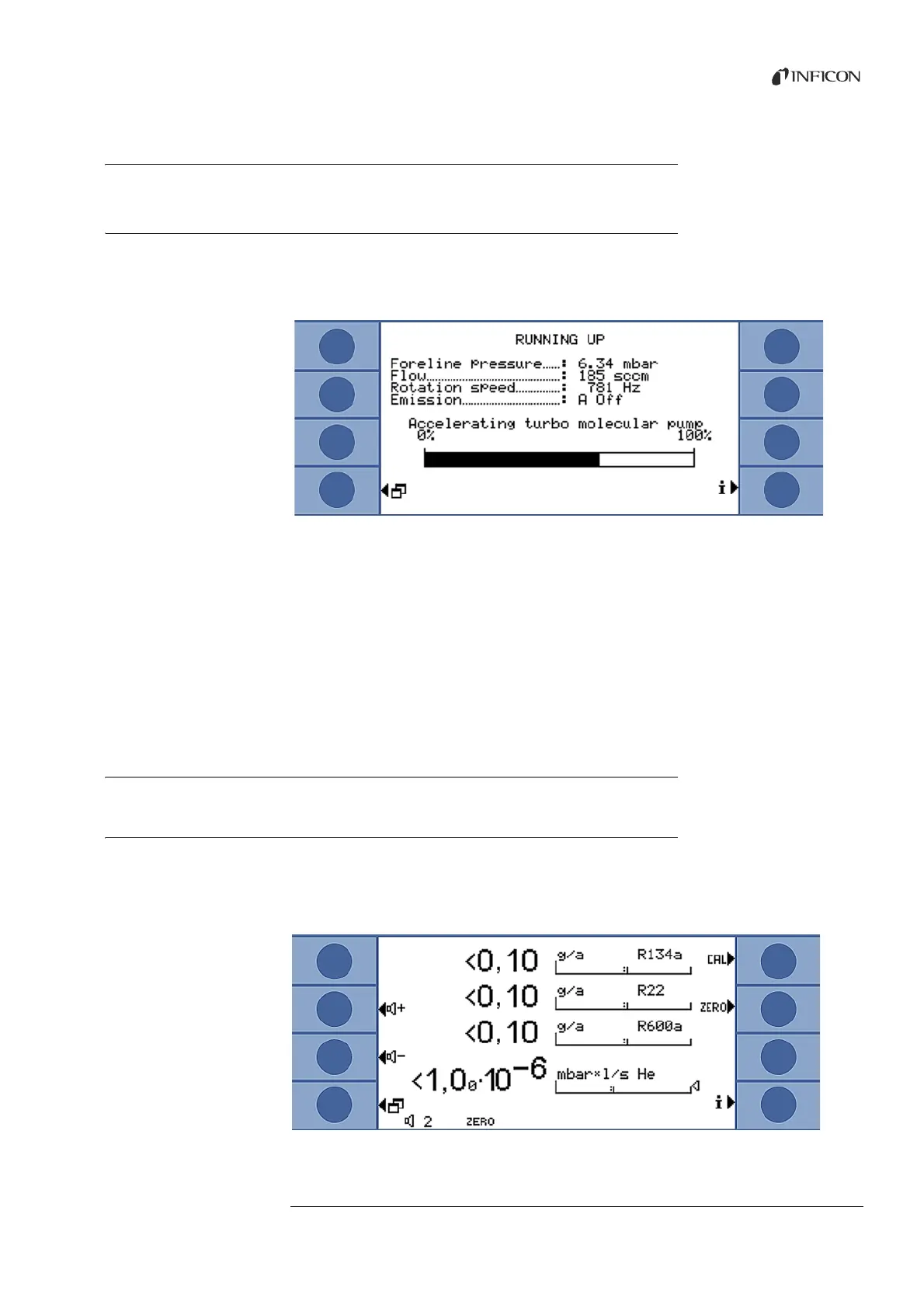

Fig. 11: The device runs up
After running up, the Ecotec E3000 already measures the gas concentration in the
environment. There is no separate start function. But you have to still calibrate the device
and make different settings for your intended measurement.
If the ECO-Check calibrated leak is not in the Ecotec E3000, an acoustic warning signal and
the warning 71 are output during the first start-up.
To stop the alarm quickly, press the key on the bottom right (labeled “OK“). If you are
working without the ECO-Check, you should deactivate the alarm permanently, see “ECO-
Check”, page 34.
6.2 Operating the device
6.2.1 Display and keys
All settings are made with the eight keys to the left and the right of the display. The
function allocations of the keys change depending on the current operating step. The
function allocation is shown directly next to the key which allows fast and purposeful
operation after a short learning period.
Fig. 12: Start display after the self-test
