Inficon Ecotec E3000 Original Operating Instructions

70 8 Maintenance
Translation of the original operating instructions Ecotec E3000, kina22en1-19, 1507

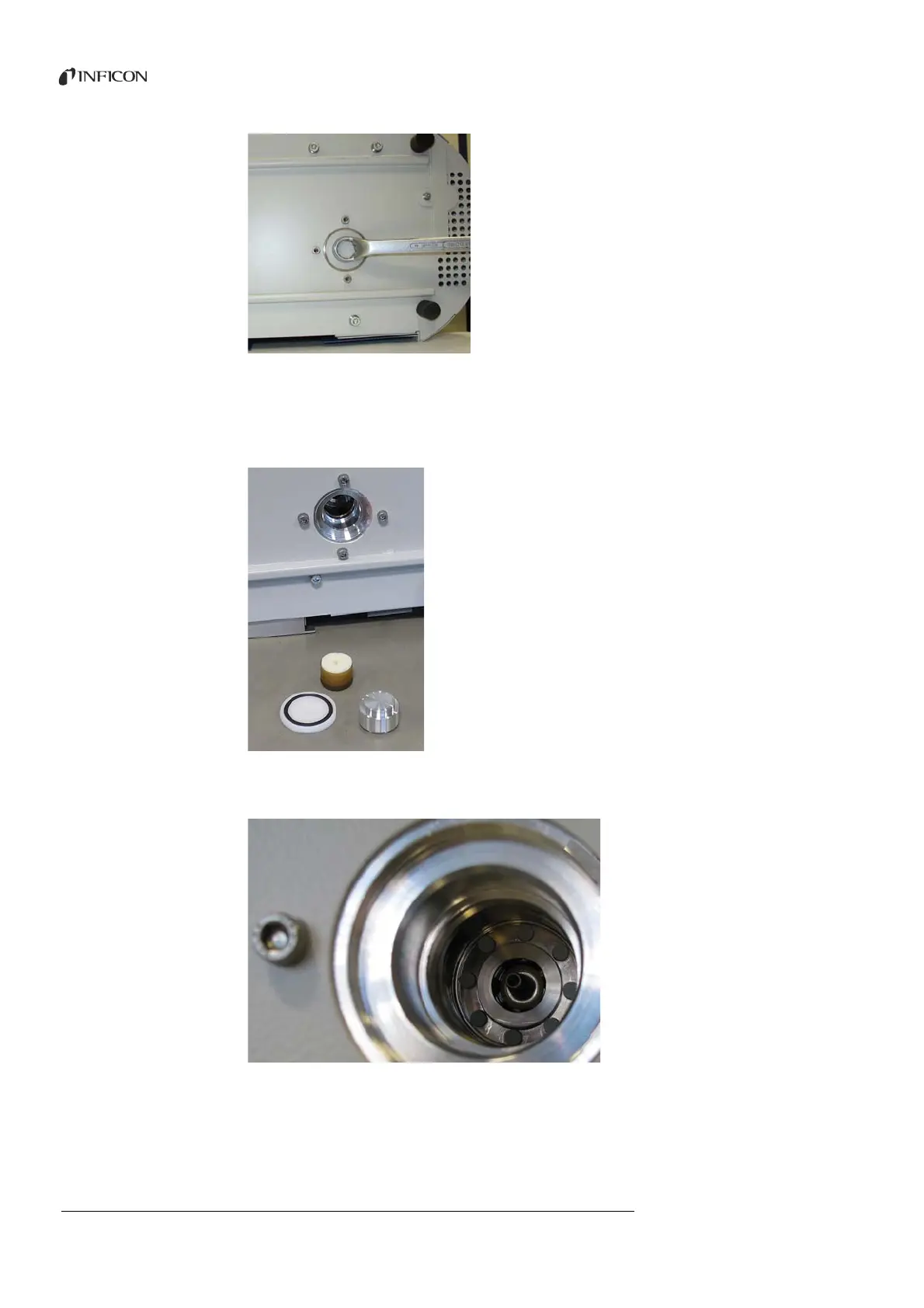

Fig. 48: Fastener of the operating fluid reservoir
4 Lever out the aluminum plug with one or two narrow screw drivers.
5 Hook something into the center bore of the plastic container and pull out the plastic
container.
Fig. 49: Opened operating fluid reservoir
6 Pull the eight Porex rods out of the front side of the bore with tweezers.
Fig. 50: Porex rods of the operating fluid reservoir
7 Insert the new Porex rods with tweezers.
