B.6.2 Addressing ARGUS detectors using a VPU

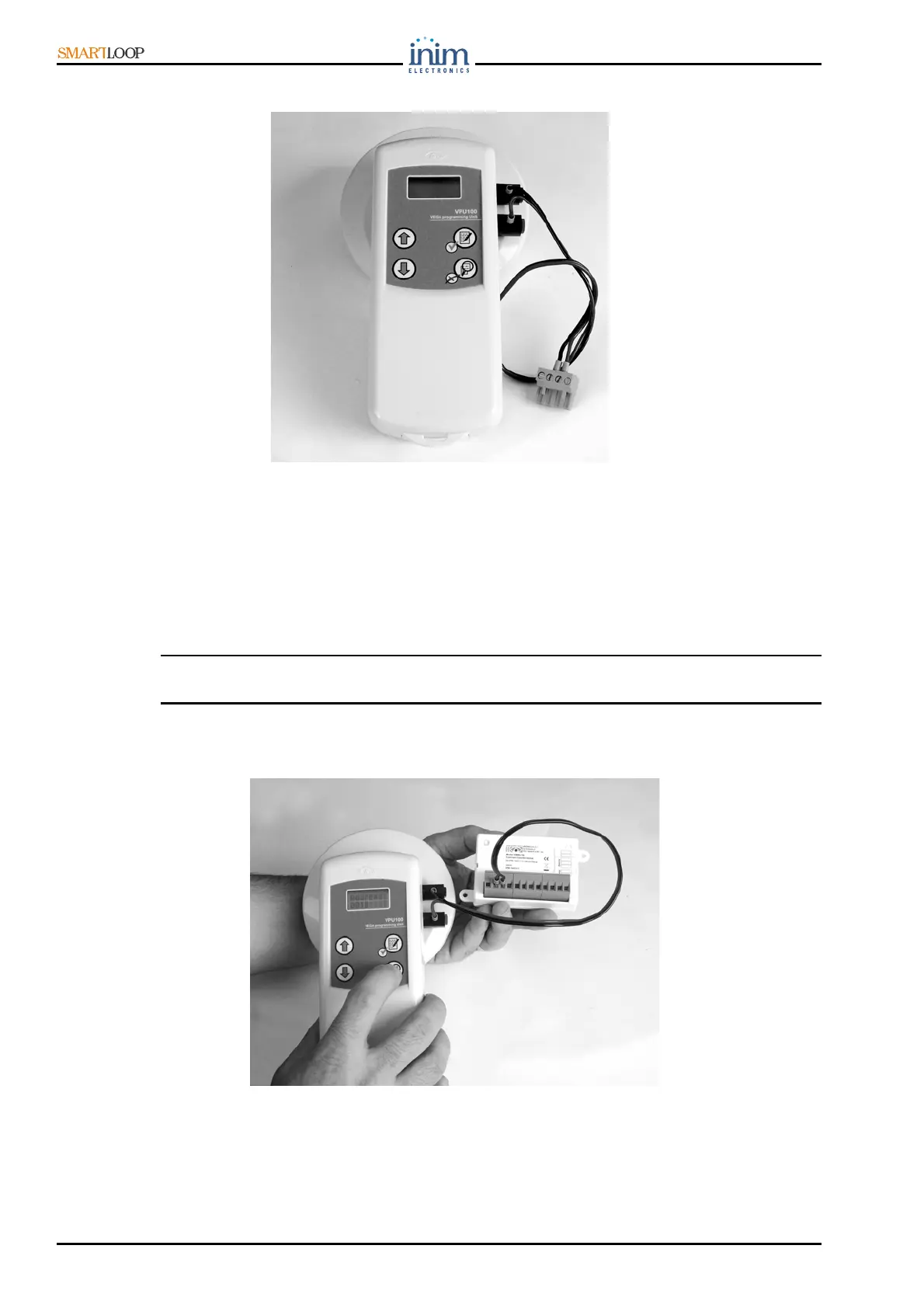

Figure 48 - Keypad side of the VPU100 (Vega Programming Unit)
Work carefully through the following steps:
1. Remove the detector from its base (twist off).
2. Fit the detector into the VPU (twist on).
3. Press any button on the VPU to switch On the unit.
4. Using the UP/DOWN scroll buttons, select an address (
1-240) then press the WRITE button (top left)
to confirm the selection.
Note: Two hundred and forty addresses are available. Address entry errors can be corrected by simply
readdressing the device (deletion not required).
5. Remove the detector from the VPU and fit it to its placement.
B.6.3 Addressing ARGUS modules using a VPU
Figure 49 - Addressing modules using a VPU100
Work carefully through the following steps:
1. Extract terminals 1- 4 from the module.
2. Connect the VPU cable to the module, positive to terminal 1 and negative to terminal 3.
