4.4 Wash Nozzle
When the nozzle is blocked, manual cleaning is required for the function. The operation
procedures are as follows:
1. Press INK SYSTEM ，select and perform F) Wash Nozzle program.

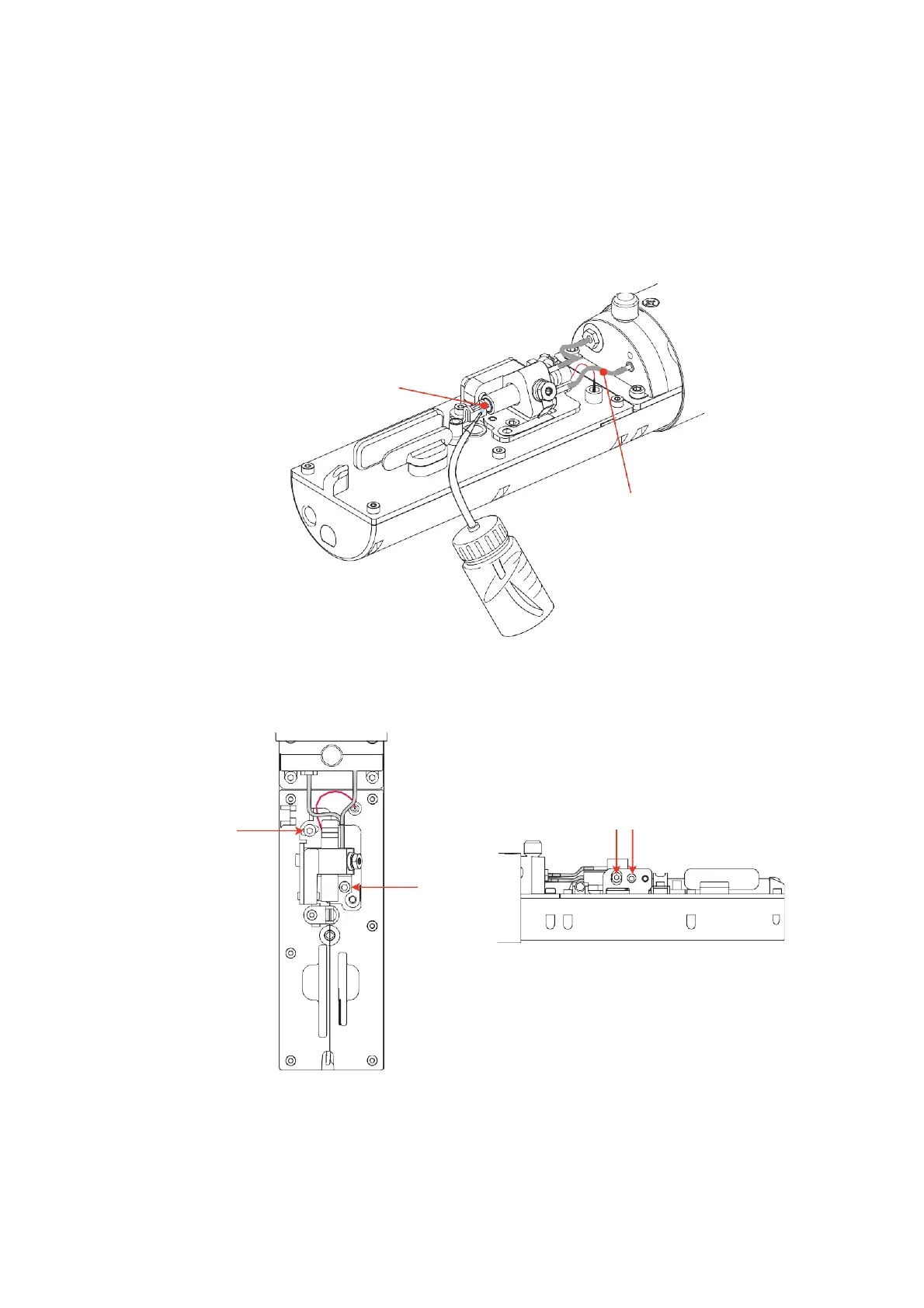

2. After the program is started, manually clean the position shown in the following figure
with cleaning agent.
USE CLEANING AGENT TO
CLEAN THE (NOZZLE) POSITION.
THE TUBING HERE WILL HAVE
AIR AND FUILDS FLOW DURING
THE FLUSHING PROCESS
4.5 Ink Jet Alignment
A
C D
B
Horizontal alignment : Slightly loosen the screw “A” and rotate the screw “B” slightly ,then
the jet stream can be horizontal moved.
Vertical alignment : Loosen the screw “C” and rotate the screw “D” slightly ,then the jet
stream can be vertical moved.
