4.3 Machine Mounting
4.3.1 Machine Mounting

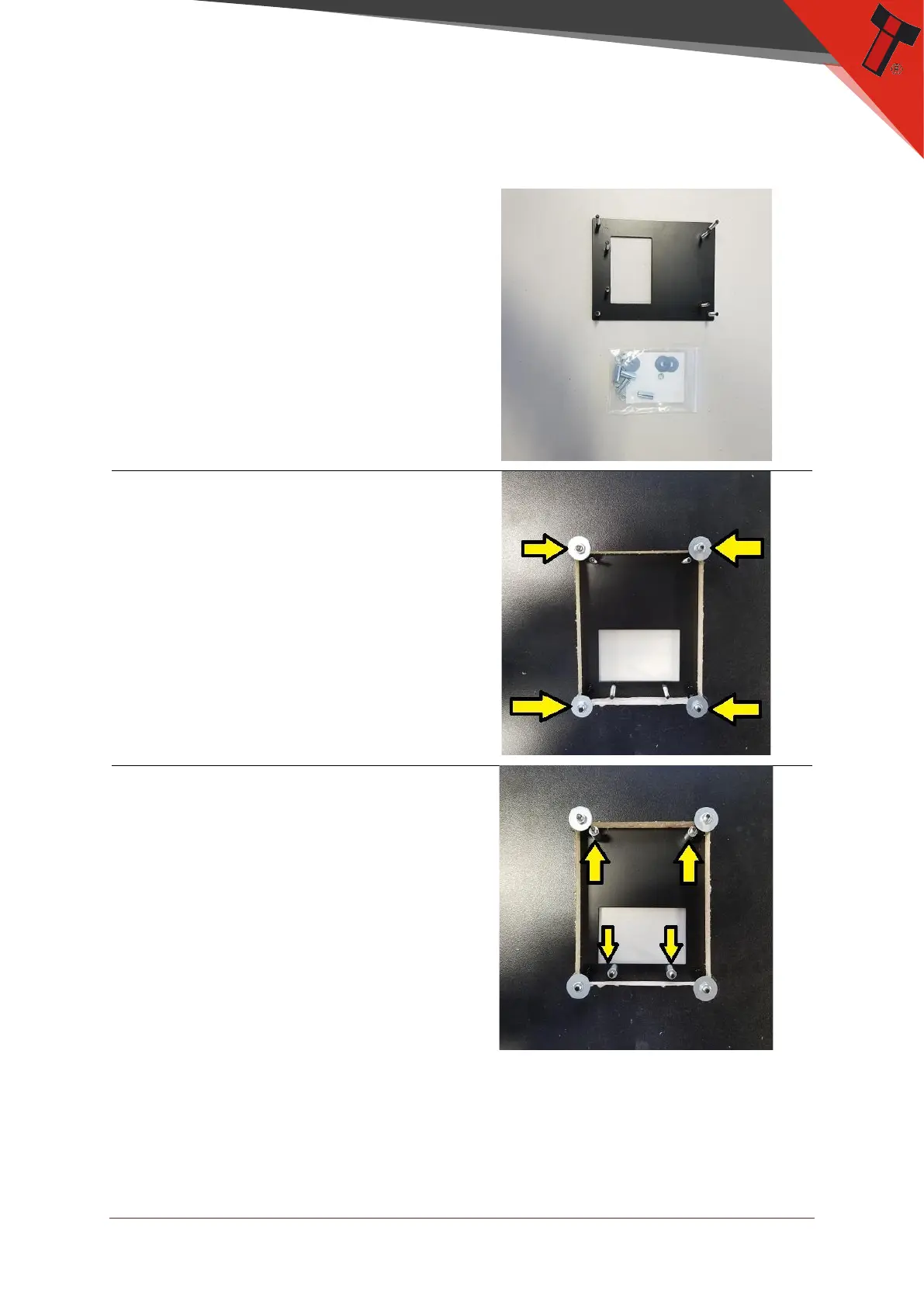

1. Mounting Plate
Un-package your mounting plate
and make sure you have the
hardware kit with the mounting
plate. Included in the kit is
4xLarge washer, 4x small
washer, 4x spacer, 4x 7mm
washer, 4x 8mm washer, and
accepted currency sticker.
2. Mounting Plate to Door
Slid the mounting plate flush to
the door. Place the four large
washers over the outer bolts and
use the four 8mm washers to
secure the mounting plate.
3. Spacers
Remove the four spacers from
the bag and place them over the
four inner bolts as shown.
