6.4 SIO and SI2
6.4.1 General Description
SIO (Serial Input/Output) is a very basic and low-level serial communication
interface. Messages are not echoed back. SIO uses 300 baud whereby SI2 uses
9600 baud. Please contact support@innovative-technology.com for SIO Interface
Specification or other details.
Caution!
SIO and SI2 are outmoded and not
recommended for new
developments!
Caution!
Innovative Technology Ltd.
provides full SDK packages
including Interface Specification,
Implementation Guide as well as
source code examples for SSP
respectively eSSP only!

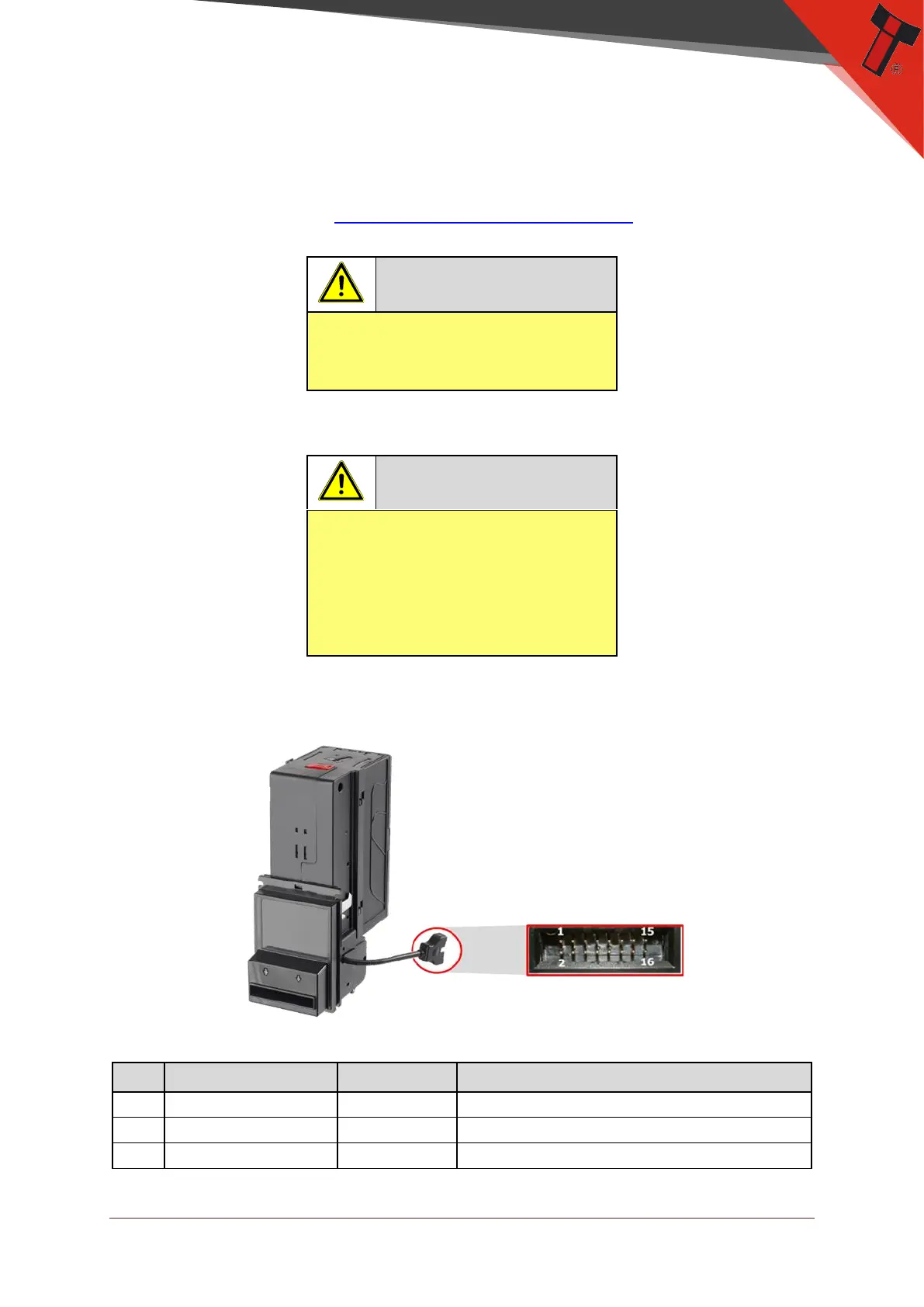

6.4.2 Pin Assignments
Pin
Name
Type
Description
1
Vend 1
Output
Serial Data Out (Tx)
15
+ Vin
Power
+12V DC Supply
16
0V
Power
0V Supply (GND)
