Caution!
+12VDC and 0V (GND) must
always be connected, also when
using USB connections.
6.2.3 Setup Examples

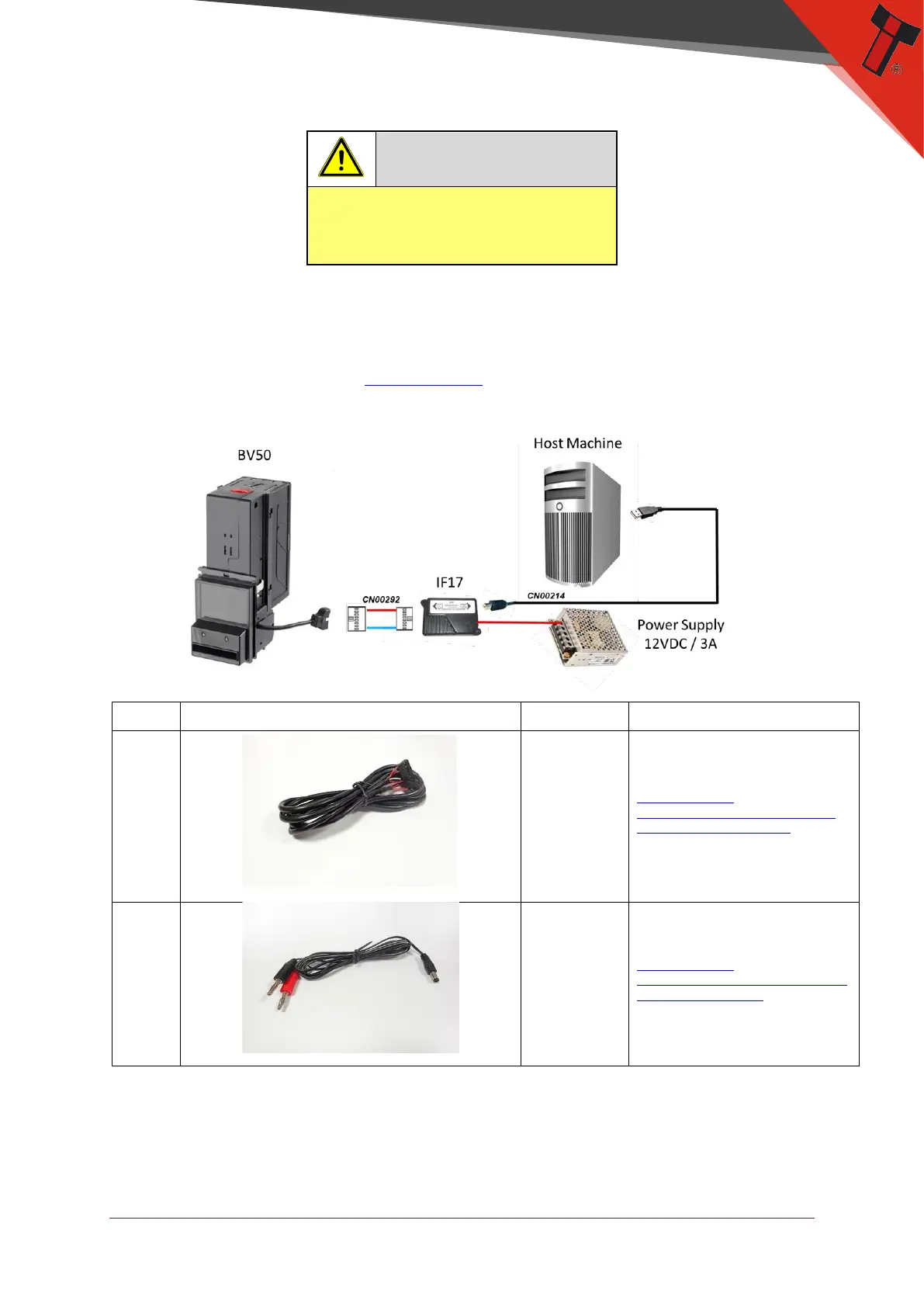

The drawings below highlights how to connect the BV50 to an SSP or eSSP host
machine using available cables and interfaces from Innovative Technology Ltd. For
cable drawings please refer to Appendix 11.1.
Type
ITL Part Number
Description
Details
Cable
CN00292
SSP Cable
http://innovative-
technology.com/shop/cables/ssp-to-
binary-interface-cable-detail
Cable
CN00345
IF17 Power
Cable
http://innovative-
technology.com/shop/cables/da3-if17-
if18-power-cable-detail
